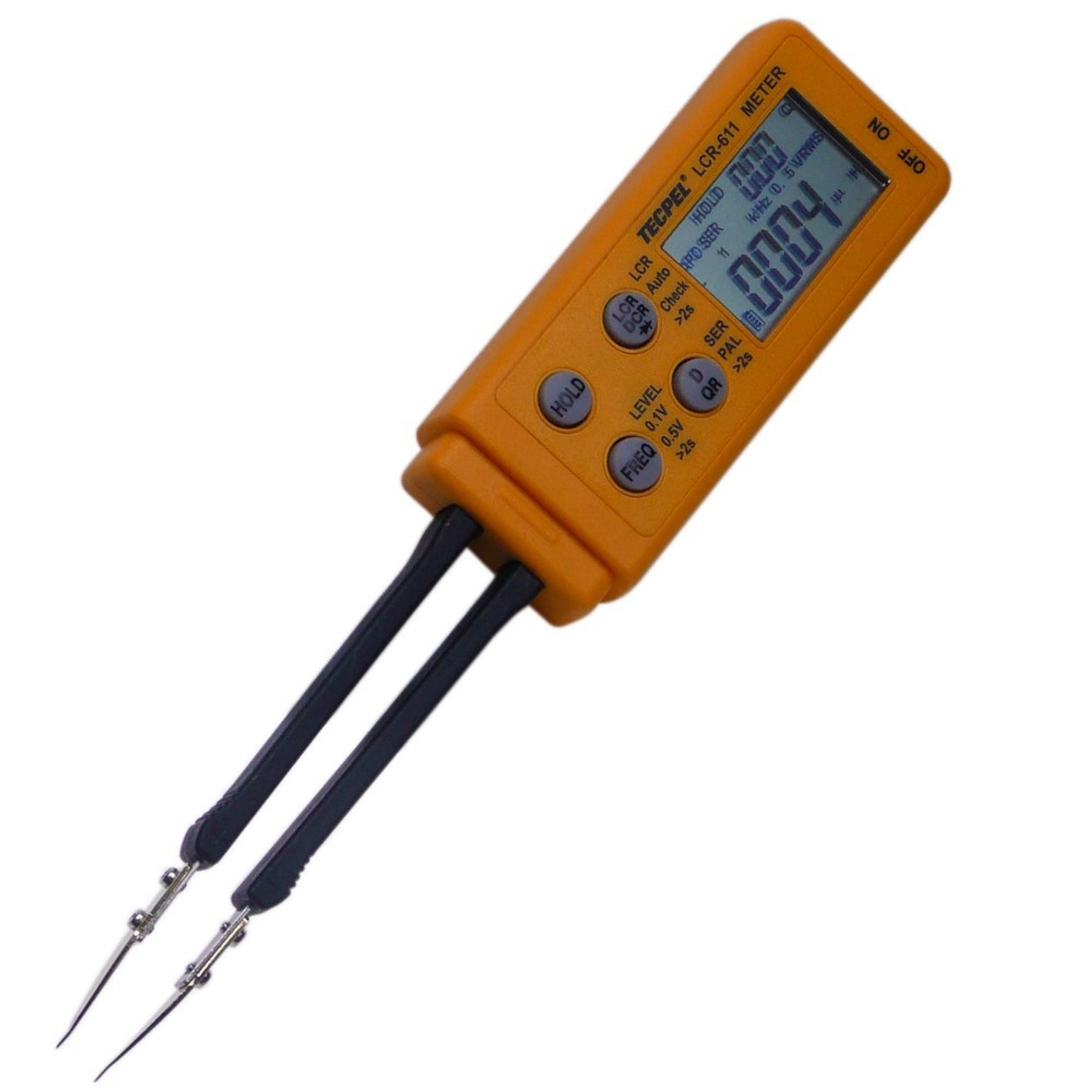

LCR-611 pen type LCR meter, 6000 digits, inductance, capacitance, resistance
Brand
TECPEL
|
Model
LCR-611
|
🇹🇼 Taiwan
• Maximum 6000 digits dual display
• Auto check feature
• Auto-ranging and auto-off functions
• Measurement frequency selection: 100Hz/120Hz/1kHz/10kHz
• Measurement voltage selection: 0.1V rms / 0.5V rms
• Measurement parameter selection: D, Q, R
• Equivalent series/parallel mode selection: SER / PAL
• Low battery warning
Price
NT$ 2,625
Out of Stock
Views: 0
Description
The LCR-611 pen type LCR meter is an easy-to-use handheld measuring instrument with a maximum display of 6000 digits, capable of accurately measuring resistance, capacitance, and inductance. Its design is particularly suitable for beginners and users conducting simple tests. The LCR-611 also offers auto-detection, auto-ranging, and auto-off features, supporting various measurement frequencies and voltage selections for a more convenient and efficient measuring process.
Specifications
- 顯示位數6000 顯示 max.
- 電阻±(0.8%+1)
- 電容±(1%+5)
- 電感±(2%+8)
- 頻率100Hz/120Hz/1kHz/10kHz
- 顯示更新約 每秒1次
- 二極體測試開路電壓:3VDC 測量電流:約0.8mA 1mV ±(2.0%+5dgts)
Features
- 等效串並聯模式選擇SER / PAL
- 測量參數選擇D、Q、R
Attributes
- Operating Temperature0~40°C / lower than 70%RH without dew。
- Storage Temperature-10~60 °C / lower than 80%RH without dew。
- Elevation LimitationLower than 1,000 meters
- Power SupplyDC Battery CR2032電池 X1
- Dimensions205H × 40W × 24.5D / mm
- WeightApprox. 365g (Battery including)
- Accessorybattery, manual
