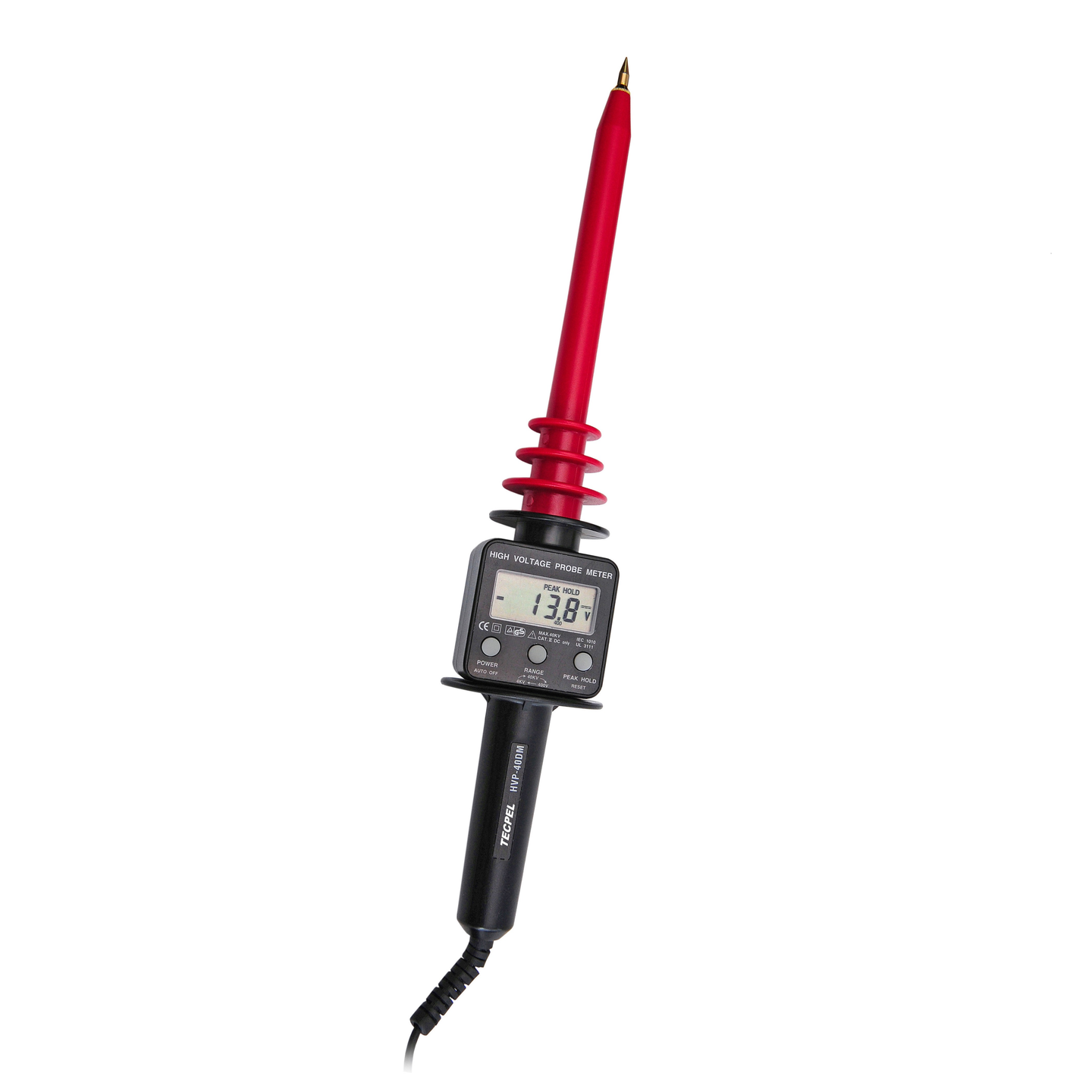

HVP-40 High Voltage Attenuation Probe
Brand
TECPEL
|
Model
HVP-40
|
🇹🇼 Taiwan
The HVP-40 is a high-voltage attenuation probe designed to reduce target measurement voltages. Compatible with oscilloscopes or multimeters to directly display actual voltage levels.
Out of Stock
Views: 0
Description

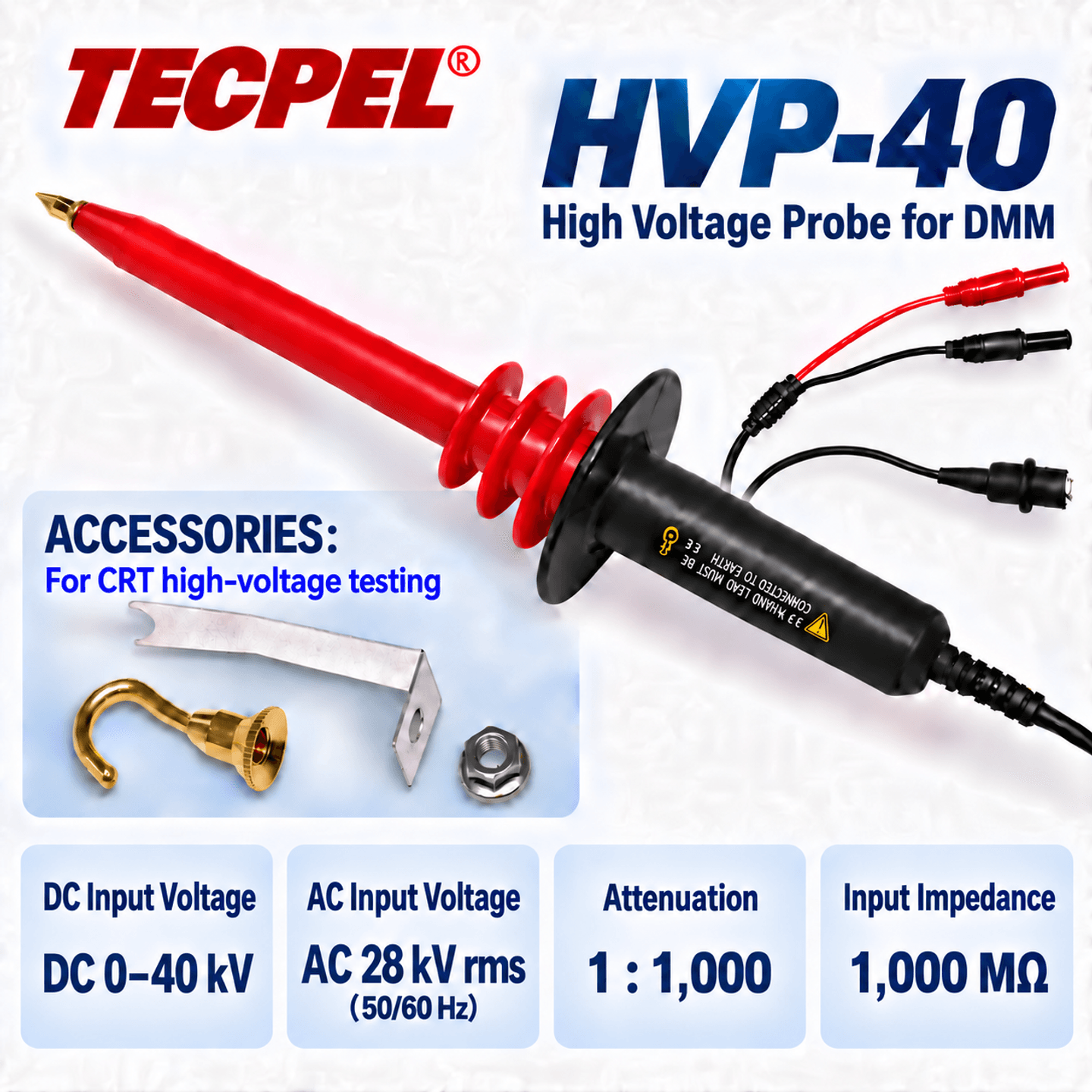

The **HVP-40 High Voltage Attenuation Probe** is a specialized probe that reduces high-voltage measurement targets for safe and accurate readings. Compatible with oscilloscopes or multimeters to display actual voltage directly.
**Maximum Voltage:**
DC: 40KV
AC: 28KV rms (50/60Hz, CAT II only)
**Input Impedance:** 1000MΩ
**Accuracy:**
DC: ±1% (up to 20KV), ±2% (up to 40KV)
AC: -5% to -10% (50/60Hz)
**Division Ratio:** 1000:1
**Certifications:** CE
Specifications
- In VoltageDC:0~40KV, AC:28KV rms (50/60Hz)
- AccuracyDC:±1%(DC 20KV) ±2%(<40KV), AC:-5 to 10%
- Bandwidth50/60Hz
- Attenuation1 : 1,000
- Rise Time≦8.8ns
- Resistance1,000M Ω
Features
- Accessory100 meter
Attributes
- Operating Temperature0 to 50°C
- Storage Temperature-20 to 70°C
- Dimensions340 x 80 mm
- AccessoryNo
