High Voltage Probe
Brand
TECPEL
|
Model
HVP-15HF
|
🇹🇼 Taiwan

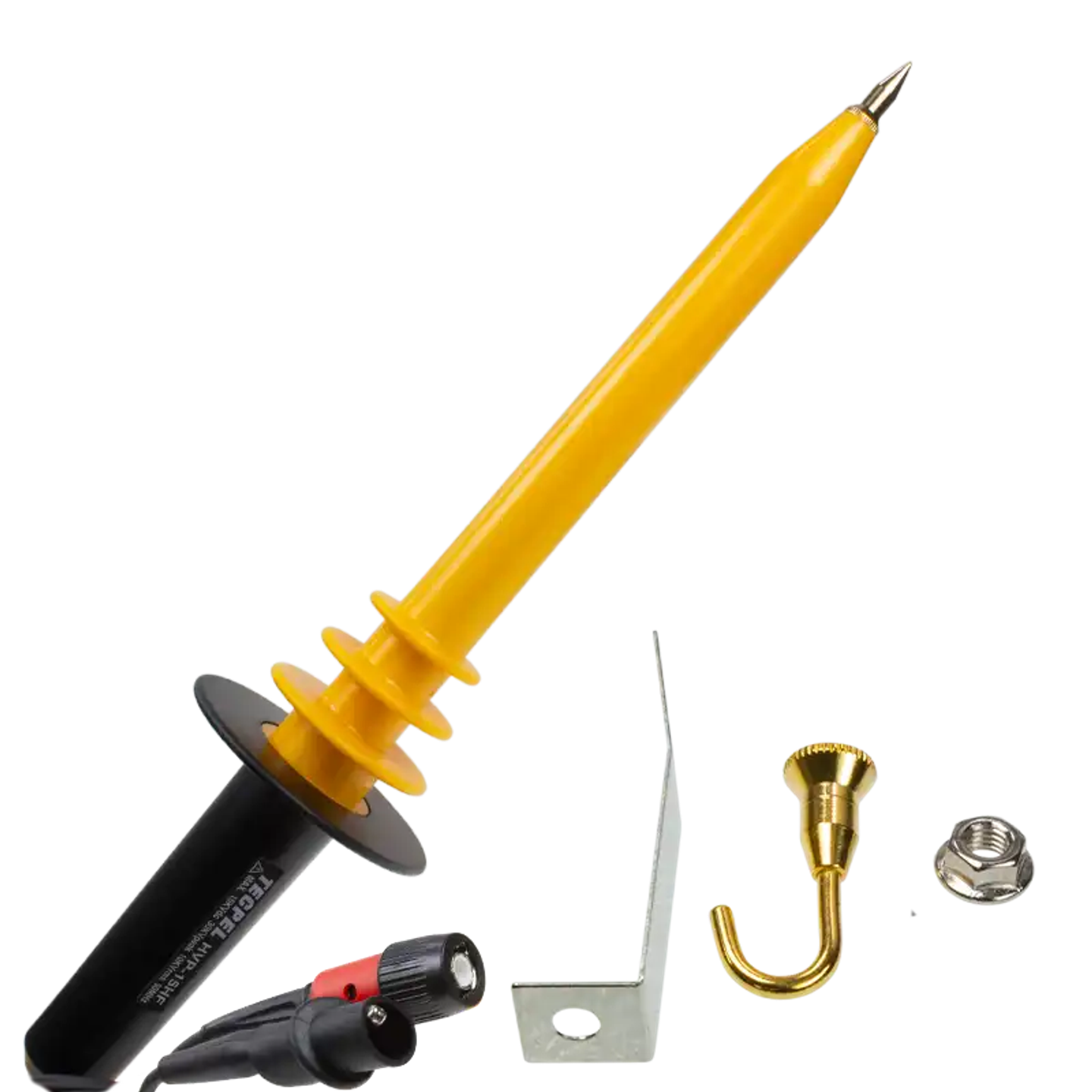

HVP-15HF 50MHz High Voltage Probe The HVP-15HF is a high-voltage probe suitable for measuring voltages up to 10kV DC or 20kV AC. With an input impedance of 100MΩ, there will be no large currents flowing through the probe. The probe is designed to allow the user to measure high voltages as safely as possible. The probe is CE tested and approved.
With the BNC connector of the HPV-15HF, it can be connected to almost all oscilloscopes. This makes it widely applicable to engineers. Via an optional BNC to the banana connector, the probe can also be used with a multimeter. The best choice for your measurement.
Out of Stock
Views: 0
Description
High Voltage Probe
The HVP-15HF is a high-voltage oscilloscope probe designed for precise measurement in high-energy environments. With a 1:1000 division ratio and wide DC to 40 MHz bandwidth, it delivers reliable signal capture for both DC and AC up to kilovolt levels. Its low capacitance and high input resistance ensure minimal loading on test circuits, while robust construction and extended temperature tolerance make it suitable for demanding industrial and lab applications.
Specifications
- In VoltageDC:0~10KV, AC:≦7KV rms (20KVp-p)
- AccuracyDC:±3%(DC to 10KV), AC:±3%(1KHz/1KV/1KHz RMS) -3dB: 0~40MHz
- Bandwidth0~40MHz(-3dB)
- Attenuation1 : 1,000
- Rise Time≦8.8ns
- Resistance100MΩ±5%
Features
- Capacitance5 to 50PF
- Temperature coefficient≦200PPM/°C
- Accessory2.0 meter(±0.2M)
Attributes
- Operating Temperature0 to 50°C
- Storage Temperature-20 to 70°C
- DimensionsØ75 x 340 mm
- WeightApprox. 250g
- AccessoryNo
