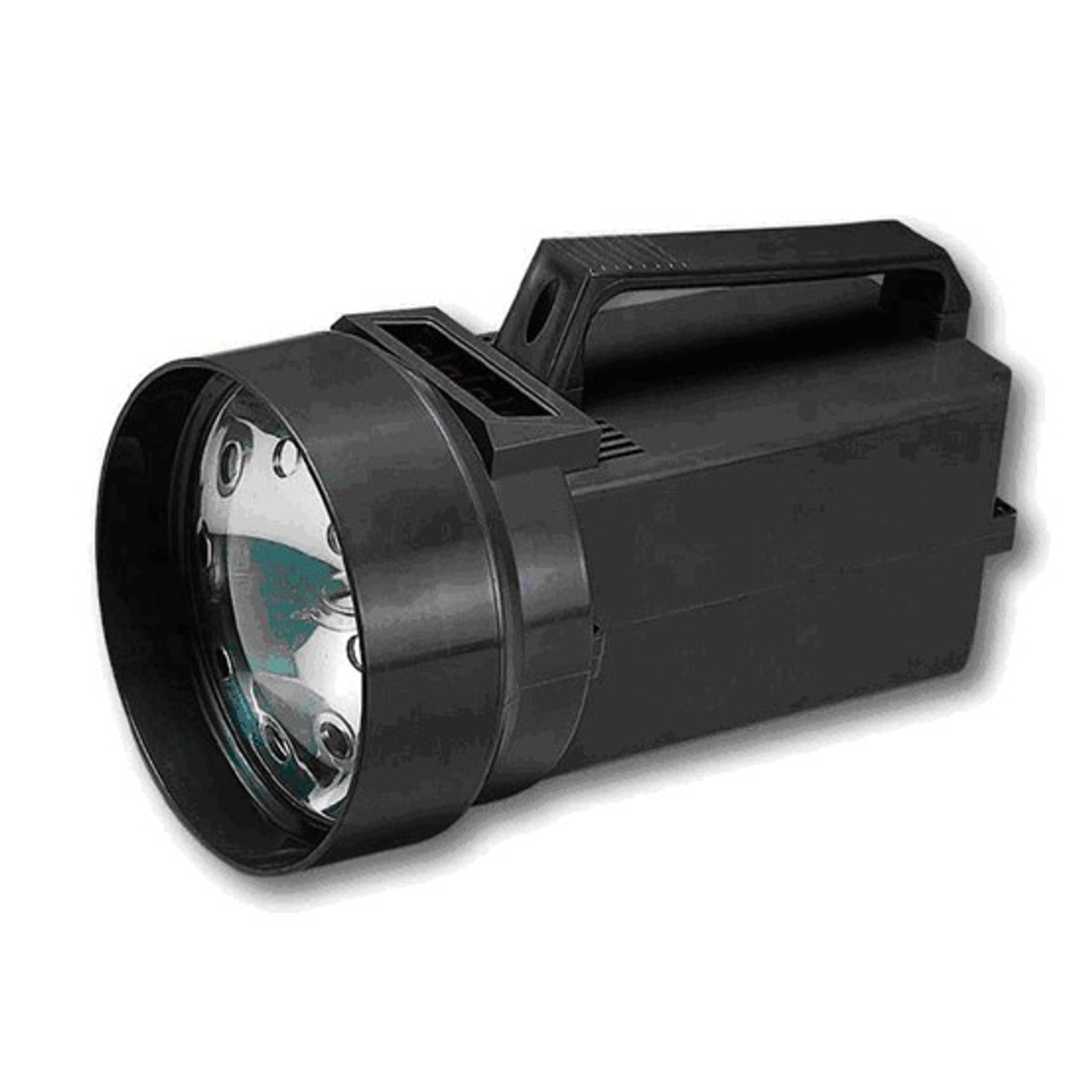

DT-2239A Digital Stroboscope Speed tachometer
Brand
LUTRON
|
Model
DT-2239A
|
🇹🇼 Taiwan
1. New microprocessor IC design
2. High-precision LED digital display
3. Suitable for checking and measuring equipment such as drive systems, centrifuges, fans, compressors, and motors
4. Ideal for industrial production, quality control, and maintenance
5. Research tool for laboratories and schools
Price
NT$ 8,190
Out of Stock
Views: 0
Description
The DT-2239A Digital Stroboscope Speed Tachometer features a new microprocessor IC design and high-precision LED digital display, accurately measuring rotational speeds. It is suitable for checking and measuring equipment such as drive systems, centrifuges, fans, compressors, and motors. This instrument is ideal for applications in industrial production, quality control, and maintenance, as well as serving as a research tool in laboratories and schools for studying flash frequency vibrations.
Specifications
- 顯示位數0.3" , 4位數LED
- 閃光速度每分鐘(FPM)100~10000次
- 精確度100 to 5,000 FPM/RPM 為 ±1位數; 超過 5000FPM/RPM 為 ±0.05%
- 解析度低於10,000FPM/RPM 為 1 FPM/RPM; 超過10,000FPM/RPM 為 10 FPM/RPM
- 取樣時間1秒
- 範圍選擇自動選擇
Features
- 電路此台閃頻式轉速計使用微處理並以石英晶體作時基振盪在寬的範圍亦提供高精確度及動態範圍。
Attributes
- Operating Temperature0~50°C / less than 70%RH (non condensing)
- Storage Temperature0~50 °C / Less than 80%RH (non condensing)
- Elevation LimitationLess than 1,000 meter
- Power selection:110Vac±10%, 10/60Hz. or 220Vac±10%, 10/60Hz. (order in advance)
- Power consumptionless than 30 watts
- DimensionsH 21 x W 12 x D 12 cm
- Weight1kg
- AccessoryEnglish Manual
