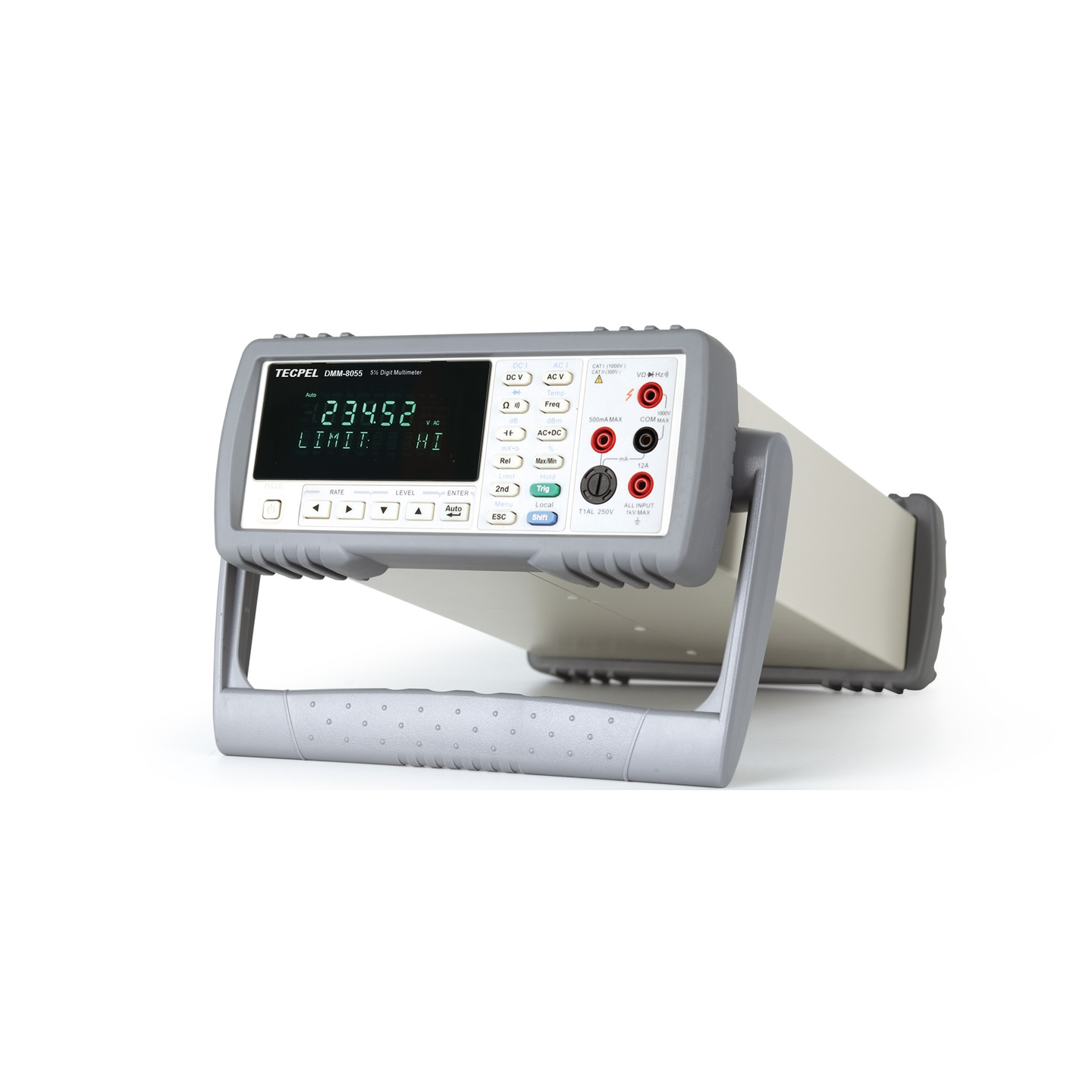

Benchtop digital multimeter
Brand
TECPEL
|
Model
DMM-8055
|
🇨🇳 China
The DMM-8055 digital multimeter has true effective value tests for AC voltage and current, not only has extremely high direct current voltage accuracy, up to 0.012%, and it also has a limit function for quick sorting.
Price
NT$ 12,500
Out of Stock
Views: 70
Description
DMM-8055 is a desktop digital multimeter that combines high precision, high speed, and versatile measurement capabilities. With a 120,000-count display and dual-fluorescent VFD screens, it can display multiple measurement readings simultaneously, greatly improving work efficiency. Featuring up to 200 readings per second and 0.012% DC voltage accuracy, even minute variations can be measured precisely.
In addition to voltage, current, resistance, and capacitance measurements, it also supports a wide range of test functions including frequency, temperature, diode, and dB/dBm. It provides statistical analysis, relative measurements, and fast judgment functions. With USB and SCPI command support, it can be easily integrated into automated test systems, making it an ideal measurement platform for research labs, production testing, and quality verification.
Specifications
- Display Counts120,000 counts
- DC VoltageRange: 100mV-1000V, Resolution: 1µV, Max. Uncertainty: 0.012%+0.008%
- AC VoltageRange: 1mA-10A, Resolution: 10nA, Max. Uncertainty: 0.5%+0.08% to 2.0%+0.18%
- DC Current1m / 10m / 100m / 1 / 10 A ±(0.05%+0.005%)（1A 檔 ±(0.07%)、10A 檔 ±(0.2%)）
- AC Current1m / 10m / 100m / 1 / 10 A ±(0.2%+0.1%) @ 51Hz~2kHz（真有效值）
- Resistance100 / 1k / 10k / 100k / 1M / 10M / 100M Ω ±(0.05%+0.005%)（10M 檔 ±(0.2%)、100M 檔 ±(2.0%)）
- Capacitance1n / 10n / 100n / 1μ / 10μ / 100μ / 1000μ / 10000μ F ±(1.0%+0.5%)
- Frequency1 ~ 1M Hz ±(0.002%+3)
- Temperature Range-10 ~ 100 ℃ (PT500 感溫，解析度 0.1℃)
Features
- True RMSHigh brightness VFD dual-display
- Measurement FunctionsDCV, ACV, DCI, ACI, Ω, CAP, Temperature, Frequency, Diode, Continuity, dB, dBm
- Diode TestMax/Min, Average value, Number of statistics
- ContinuityUSB and Handler for external triggers
- CompatibilitySCPI command support
- 數據統計最大/最小 / 平均值 / 統計數量
- 比較器HI / IN / LO 判斷與警示
- Trigger Mode內部(INT) / 手動(MAN) / 匯流排(BUS) / 外部(EXT)
- Data Hold是
- 量測速率快速(Fast) / 緩速(Slow)
- Auto Range是
- CommunicationUSB / RS-232 (SCPI) / Handler 外部觸發
- Input Impedance≥10MΩ
Attributes
- Operating TemperatureTemperature 0 ~ 50°C Humidity less than 70%RH Non-condensing
- Altitude LimitTempearture -20 ~ 60°C Humidity less than 80%RH Non-condensing
- Power Supply198V-242 V AC, 99V-121 V AC
- Dimensions277 × 115 × 354 mm
- Weight約 2.5 公斤
- Accessories測試棒(紅、黑各一)、USB 傳輸線、電源線
- 暖機時間30 分鐘
- 校準週期建議一年
