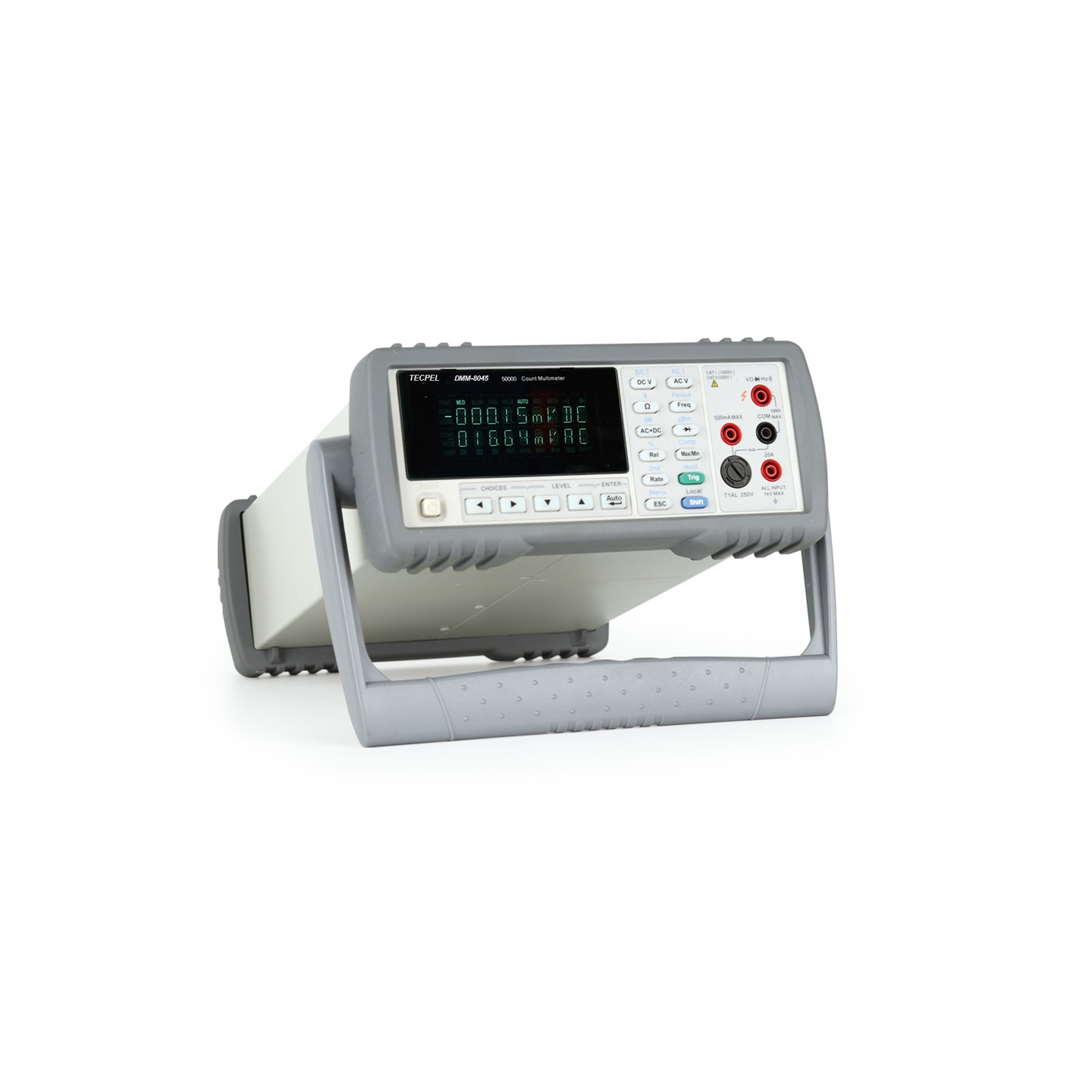

DMM-8045 Benchtop Digital multimeter - High-performance Industrial Instrument 51,000 Count

Brand TECPEL | Model DMM-8045 | 🇨🇳 China
The ideal working temperature range of this digital multimeter is from 0°C to 40°C, relative humidity should not exceed 90%. It has physical dimensions of 277mm x 115mm x 340mm and weighs around 2.2kg.
Price NT$ 9,950
Out of Stock
Views: 57

Description

DMM-8045 is a high-accuracy benchtop digital multimeter, also known as an industrial instrument capable of measuring DC/AC Voltage, Current, Frequency, Period, Continuity, and Diode. It has internal, manual, and bus trigger modes. FEATURES: 21,000/51,000-count display Large-screen dual-display VFD with high brightness True RMS AC voltage and current measurements, bandwidth up to 100kHz Measurement functions, including DCV/ACV, DCI/ACI, Ohm, frequency/period, diode, Continuity, dBm,dB, etc. Parameters,such as AC+DC, AC+Hz, Readout+d B ,Readout+dBm ,displayed synchronously Measurement speed up to 25 meas/sec DCV accuracy up to 0.02%, resolution up to10µV Measured value displayed in the form of percentage Relative mode (REL) to eliminate residual reading Calibration without opening the case Limit function (HI/IN/LO) for fast sorting Equipped RS232C communication interface providing convenient system communication

Specifications

  • Display CountsVFD dual display
  • DC VoltageAutomatic and manual
  • AC VoltageSingle: All measurement parameters
    Dual: Combined readings (e.g., ACV+DCV, ACI+DCI, ACV+Hz, ACI+Hz)
  • DC CurrentBest stable reading for each data block
  • AC CurrentTemperature: 0°C-40°C
    Humidity: ≤90% RH
  • Resistance500 / 5k / 50k / 500k / 5M / 50M Ω ±(0.1%+0.01%)(50M 檔 ±(0.3%+0.01%))
  • Frequency5 ~ 1M Hz ±(0.01%+0.008%)
  • 週期0.1n ~ 200m s ±(0.01%+0.008%)

Features

  • True RMS%, dB, dBm, Relative mode (REL)
  • Trigger ModeInternal (INT), Manual (MAN), Bus (BUS)
  • Diode TestBest stable reading for each data block
  • ContinuityHI, IN, LO judgement and display; alarm for HI/LO settings
  • Safety RatingRS232C, supports SCPI commands for automation
  • Relative ModeREL / 相對百分比 (%)
  • Max/MinMAX/MIN
  • Data Hold
  • 量測速率快速(Fast) / 正常(Med) / 緩速(Slow)
  • Auto Range
  • CommunicationRS-232 (SCPI) / USB
  • Input Impedance≥10MΩ

Attributes

  • Operating Temperature277 mm x 115 mm x 340 mm
  • Altitude LimitApproximately 2.2 kg
  • Power SupplyRecommended annually
  • Dimensions30 minutes
  • WeightExpressed as ±(% of reading + % of range)
  • Accessories0°C-18°C & 28°C-40°C, +0.1% x accuracy/°C
