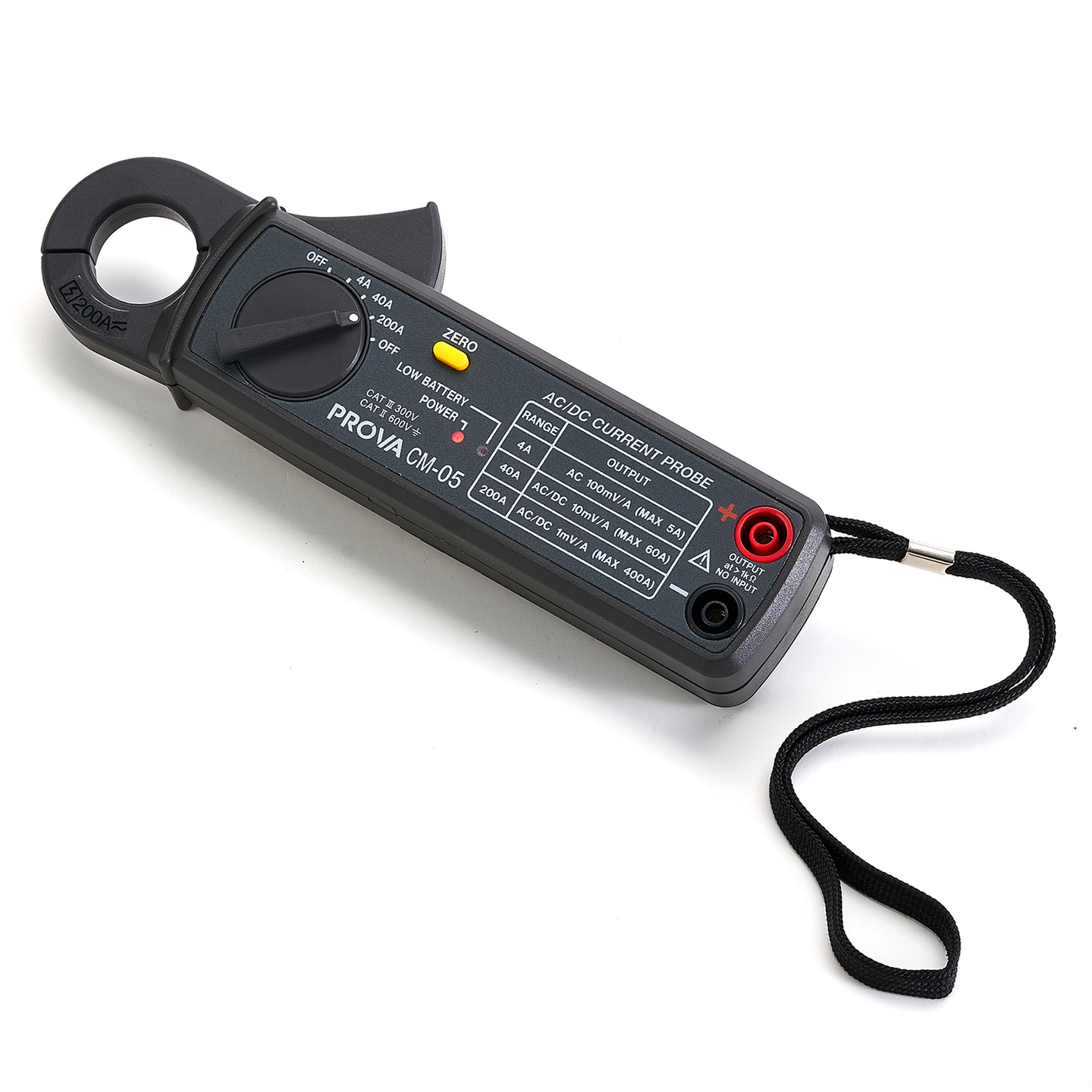

AC/DC電流檢測鉤
Brand
PROVA
|
Model
CM-05
|
🇹🇼 Taiwan
This product is designed for precise measurement of DC and AC current, ideal for laboratory and industrial applications. It offers a one-touch zero function for DCA adjustment and a convenient single rotary switch for function selection. It can directly connect to oscilloscopes for waveform observation and to data loggers or DMMs for data recording.
Out of Stock
Views: 1
Description
The CM-05 is a high-precision DC/AC current probe with 10mADC and 1mAAC high resolution. It features a 23mm jaw design for easy contact with various conductors. The additional connectivity options allow for connection to oscilloscopes or data loggers, providing extensive measurement and monitoring options.
Features:
■ Accurate DC/AC current probe for current measurement.
■ 10mADC, 1mAAC high resolution.
■ One touch zero for DCA adjustment.
■ 23 mm diameter jaw.
■ Easy single rotary switch for any function selection.
■ Connect to an oscilloscope for waveform observation.
■ Connect to a datalogger/DMM for recording or monitoring.
Specifications
- DCA Range 0-4AOutput DC 100mV/A ±2.0%±0.005A
- DCA Range 0-40AOutput DC 10mV/A ±1.0%±0.02A
- DCA Range 0-150AOutput DC 1mV/A ±1.0%±0.2A
- DCA Range 150-200AOutput DC 1mV/A -2.2%±0.2A
- ACA Range 0-4AOutput AC 100mV/A ±2.0%±0.005A (40-1KHz)
- ACA Range 0-40AOutput AC 10mV/A ±1.5%±0.03A (40-1KHz)
- ACA Range 0-150AOutput AC 1mV/A ±1.5%±0.3A (40-1KHz)
- ACA Range 150-200AOutput AC 1mV/A -2.2%±0.3A (40-1KHz)
Features
- Resolution10mADC / 1mAAC
- One-touch Zeroyes
- Single Rotary Function Selectionyes
- Connect to Oscilloscopeyes
- Data Loggingyes
Attributes
- Dimensions183 (L) x 61.3 (W) x 35.6 (H) mm
- Power Supply1.5V AA batteries × 2
- Weight190g (including batteries)
- Operating Temperature-10℃ ~ 50℃
- Storage Temperature-20℃ ~ 60℃
- Measurement AltitudeUp to 2000 meters
- AccessoryCarrying case x 1, Manual x 1, 1.5V Battery x 2, Test Lead
