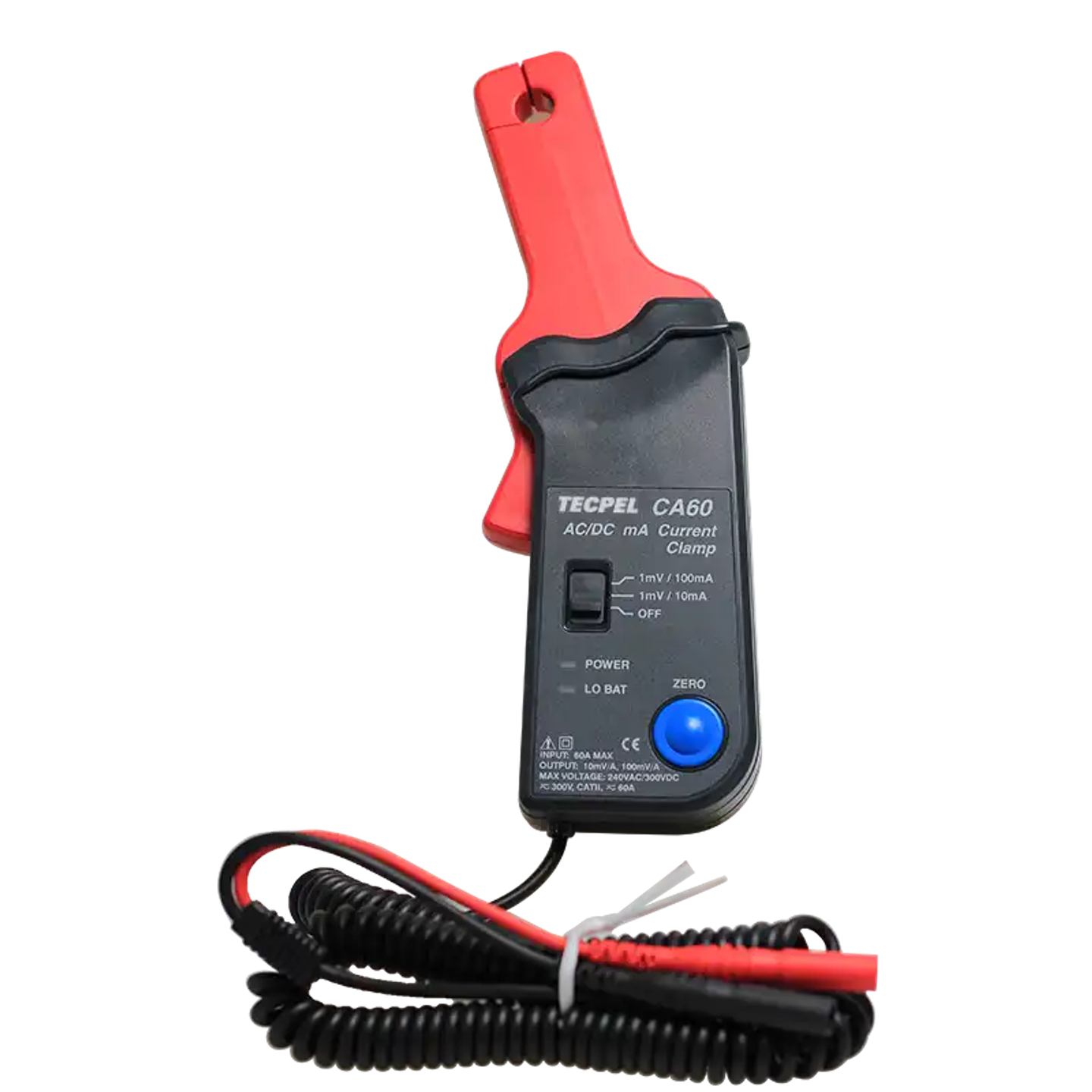

60A Current Clamp Head
Brand
TECPEL
|
Model
CA-60
|
🇹🇼 Taiwan
The CA-60 current clamp head converts current into a voltage output,
allowing it to be connected to instruments such as digital multimeters and oscilloscopes,
with a measurement range of 0~60A,
offering an accuracy of ±2.0%,
and suitable for DC/AC current monitoring.
Price
NT$ 2,000
Out of Stock
Views: 6
Description
Product: CA-60, Field: Function Introduction
The CA-60 current clamp module is a professional current-measuring device that converts DC and AC currents into a voltage output, making it convenient to connect with instruments such as digital multimeters or oscilloscopes. This product is suitable for current monitoring in various electrical systems, offering high accuracy and good flexibility. It is also used with a coiled cable and extension leads to meet different usage requirements in various environments.
Specifications
- Measurement range0~60A
- Jaw opening9mm (3/8“)
- Signal output1 mV / 10mA or 1 mV / 100mA
- Accuracy±2.0% (40~2K Hz) / ±4.0% (2K~10K Hz)
- Frequency range20K Hz
Features
- Input Impedance1MΩ
Attributes
- Operating temperature0~40 °C / 30~80%RH non-condensing
- Storage temperature-10~50 °C / 35~70%RH non-condensing
- Altitude limitbelow 1,000 meters
- Power supply1.5V AA batteries x 2
- Dimensions (appearance)7.7“ x 2.8” x 1.3“
- Accessoriesbattery, manual
