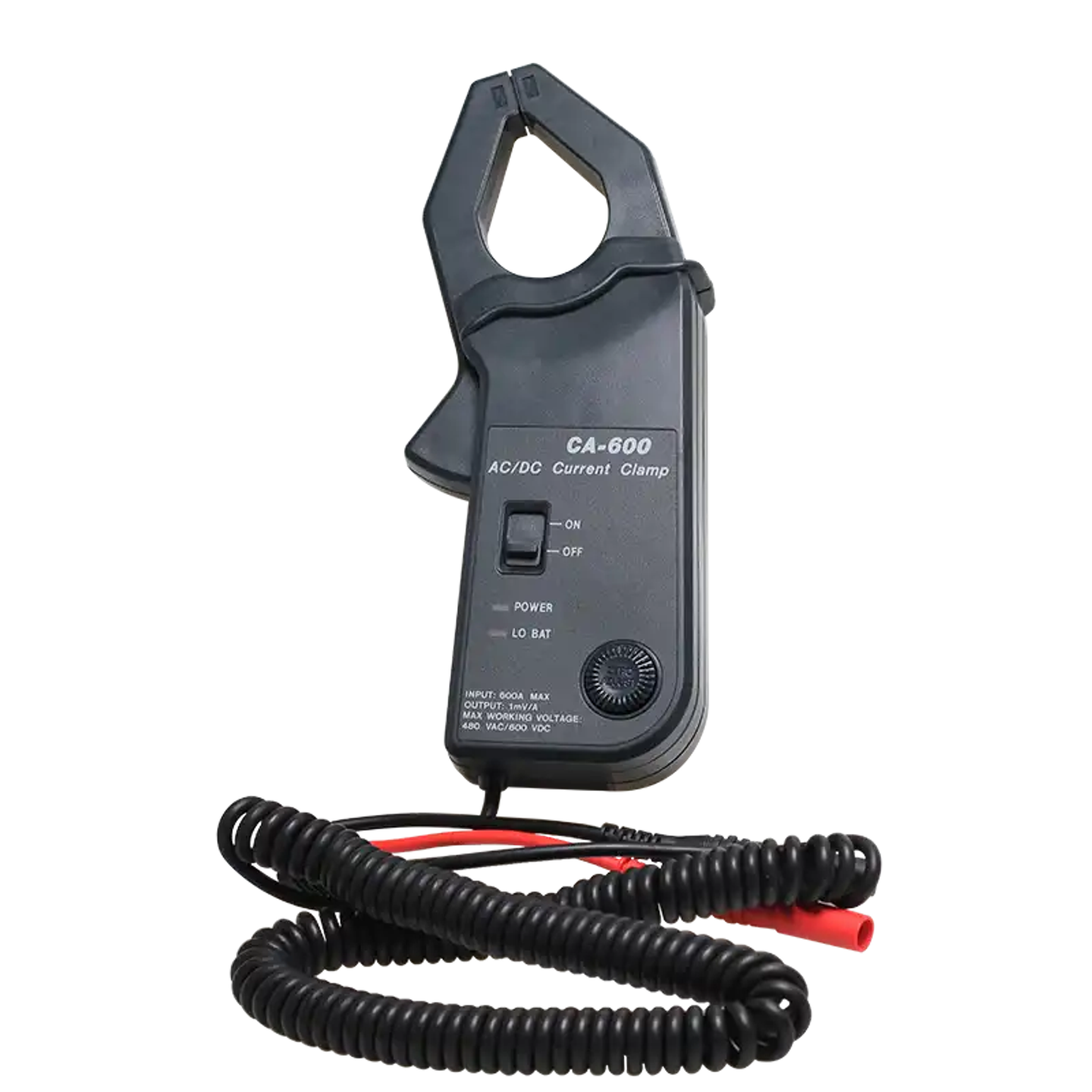

600A current Clamp probe Transmitter
Brand
TECPEL
|
Model
CA-600
The CA-600 current clamp converts measured current values into voltage, easily connecting to multimeters or other instruments.
- Measurement range: 0~600A
- Jaw opening: 30mm
- Signal output: 1 mV / 1A
- Accuracy: ±3.0% (50~400Hz)
- Frequency range: 50~400 Hz
- Easy connection to various measuring instruments
Out of Stock
Views: 0
Description
The CA-600 DC/AC current clamp is a high-performance tool designed to convert current measurements into voltage signals. This product is suitable for digital multimeters or oscilloscopes, providing accurate measurements of both DC and AC currents with stable output, allowing users to easily obtain current data. Whether in laboratory or industrial applications, the CA-600 meets various needs, helping you monitor and analyze current more efficiently.
Specifications
- Measurement range0~600A
- Jaw opening30mm
- Signal output1 mV / 1A
- Accuracy±3.0% (50~400Hz)
- Frequency range50~400 Hz
Features
- Input impedance1MΩ
Attributes
- Operating temperature0~40 °C / 30~80%RH no condensation
- Storage temperature-10~50 °C / 35~70%RH no condensation
- Altitude limitbelow 1,000 meters
- Power supply9V battery x1
- Safety ratingIEC 1010-1, IEC 1010-2-032, UL, CE certified
- Dimensions (appearance)178 x 70 x 33 mm
- Accessoriesbattery, manual
