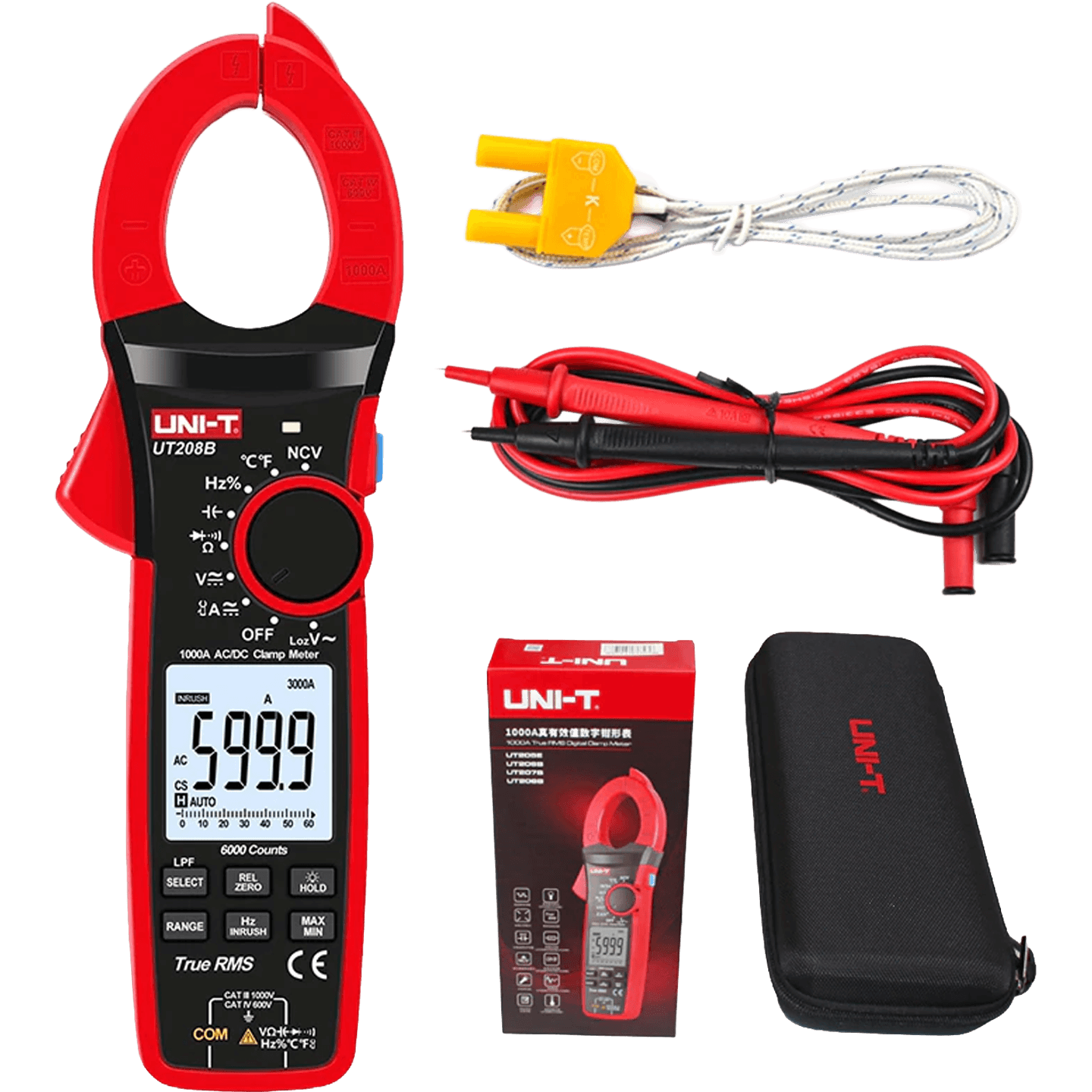

AC/DC Digital Clamp Meter
Brand
UNI-T
|
Model
UT-208B
|
🇨🇳 China
UT-208B 1000A AC/DC Digital Clamp Meter
Out of Stock
Views: 20
Description
UT-208B AC/DC Digital Clamp Meter
Features
LoZ mode to eliminate "ghost" voltages, LPF ACV functionality to measure INV and VFD voltages, and inrush current mode to capture transient currents.
● Flashlight button: Short press this button to turn on/off the flashlight
● NCV multi-segment display and sound and light alarm
● True RMS/automatic backlight
● NCV/function retention
Specifications
- Digits Dispaly6,600 Digits
- Jaw OpeningØ55 mm
- AC Current66 / 1,000 A
- DC Current66 / 1,000 A
- AC Voltage6.6 / 66 / 600 V
- DC Voltage6.6 / 66 / 600 V
- Resistance600 / 6.6K / 66K / 660K / 6.6M / 66M Ω
- Frequency660 / 6.6K / 66K / 660K / 6.6M / 66M Hz(MHz for reference only)
- Duty Ratio0.1~99.9 %
- Temperature Range-40~1,000 °C (-40~1,832 °F)
- ResolutionDC: 0.1mV / AC: 0.001V
- AccuracyDC: ±(0.8%+1 value) / AC: ±(1%+2 value)
Features
- Input Impedance10MΩ
Attributes
- Operating Temperature0~40°C / lower than 80%RH without dew。
- Storage Temperature10~50 °C / lower than 70%RH without dew。
- Elevation LimitationLower than 1,000 meters
- Power Supply9V battery (6F22)
- Dimensions286 x 105 x 45 mm
- Weight533g
- AccessoryTest Lead、 Temperature Sensor、 Battery 、Carrying Bag、Manual
