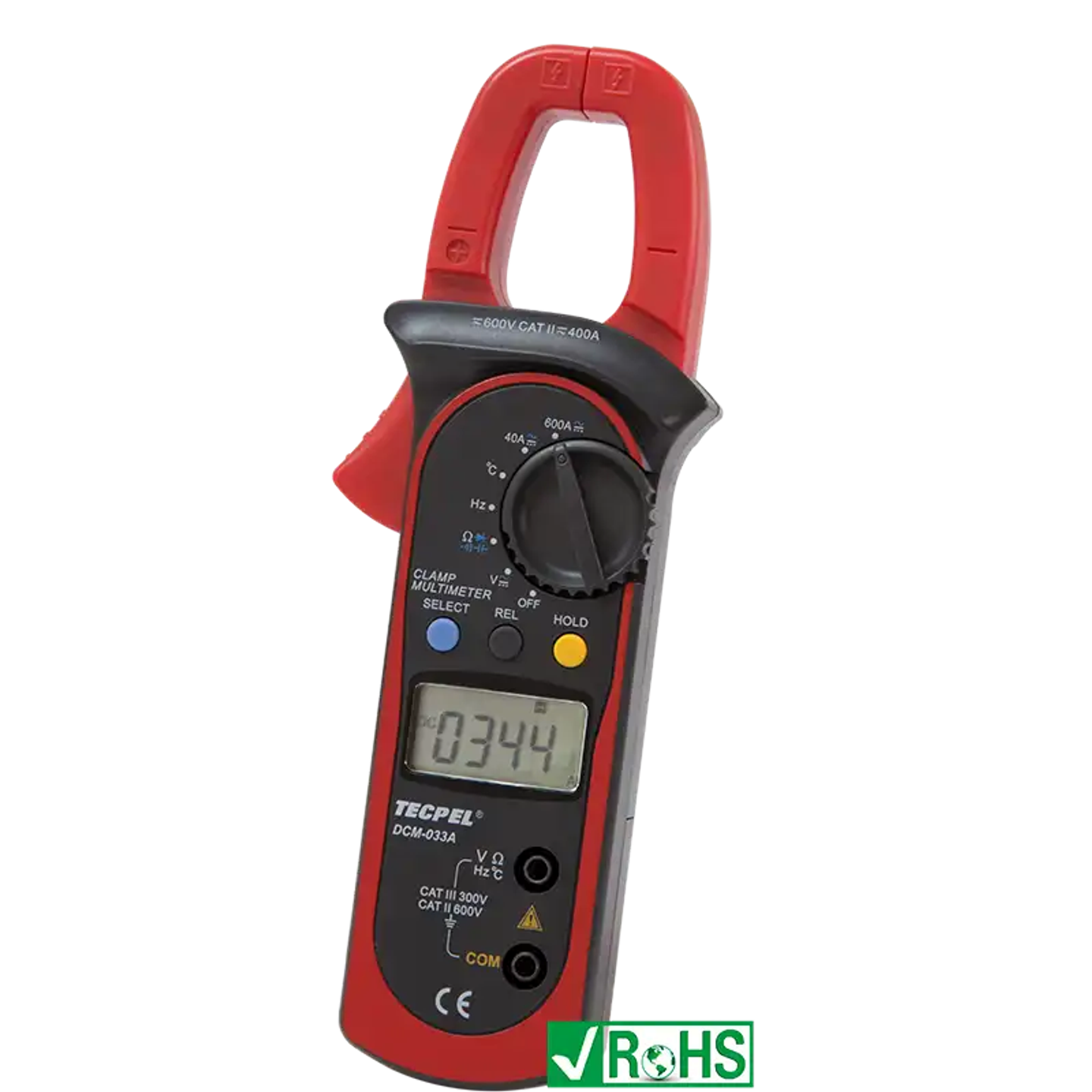

AC/DC Digital Clamp Meter
Brand
TECPEL
|
Model
DCM-033A
Measures AC and DC currents with a minimum display of 0.001 A.
Includes diode testing and continuity testing functions.
Measurement range up to 40 / 600 A.
Complies with RoHS and CE safety standards.
Out of Stock
Views: 212
Description
The DCM-033A AC/DC Digital Clamp Meter is a professional measuring tool designed to accurately measure both AC and DC currents, with a minimum display of 0.001 A. Its user-friendly clamp design allows technicians to easily measure current by clamping around the wire, and it features multiple testing functions, including diode testing, continuity testing, and capacitance measurement, making it suitable for various applications.
Specifications
- Display CountsDC: ±(0.8%+1 number) / AC: ±(1%+5 number)
- Jaw OpeningØ28 mm
- AC Current40 / 600 A (±(2.5%+3)>
- DC Current40 / 600 A (±(2%+5)>
- DC Voltage400m / 4 / 40 / 400 / 600 V (±(1%+5)>
- AC Voltage4 / 40 / 400 / 600 V (±(0.8%+1)>
- Resistance400/ 4k/ 40k/ 400k/ 4M/ 40M Ω (±(1%+2)>
- Capacitance4n/ 40n/ 400n/ 4μ/ 40μ/ 100μ F (±(4%+3)>
- Frequency10~10M Hz (MHz portion is for reference only)
- Temperature RangeDC: 0.01A / AC: 0.01A
Features
- Diode Test1mV
- ContinuityGreater than 10Ω
- Input Impedance10MΩ
- Safety RatingRoHS compliance, NEW CE 2014
Attributes
- Operating Temperature0~40 °C / Below 85%RH, no condensation allowed
- Storage Temperature-20~60 °C / Below 75%RH, no condensation allowed
- Altitude LimitBelow 2,000 meters
- Power SupplyDC 9V battery (6F22)
- Dimensions485 x 320 x 385mm
- Weight260g
- AccessoriesTest leads, temperature test line, battery, carrying bag, instruction manual
- Safety RatingRoHS 規範, NEW CE 2014
