Large Digital LED Temperature Display
Brand
TECPEL
|
Model
TRH-3306C_K
|
🇹🇼 Taiwan
Equipped with high-precision ambient temperature monitoring capability, it adopts K-type thermocouple sensing technology to provide stable and fast temperature measurement performance.
The system can be customized according to different application requirements to set the measurement temperature range and resolution, meeting the needs of various industrial processes, equipment monitoring, and environmental management.
Out of Stock
Views: 60
Description

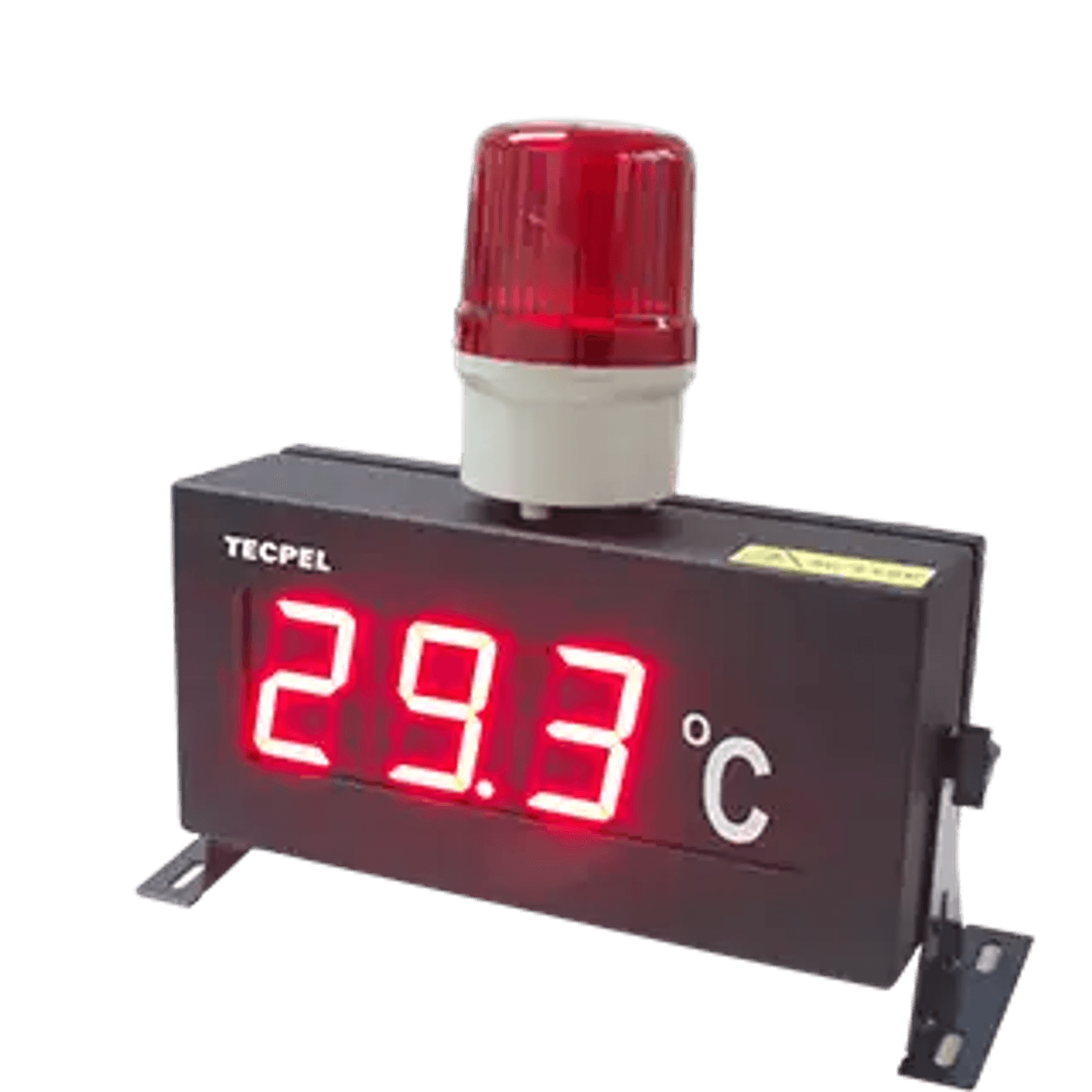

The TECPEL TRH-3306C-K Large Digital LED Temperature Display is designed for precise environmental monitoring. Equipped with a K-type thermocouple sensor, it is suitable for various settings such as warehouses, workplaces, archives, and clean rooms. This display provides high accuracy temperature data and features customizable temperature ranges and resolutions, ensuring optimal performance in multiple applications.
Specifications
- Display Counts3 digits
- Temperature Range0~999 °C (customizable)
- Resolution0.1 °C or 1 °C (customizable)
- Response Time3 times/sec or 0.5 times/sec
Features
- Standard Input SignalPT-100, K-type or 4~20mA (customizable)
- Output VoltageDC24V / 100mA
- CalibrationExternal Zero/Span Adjustment
- User CompensationDigital Compensation
- DisplayRed LED
- Digit Size2.3 inch (H57mm x L32mm)
Attributes
- Operating Temperature0~50 °C / <70%RH, non-condensing
- Storage Temperature-20~60 °C / <80%RH, non-condensing
- Altitude LimitBelow 1,000 meters
- Power SupplyDC24V
