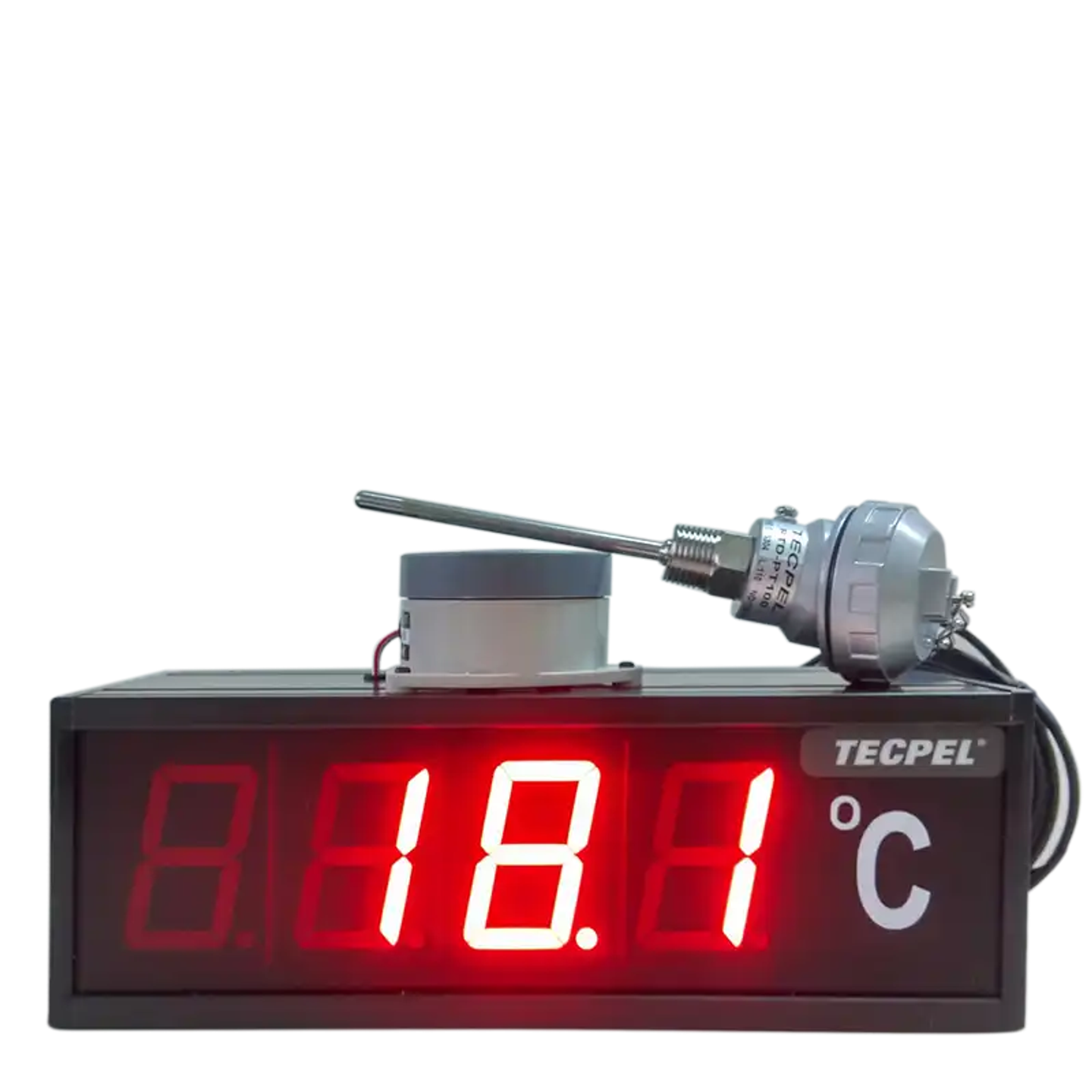

Temperature Display Board
Brand
TECPEL
|
Model
TRH-3306C-PT100
|
🇹🇼 Taiwan
The TRH-3306C-PT100 Temperature Display Board offers the following features:
- High-precision PT100 temperature sensor for accurate measurements
- Supports DC24V / 100mA voltage output
- External Zero / Span adjustment for improved accuracy
- Digital compensation functionality for enhanced user experience
- Clear red LED digital display for easy visibility
- Compact size of 2.3 inches (H57mm x L32mm), suitable for various environments
Out of Stock
Views: 63
Description
The TRH-3306C-PT100 Temperature Display Board is an efficient display device specially designed for environments such as warehouses, factories, archive rooms, and clean rooms. Equipped with a high-precision PT100 temperature sensor, it provides real-time temperature data, helping users effectively monitor temperature changes to ensure environmental stability and safety. The clear red LED digital display is easy to see from a distance, and it features multiple adjustment functions for enhanced convenience.
Specifications
- Display Counts3 digits
- Temperature Range0~99.9 °C or -19.9~80.0 °C
- Resolution0.1
- Response Time3 times/sec or 0.5 times/sec
Features
- Standard Input SignalPT-100
- Output VoltageDC24V / 100mA
- CalibrationExternal Zero/Span Adjustment
- User CompensationDigital Compensation
- DisplayRed LED
- Digit Size2.3 inch (H57mm x L32mm)
Attributes
- Operating Temperature0~60 °C / <90%RH, non-condensing
- Storage Temperature0~60 °C / 10~70%RH, non-condensing
- Altitude LimitBelow 1,000 meters
- Power SupplyAC90~260V 50/60 Hz
- DimensionsH100 x L241 x D61 mm
- WeightApprox. 1 kg
