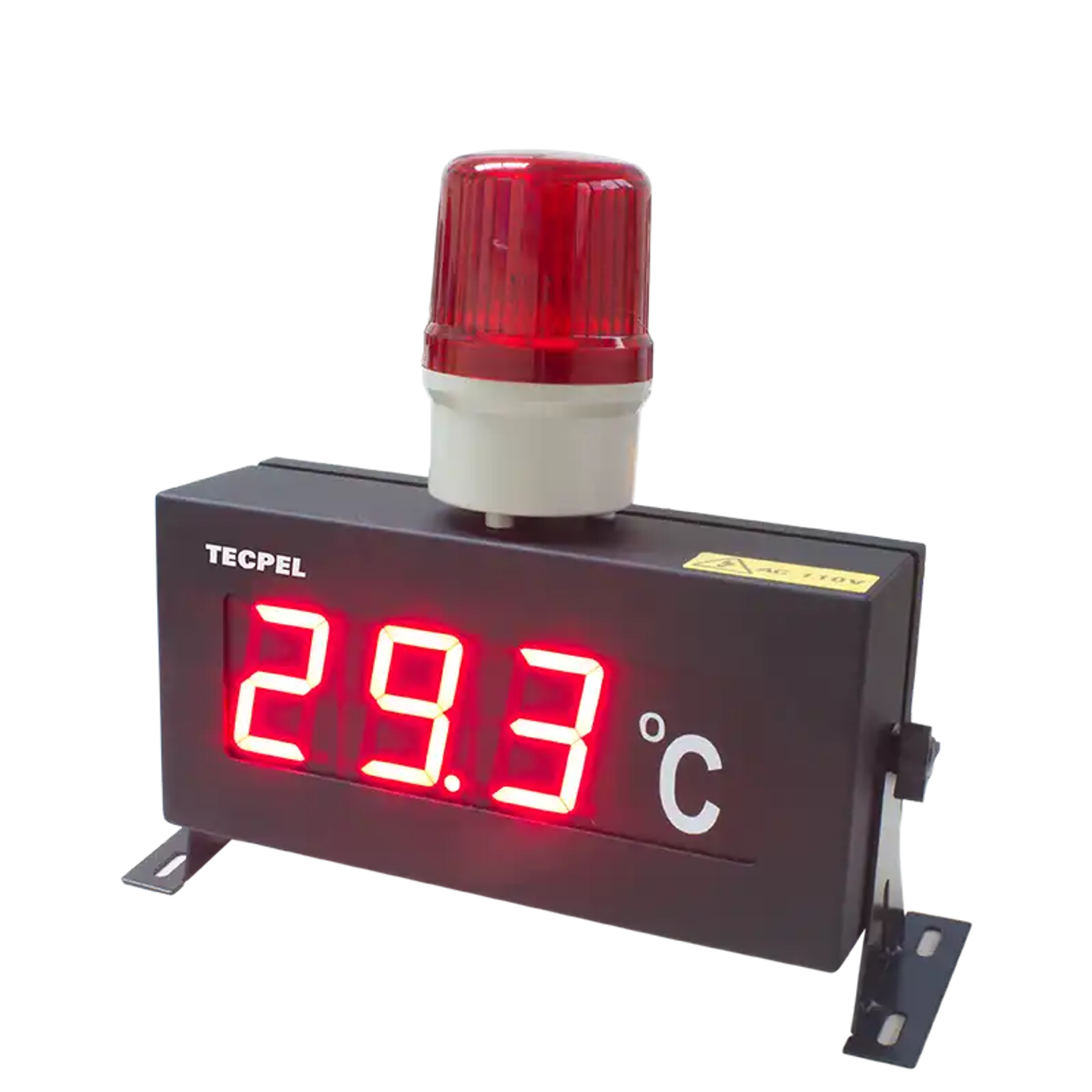

Large digital temperature displays with high-low flashing-light alarm, industrial display monitors
Brand
TECPEL
|
Model
TRH-3306CHL
|
🇹🇼 Taiwan
• Large digital display with red LED light
• High-low temperature alarm with red flashing light and buzzer
• Supports K-type thermocouple signal input
• Digital compensation for high accuracy
• Compact size of 2.3 inches, suitable for various industrial applications
Out of Stock
Views: 49
Description
The TRH-3306CHL large digital temperature display is designed for industrial applications, featuring high-low temperature alarm lights for real-time temperature monitoring. Its built-in red LED light and buzzer alarm system ensure users can respond quickly when temperatures exceed set limits. The device supports K-type thermocouple signal input and offers digital compensation along with external adjustments, ensuring measurement accuracy. Ideal for temperature monitoring needs in various industrial environments.
Specifications
- Display Counts3 digits
- Temperature Range0~99.9 °C
- Resolution0.1
- Response Time3 times/sec or 0.5 times/sec
Features
- Standard Input SignalK-type thermocouple signal
- Output VoltageDC24V / 100mA
- CalibrationExternal Zero/Span Adjustment
- User CompensationDigital Compensation
- DisplayRed LED
- Digit Size2.3 inch (H57mm x L32mm)
- Alarm FunctionRed flashing-light alarm
Attributes
- Operating Temperature0~60 °C / <90%RH, non-condensing
- Storage Temperature0~60 °C / 10~70%RH, non-condensing
- Altitude LimitBelow 1,000 meters
- Power SupplyAC 110V or 220V (depends on alarm spec; confirm before ordering)
- DimensionsH130 x L390 x D80 mm
- WeightApprox. 3.5 kg
