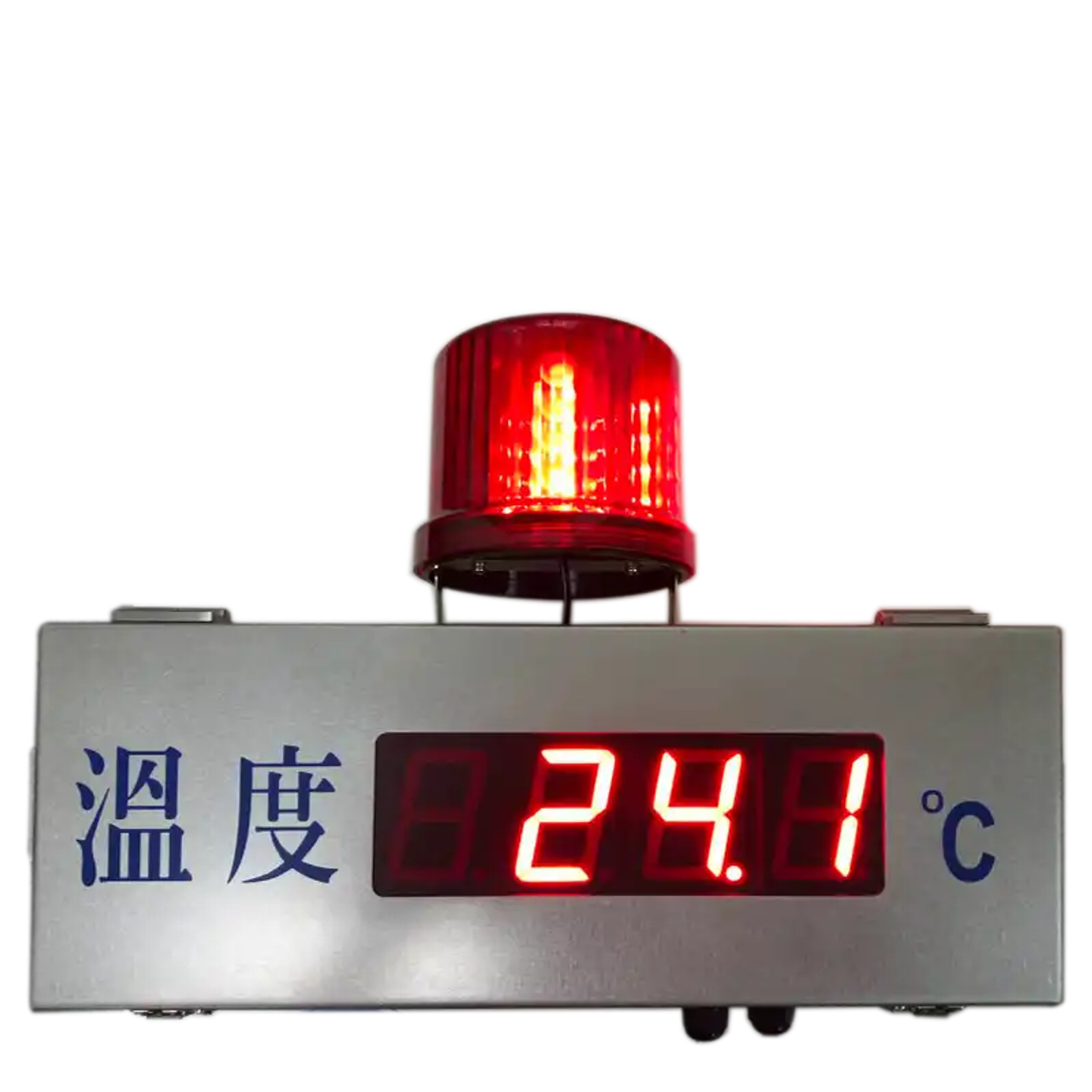

Outdoor Temperature Display Board
Brand
TECPEL
|
Model
TRH-3306CWHL-K
|
🇹🇼 Taiwan
• Utilizes K-type thermocouple for various probe applications
• Waterproof design suitable for outdoor and humid environments
• Temperature range: 0~999.9°C
• Adjustable accuracy with external Zero/Span
• Digital compensation feature for precise readings
• Clear red LED display for visibility
• Alarm function with red flashing light
Out of Stock
Views: 52
Description
The TRH-3306CWHL-K Outdoor Temperature Display Board is designed specifically for outdoor and humid environments with waterproof features, accurately displaying temperatures ranging from 0 to 999.9°C. Utilizing a K-type thermocouple, it allows for flexible applications, making it ideal for temperature monitoring in factories, swimming pools, and saunas, ensuring users are always aware of environmental changes.
Specifications
- Display Counts3 digits
- Temperature Range0~999.9 °C
- Resolution0.1
- Response Time3 times/sec or 0.5 times/sec
Features
- Standard Input SignalK-type thermocouple signal
- Output VoltageDC24V / 100mA
- CalibrationExternal Zero/Span Adjustment
- User CompensationDigital Compensation
- DisplayRed LED
- Digit Size2.3 inch (H57mm x L32mm)
- Alarm FunctionRed flashing-light alarm
Attributes
- Operating Temperature0~60 °C / <90%RH, non-condensing
- Storage Temperature0~60 °C / 10~70%RH, non-condensing
- Altitude LimitBelow 1,000 meters
- Power SupplyAC 110V or 220V (depends on alarm spec; confirm before ordering)
- DimensionsH130 x L390 x D80 mm
- WeightApprox. 3.5 kg
