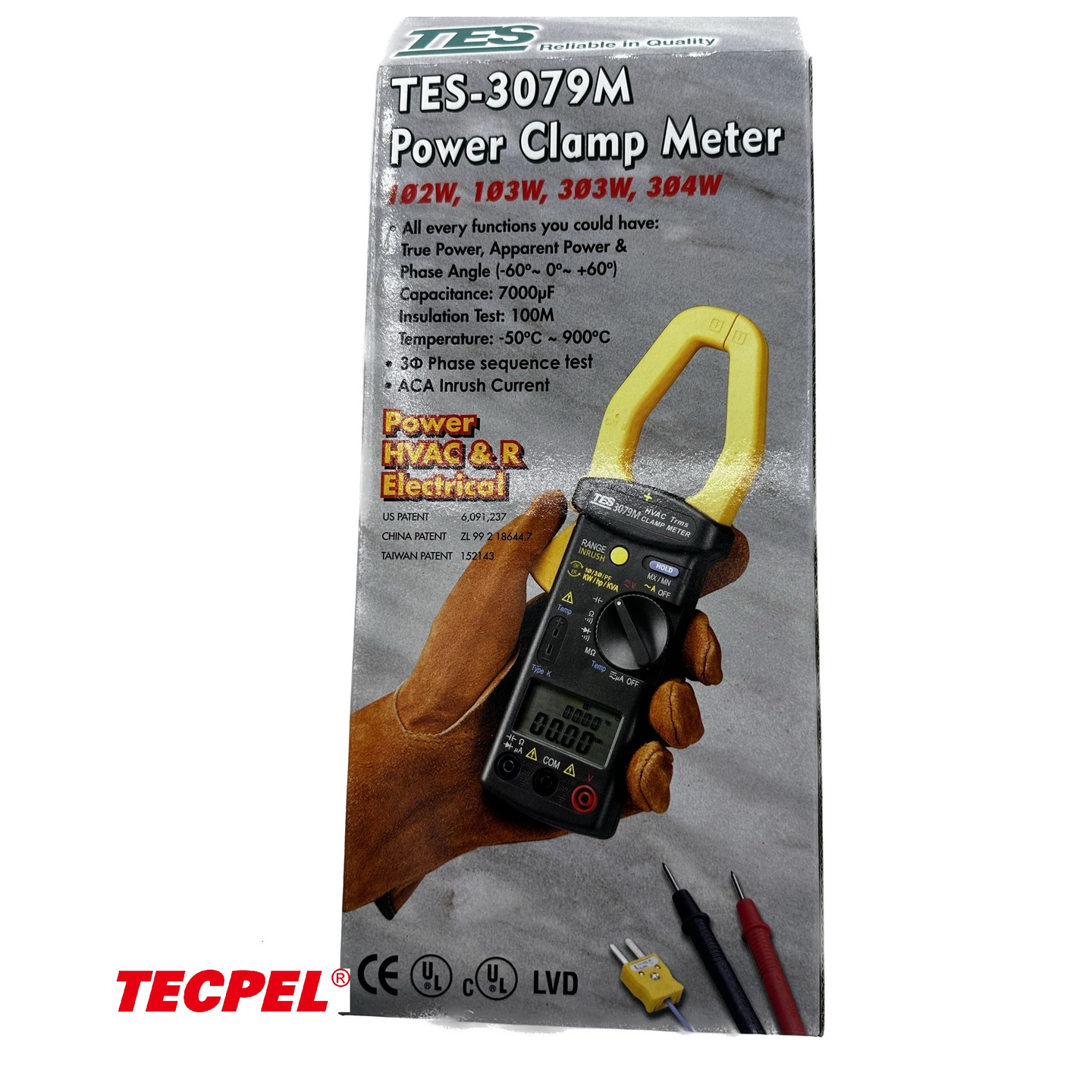

True RMS AC voltage (1000A)
Brand
TES
|
Model
TES-3079M
|
🇹🇼 Taiwan
• Measurement Range: AC Voltage 60mV~600V, AC Current 20mA~1000A
• True RMS measurement technology for accuracy
• Wide jaw opening, max jaw width 33mm
• Multi-functional design for diverse measurement needs
• Safety Ratings: CAT III 1000V, CAT IV 600V
• Dual LCD display for easy reading
• Auto shut-off feature for energy saving
• Suitable for circuit troubleshooting and electrician training
• Fine measurement precision for professional use
Price
NT$ 4,780
Out of Stock
Views: 57
Description
The TES-3079M True RMS AC voltage clamp meter is a professional measuring tool that features ten functions, including voltage, current, wattage, horsepower, resistance, capacitance, and frequency measurements. Its True RMS measurement technology ensures accurate results, making it ideal for circuit troubleshooting and electrical equipment inspection. With a wide jaw opening capable of measuring wires up to 33mm in diameter and safety ratings of CAT III 1000V and CAT IV 600V, this tool is essential for electricians.
Specifications
- 交流電壓量測範圍60mV~600V
- 交流電流量測範圍20mA~1000A
- 直流電壓量測範圍60mV~1000V
- 電阻量測範圍200Ω~40MΩ
- 電容量測範圍20nF~1000μF
- Frequency0.1Hz~1000Hz
- 相序L1、L2、L3
- Accuracy交流電壓±(0.5%+2), 交流電流±(2%+3), 直流電壓±(0.5%+2), 電阻±(1%+2), 電容±(5%+2), 頻率±(0.1%)
- Battery Type9V
- Dimensions236長x80寬x39厚mm
- Weight332g
Features
- Measuring Range交流電壓60mV~600V，交流電流20mA~1000A
- True RMS確保準確度
- 鉗嘴設計最大鉗寬33mm
- 多功能設計適用於多種測量需求
- Safety RatingCAT III 1000V，CAT IV 600V
- Display雙液晶顯示
- Auto Power Off省電設計
- Applications電路故障排除及電工訓練
Attributes
- Operating Temperature0~50°C / lower than 80%RH without dew。
- Storage Temperature-10~60°C / lower than 70%RH without dew。
- Altitude LimitLower than 1,000 meters
- Power Supply1.5V Battery (AA) x 2
- Dimensions260 × 93 × 45 mm
- Weight450g (Battery including)
- AccessoriesBattery x2、Test Lead、 Carrying Bag、Manual
