AC/DC Digital Clamp Meter
Brand
TECPEL
|
Model
DCM-032A
• Measurement range: AC current 2A / 20A / 200A / 600A
• Diode test function: up to 1.48V
• Continuity test function: minimum 10Ω
• Input impedance up to 10MΩ
• Clear digital display, easy to operate
• Jaw opening: Ø28mm
Price
NT$ 599
Out of Stock
Views: 80
Description
Product: DCM-032A, Field: Feature Introduction
The DCM-032A digital AC clamp meter is a high-precision measuring instrument designed specifically for measuring AC current. Its minimum display current reaches 0.001A, making it suitable for electrical maintenance and testing to ensure safe operation of equipment. Whether in industrial environments or at home, this clamp meter provides stable and accurate measurement results, and is especially suitable for measuring weak AC currents.
Specifications
- Accuracy1,999 digits
- Jaw openingØ28 mm
- AC current2 / 20 / 200 / 600 A (±(1.5%+5)>
- DC current200m / 2 / 20 / 200 / 600 V (±(0.8%+1)>
- AC voltage2 / 20 / 200 / 600 V (±(1.2%+5)>
- Resistance200 / 2k / 20k / 200k / 2MΩ / 20MΩ (±(1%+2)>
Features
- Diode test1.48V
- Continuity test10 Ω
- Input impedance10MΩ
Attributes
- Operating Temperature0~50°C / lower than 85%RH without dew。
- Storage Temperature-10~50°C / lower than 75%RH without dew。
- Elevation LimitationLower than 1,000 meters
- Power Supply1.5V Battery (AA) x 2
- Device Power ConsumptionApprox. 10mA
- Dimensions210 × 75.6 × 30mm
- Weight220g

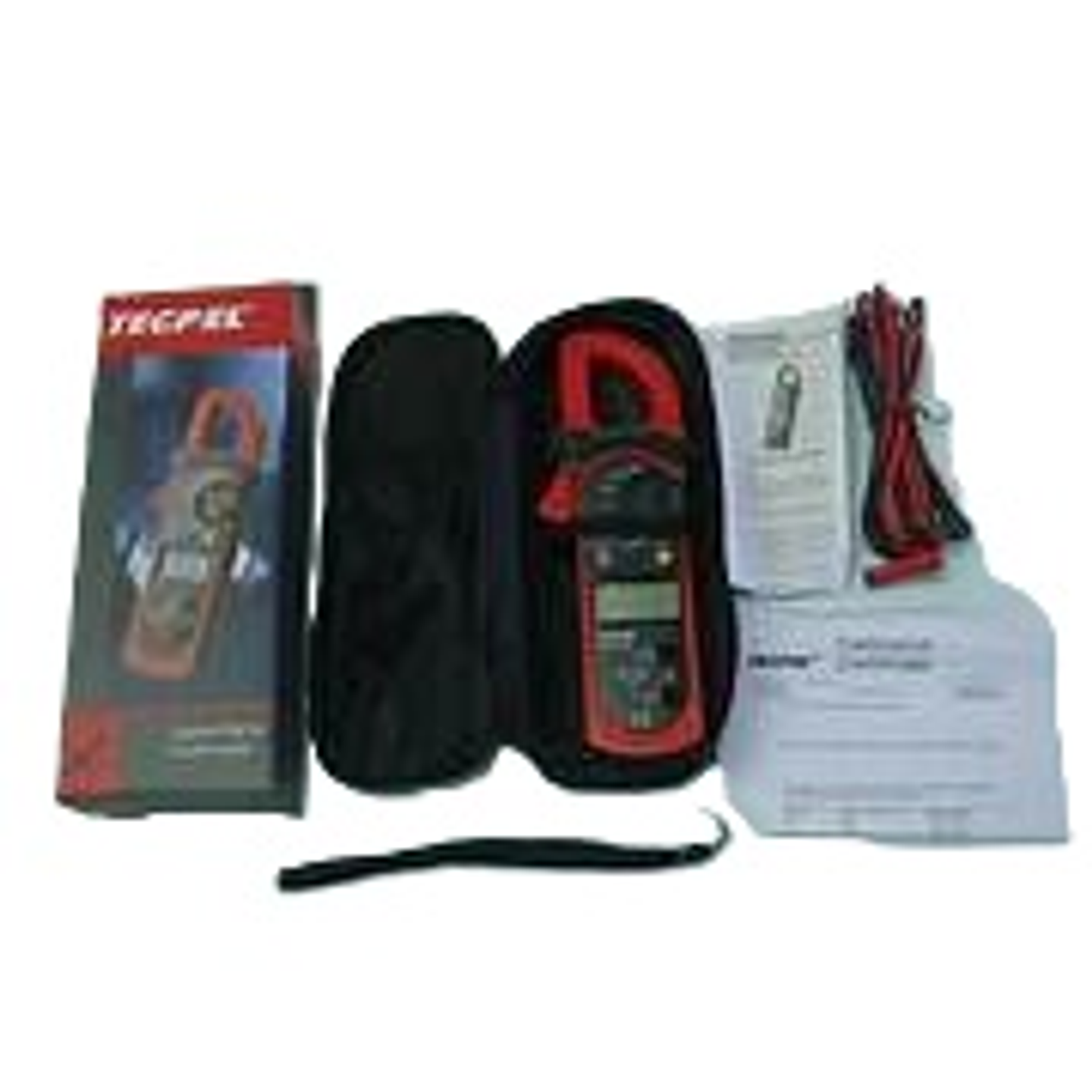

- AccessoryTest Lead、 Temperature measuring probe、 Battery x2、 Carrying Bag、Manual
