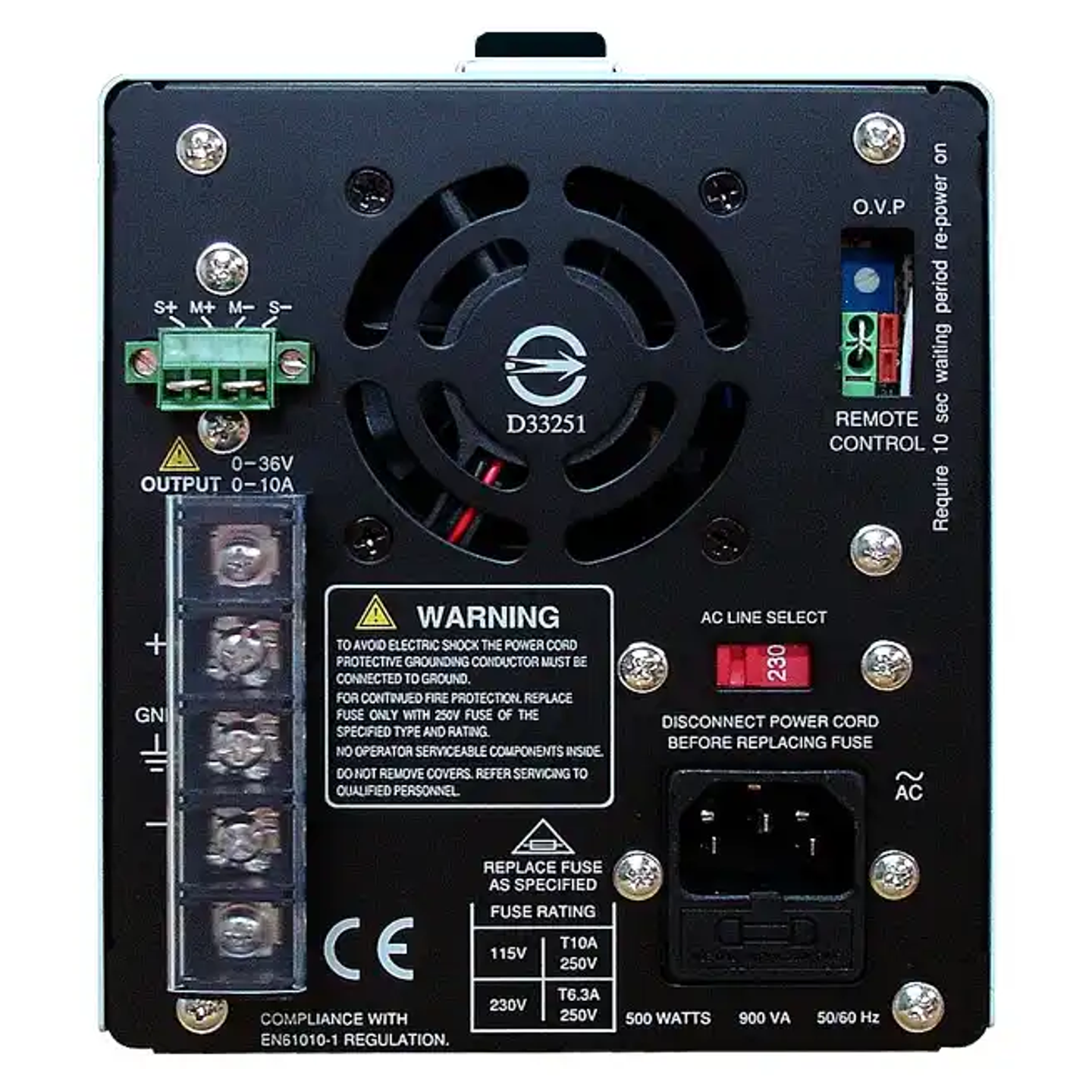

GWinstek DC Power Supply SPS-3610 0~36V 0~10A Switching mode Single Output

Brand GWINSTEK | Model SPS-3610 | 🇨🇳 China

Features Dual Measurement Display 0.01 % High Regulation Constant Voltage and Constant Current Operation High Efficiency High Power Density Over Voltage Protection Remote Output ON/OFF Control

Out of Stock

The SPS-Series is a single output, 360W, switching DC power supply. OVP protects the SPS-Series and their loads from unexpected conditions. High regulation is maintained at 0.01%. Remote sensing adds an extra level of precision by compensating cable losses between loads. Turning the output On/Off from an external device is available through remote control terminals. The SPS-Series is an ideal solution for power-efficient bench-top or portable applications requiring high regulation. Features Dual Measurement Display0.01 % High RegulationConstant Voltage and Constant Current OperationHigh EfficiencyHigh Power DensityOver Voltage ProtectionRemote Output ON/OFF Control

Display0 to 36 V
Output Voltage0 to 10A
Output CurrentIndependent output
Voltage Limit Regulation Rate≦0.01%+3mV
Voltage Load Regulation Rate≦0.01% + 5mV (Rated current ≦6A) ; ≦0.01% + 8mV (Rated current ≦12A)
Current Limit Regulation Rate≦3mArms
Current Load Regulation Rate≦0.2% + 3mA
Voltage Ripple≦0.2% + 3mA
Current Ripple5V±0.25V
Response Time3A
Temperature Coefficient≦100 ppm/°C
Accuracy±(0.5% of rdg + 2 digits)
Insulation Resistance機殼與端子：20MΩ 或以上 (DC 500V)；機殼與電源線：30MΩ 或以上 (DC 500V)
