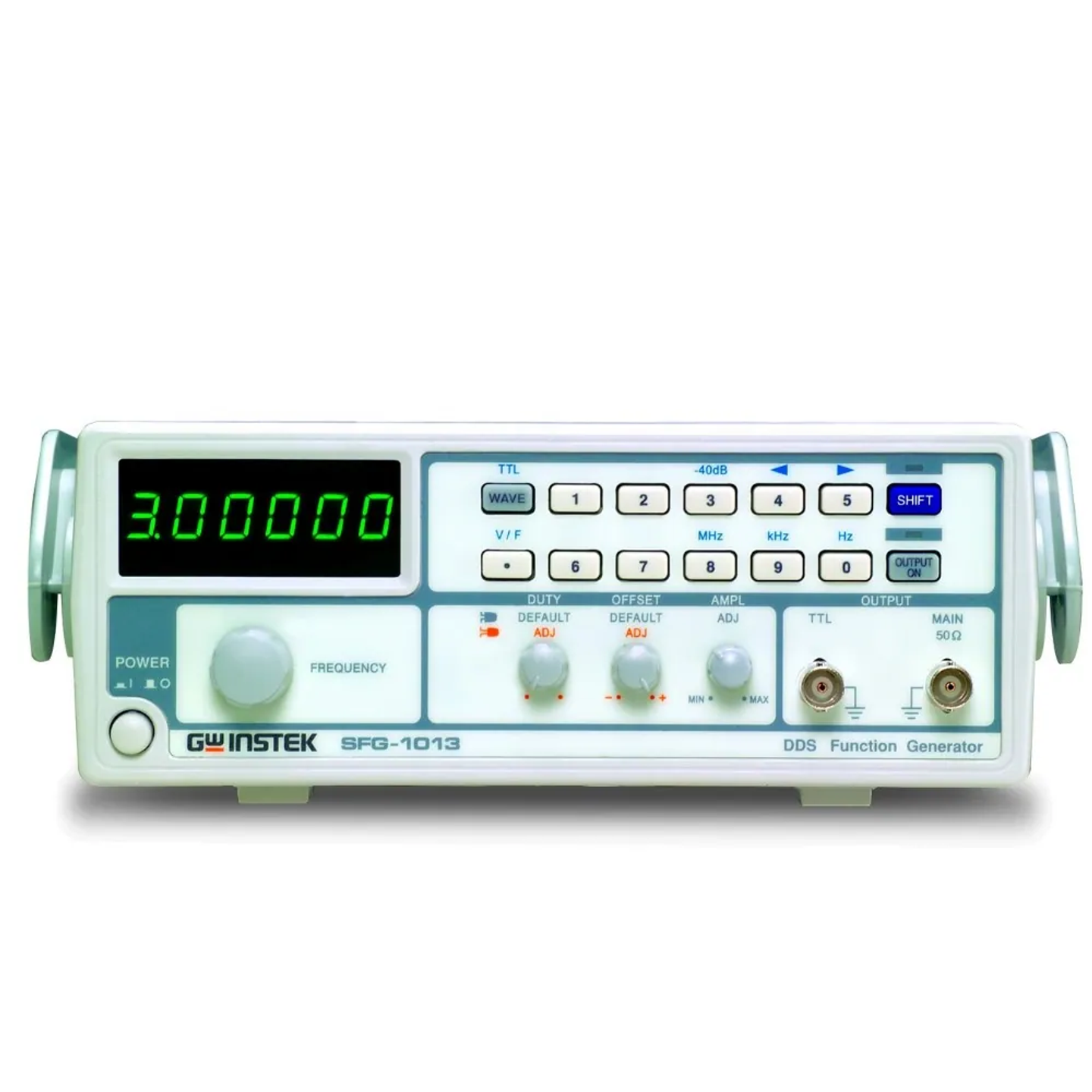

SFG-1013, 3MHz DDS Function Signal Generator w/Voltage Display
Brand
GWINSTEK
|
Model
SFG-1013
|
🇨🇳 China
• Designed with DDS technology and FPGA chips
• Output frequency range up to 3MHz
• Features a voltage display
• High precision and stability in signal output
• Suitable for electronic testing, communication, and audio testing applications
Out of Stock
Views: 45
Description
The SFG-1013 is a function signal generator designed based on DDS (Direct Digital Synthesis) technology and FPGA chips, providing high precision and stability in signal output. With a frequency range of up to 3MHz and a voltage display feature, users can monitor the output voltage in real-time. This instrument is widely used in electronic testing and laboratory research, making it ideal for applications that require high-precision signal generation, such as communication, audio testing, and various electronic engineering projects.
Specifications
- Accuracy6位數LED
- Sound Frequency3MHz
- Channels單通道輸出
- Amplitude Range10Vp-p
- Linearity大於98%在 0.1~100k Hz; 大於95%在 100k~1M Hz
- Sine Wave0.1~3M Hz，誤差 ±20 ppm
- Triangle Wave0.1~1M Hz，誤差 ±20 ppm
- Square Wave0.1~3M Hz，誤差 ±20 ppm
Features
- Signal Output大於 3Vp-p
- Frequency3MHz
Attributes
- Operating Temperature0~40 °C / Humidity below 90%RH (non-condensing)
- Storage Temperature0~70 °C / Humidity below 70%RH (non-condensing)
- Altitude LimitBelow 2,000 meters
- Power SupplyUser manual, power cord, signal output cable
- Dimensions275 x 90 x 300 mm
- Weight約2.5公斤(kg)
- Accessories使用說明書，電源線，信號輸出線
