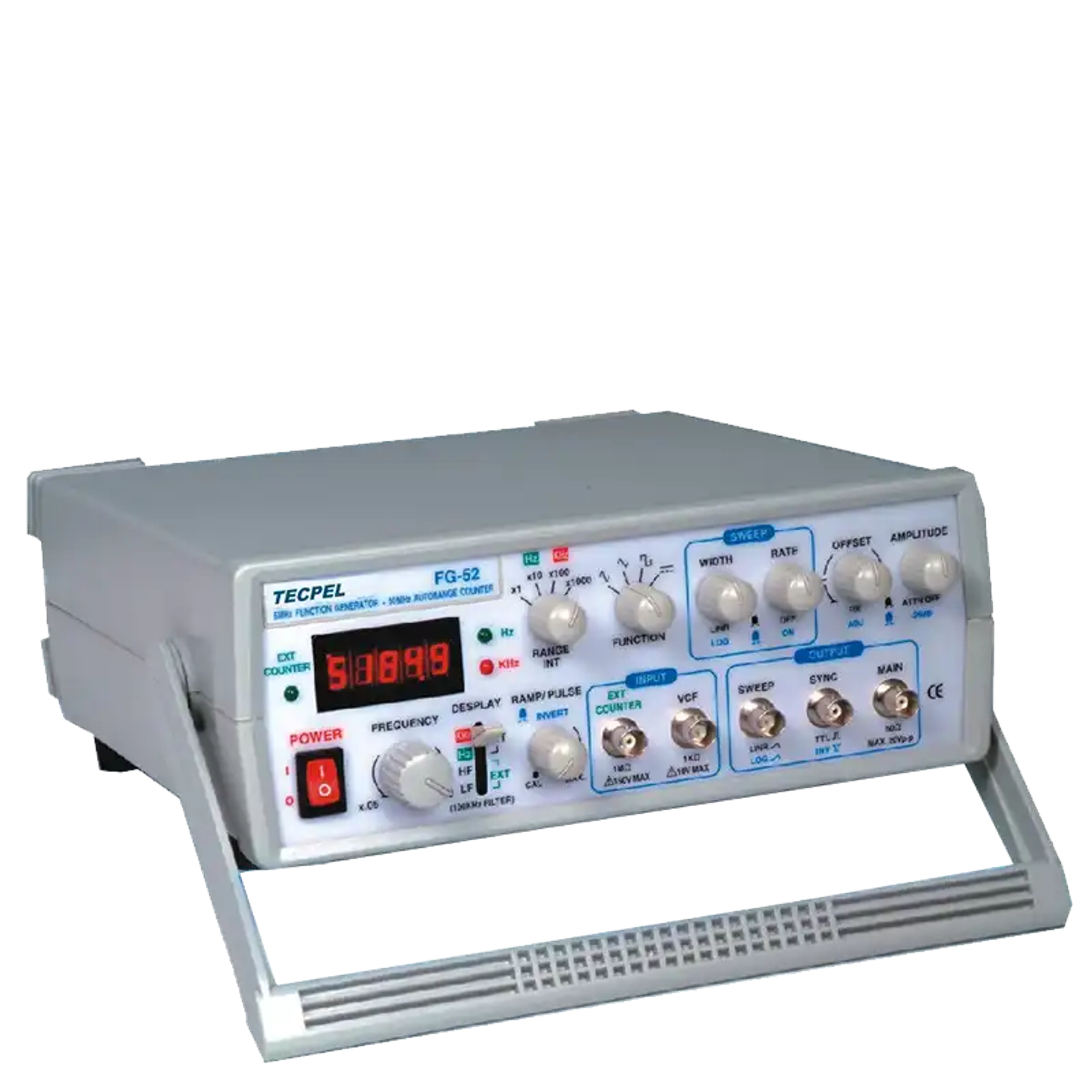

5MHz Function Signal Generator
Brand
TECPEL
|
Model
FG-52
|
🇹🇼 Taiwan
The FG-52 generates multiple waveforms such as sine, triangle, and square waves, featuring:
- Frequency range: 5MHz
- Single channel output
- High stability: 0.1% (after 15 minutes of power-on)
- Accuracy: 5-digit LED display
- Easy to use, suitable for laboratory and educational applications
Out of Stock
Views: 51
Description
The FG-52 is a powerful **function signal generator** capable of producing various waveforms, including sine, triangle, and square waves. It is widely used in electronic testing and signal simulation with a frequency range of up to 5MHz. With high stability and accuracy, it is ideal for laboratory and educational purposes. Its user-friendly design meets various electronic experiment needs.
Specifications
- Accuracy5位數LED
- Sound Frequency5MHz
- Channels單通道輸出
- Stability0.1% (於開機15分鐘後)
- Frequency20MHz ±(0.02%+1)
- Triangle Wave0.05~5M Hz，誤差＜1%(1Hz~100KHz)
- Sine Wave0.05~5M Hz，誤差＜1%(1Hz~100KHz)
- Square Wave0.05~5M Hz，誤差＜1%(1Hz~100KHz)
Features
- Auto Counter50MHz
- 外部計頻輸入阻抗1M Ω
Attributes
- Operating Temperature0~40 °C / lower than 90%RH without dew。
- Storage Temperature00~60 °C / lower than 70%RH without dew。
- Altitude LimitLower than 2,000 meters
- Power SupplyMax 25Ｗ (Watt)
- Dimensions275 x 90 x 300 mm
- WeightApprox. 2.5(kg)
- AccessoriesInstruction manual, power cord, signal output line
