AFG-2225 Dual-Channel Arbitrary Function Generator

Brand GWINSTEK | Model AFG-2225 | 🇨🇳 China

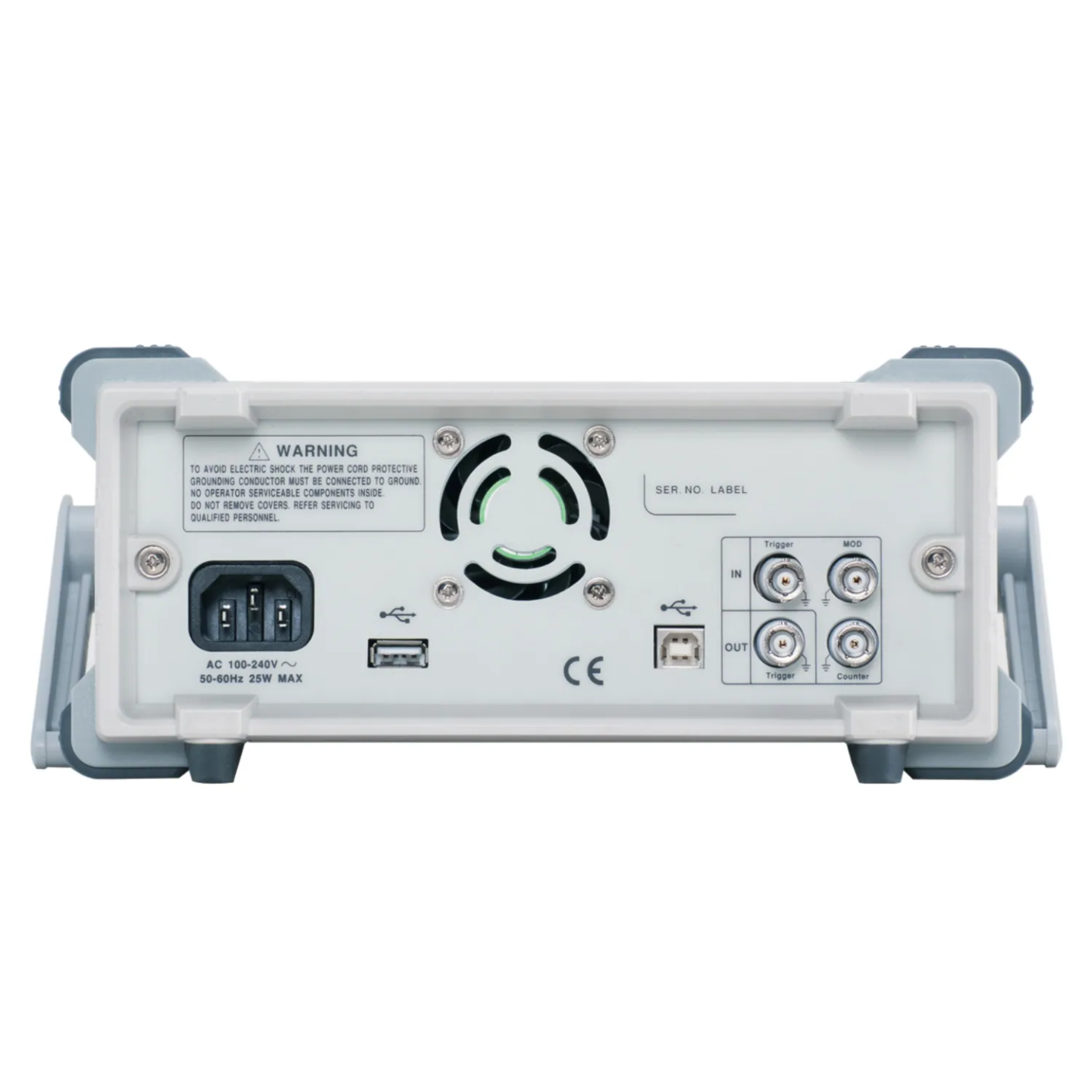

AFG-2225 Dual-Channel Arbitrary Function Generator
AFG-2225 - 1
AFG-2225 - 2
The AFG-2225 is a dual-channel arbitrary function generator with the following features: - Frequency range: 1uHz to 25MHz - Dual-channel simultaneous output, up to 10Vpp amplitude - Supports 7 standard waveforms and 120 arbitrary waveforms - Sampling rate up to 120MSa/s, 10-bit resolution - USB Host/Device interface for waveform reconstruction and remote control - Modulation types: AM/FM/PM/FSK/SUM - 3.5-inch color LCD display with WYSIWYG editing - Duty cycle adjustable from 0.001% to 99.999%
Out of Stock
Views: 45

Description

The AFG-2225 Dual-Channel 25MHz Arbitrary Function Generator is the first dual-channel signal generator launched by GW Instek. Utilizing advanced DDS technology, it generates various waveforms, including sine, square, triangle, and arbitrary waveforms. With a full frequency resolution of 1uHz and output amplitude up to 10Vpp, it meets diverse testing and application needs. Its user-friendly interface and powerful editing functions allow users to easily create and modify required signal waveforms, equipped with rich modulation and scanning capabilities, making it particularly suitable for communication applications.

Specifications

  • Display4.3" TFT LCD, WVGA(480×277)
  • Sound Frequency1uHz~25MHz
  • Channels2通道
  • Sampling Rate1.2GS/s, 300MS/s(DDS模式)
  • Accuracy±20 ppm
  • Signal OutputSine, Square, Ramp, Harmonic, Pulse, Noise, DC, Arb, AM、FM��ASK、FSK、
  • Resolution16位元
  • Sine Wave1μ~25M Hz
  • Square Wave1μ~25M Hz
  • FrequencyPeriod 40ns~2000s, Pulse Width 20ns~1999.9s, Overshoot <5%, Jitter 20ppm +10ns
  • Triangle Wave1μ~3M Hz
  • Harmonics1μ~25M Hz
  • Waveform1μ~15M Hz
  • Sound Level25M Hz (-3dB)
  • Internal I/O Frequency Range10MHz±50Hz
  • Output VoltageTTL兼容
  • External I/O Frequency Range10MHz±50Hz
  • External I/O Impedance50Ω

Features

  • Waveform7種標準波型
  • Overshoot< 2%
  • Duty Cycle0.001% ~ 99.999%
  • Symmetry週期 1% + 4ns
  • CommunicationUSB Host、USB Device
  • Interface英/中
  • Frequency1uHz to 25MHz
  • Input Coupling交流/直流

Attributes

  • Operating Temperature0 to 40 °C / lower than 90%RH without dew。
  • Storage Temperature-20 to 60 °C / lower than 60%RH without dew。
  • Altitude LimitLower than 2,000 meters
  • Power SupplyAC100 to 240V，50/60Hz , 100 ~ 120Vrms (± 10%), 400 Hz
  • Dimensions266(W) x 107(H) x 293(D) mm
  • WeightApprox. 2.5kg
  • AccessoriesGTL‐101× 2, Quick Start Guide ×1 CD (user manual + software) ×1 Power cord×1
