Discontinued Differential Pressure Tester
Brand
TECPEL
|
Model
PM-731
|
🇹🇼 Taiwan
• Dual LCD display to show two pressure input points simultaneously
• Supports differential pressure calculation and individual pressure measurement
• Suitable for HVAC systems and fluid dynamics
• Multiple pressure units available: InWC, mmWC, mbar, psi
This product has been discontinued. Specifications and documents remain available for reference, but ordering is no longer possible. Please contact our sales team for alternatives.
Views: 56
Description

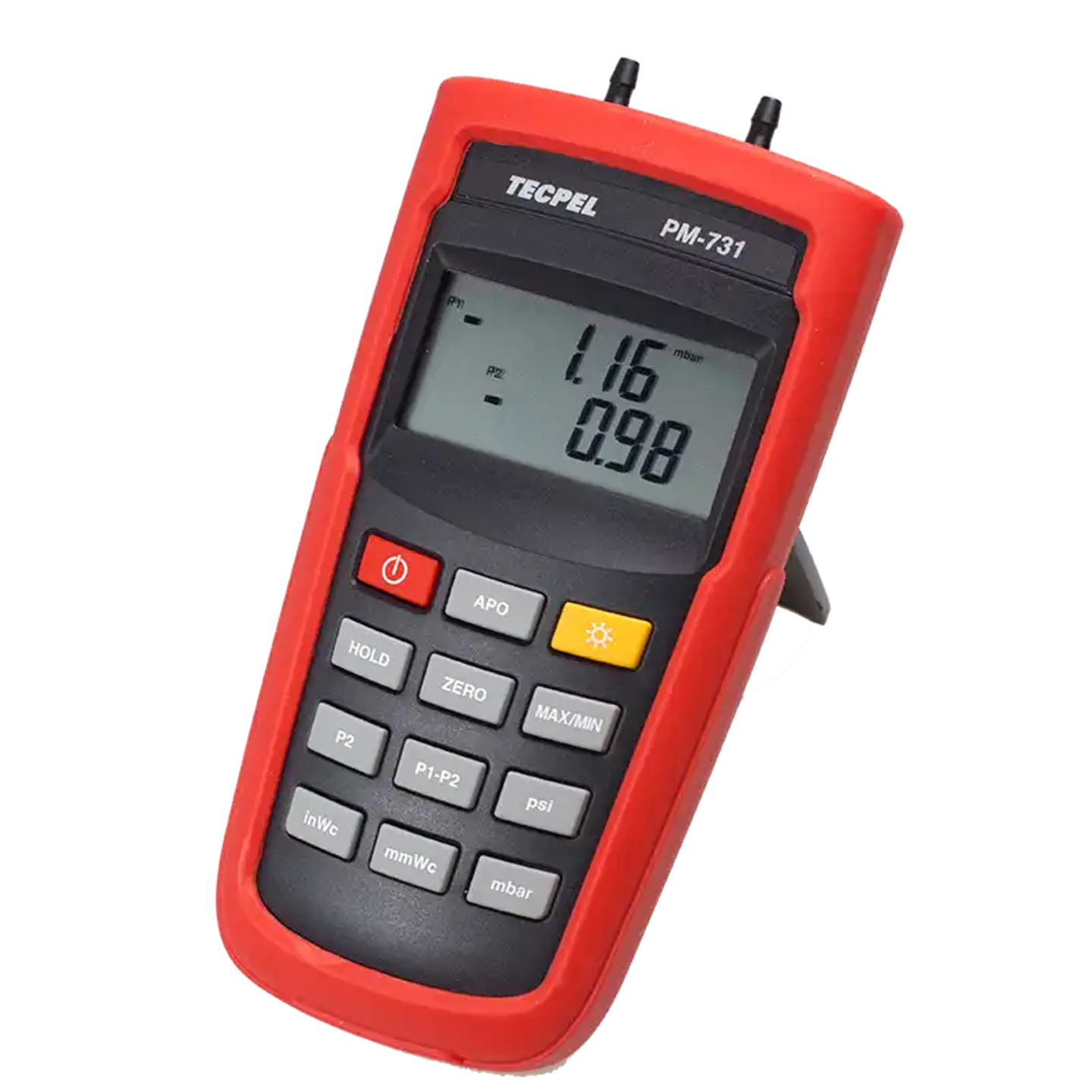

The PM-731 Differential Pressure Tester features a dual LCD display, allowing simultaneous visualization of the pressure difference between two input points, providing users with an intuitive and convenient interface. This device effectively calculates differential pressure and can also measure the pressure of each input point individually, making it ideal for applications in HVAC systems, fluid dynamics, and other scenarios requiring precise pressure measurements.
Specifications
- Display Counts4位數
- 英寸水柱±60.00 InWC
- 毫米水柱±1500.0 mmWC
- 毫巴±150.00 mbar
- 磅每平方英寸±2.0000 psi
- Operating Temperature0~50°C (32°F to 122°F)
- Pressure UnitInWC, mmWC, mbar, psi
- Accuracy±1.5% FS 23°C±5°C
Features
- 雙顯示液晶畫面同時顯示兩個壓力輸入點
- 壓差計算支援壓差計算及單獨壓力測量
- Applications適用於 HVAC 系統及流體動力學
- Pressure Unit多種選擇，包括 InWC, mmWC, mbar, psi
Attributes
- Operating Temperature0~50°C / lower than 70%RH without dew。
- Storage Temperature0~50 °C / lower than 80%RH without dew。
- Altitude LimitLower than 1,000 meters
- Power Supply1.5V Battery (AAA) x 4
- Battery Life200 hours
- Dimensions171(H) x 83(W) x 40(D) mm
- Weight230g
- AccessoriesBattery, Hose, CD, Manual
