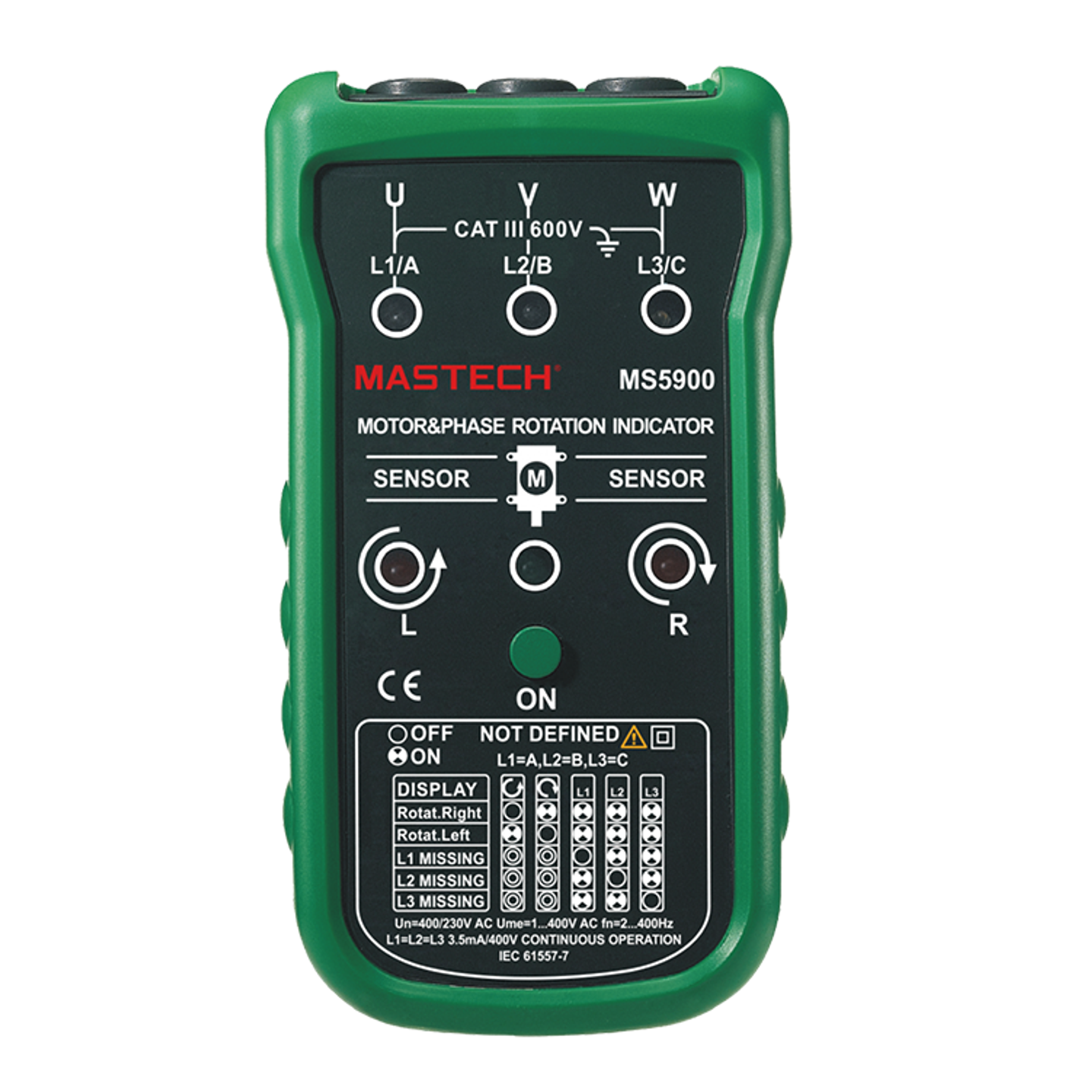

MS5900 three-phase motor phase sequence test/rotation direction indicator
Brand
MASTECH
|
Model
MS5900
|
🇨🇳 China
MASTECH MS5900 can indicate an open circuit phase sequence and a three-phase phase meter. It is suitable for use in three-phase power equipment such as motors.
Price
NT$ 1,365
Out of Stock
Views: 0
Description
MASTECH MS5900 three-phase motor phase sequence test/rotation direction indicator is a tool specially designed for testing three-phase AC motors. It determines the motor's phase sequence (ABC phase sequence) and direction of rotation without actually touching the motor cable. This testing tool ensures the motor is operating correctly and helps avoid damage or performance issues caused by incorrect connections. MS5900 is a very practical tool, especially suitable for industrial maintenance and installation situations, to help ensure the stable operation of motor systems.
Specifications
- Nominal Voltage Rotary Direction1~400V AC
- Frequency2~400 Hz
- Test Currents (In per phase) Less than 3.5 mALess than 3.5 mA
- Safety Rating120~400V AC
Features
- Safety RatingSafety Rating : CATIII 600V
Attributes
- Operating Temperature0~50°C / lower than 80%RH without dew。
- Storage Temperature0~50°C / lower than 70%RH without dew。
- Elevation LimitationLower than 2,000 meters
- Dimensions130mmx72mmx32mm / 5.1"x2.8"x1.3"
- Weight193g/0.43lb
- AccessoryTest alligator clips, Battery and User's manual
- Power Supply1x 9 V 6F22 Battery
