Ground resistance Meter
Brand
TECPEL
|
Model
ERT-580
|
🇹🇼 Taiwan
Meets IEC-1010 safety standards
Display resolution up to 0.01 Ω
Wide measurement range suitable for various grounding systems
Designed for power and industrial applications
Out of Stock
Views: 343
Description
The ERT-580 Ground Resistance Meter is designed specifically for measuring grounding resistance, adhering to multiple international safety standards such as IEC-1010 (EN61010). With a display resolution of up to 0.01 Ω, this instrument provides precise measurement results, making it suitable for grounding system testing and maintenance in power, construction, and industrial fields, ensuring safe operation of equipment.
Specifications
- Accuracy1,999 顯示
- Output Current2mA @ 820Hz
- Resistance0.01Ω
- Output Voltage0 ~ 199.9V（50Hz，60Hz）
- Resolution1mA
Features
- Display Resolution0.01 Ω
- Safety Rating符合 IEC-1010
- Applications接地電阻測量
- 電流輸出2mA @ 820Hz
Attributes
- Operating Temperature0 to 40°C (32 to 104 °F) / lower than 80 %RH without dew。
- Storage Temperature-10 to 60 °C (14 to 140 °F) / lower than 80%RH without dew。
- Altitude LimitLower than 1,000 meters
- Power Supply1.5V Battery (AA) x 6
- Dimensions205 x 90 x 55 mm
- Weight572g (Battery included)

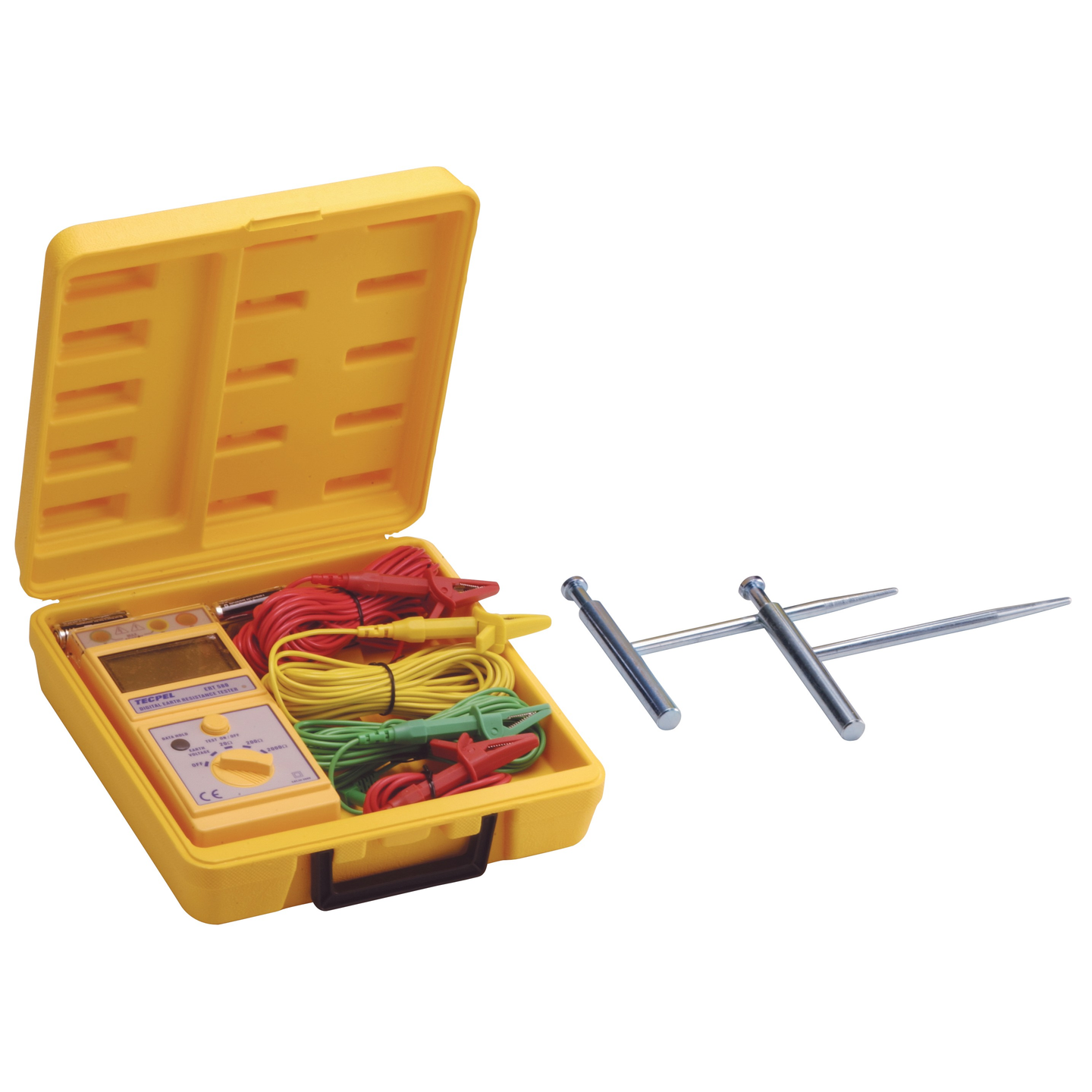

- AccessoriesCarrying box, auxiliary grounding T-shaped nail x2, auxiliary test lead (red-15M, yellow-10M, green-5M long), battery x6, manual
