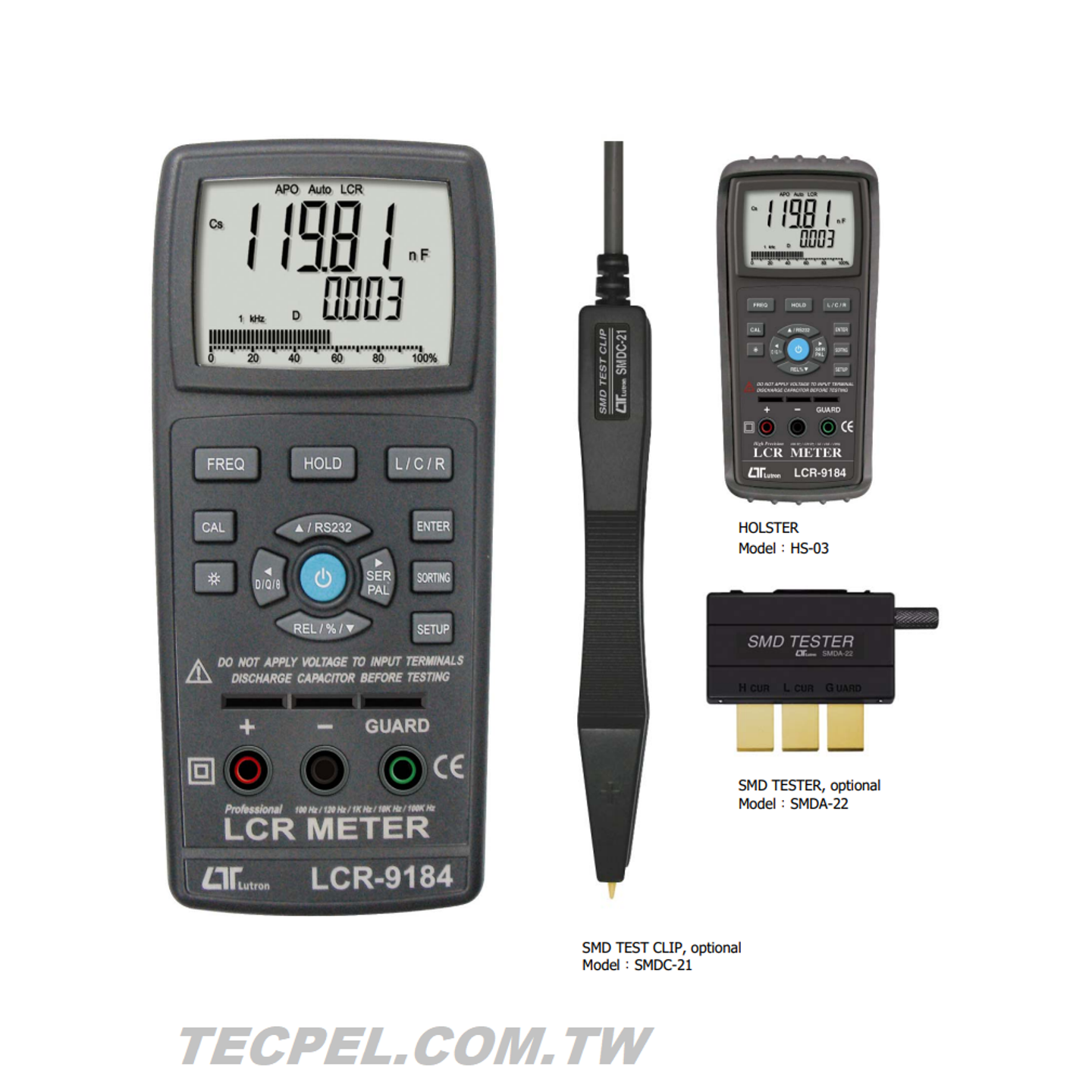

Professional LCR Meter
Brand
LUTRON
|
Model
LCR-9184
|
🇹🇼 Taiwan
Accurate measurement of inductance (Ls/Lp), capacitance (Cs/Cp), resistance (Rs/Rp), and DCR mode.
Dual LCD display with up to 19,999/1,999 counts, suitable for various testing environments.
Supports up to 5 test frequencies: 100 Hz, 120 Hz, 1 KHz, 10 KHz, 100 KHz.
AutoLCR check function for user-friendly operation.
RS232/USB interface for easy data logging and analysis.
Price
NT$ 6,100
Out of Stock
Views: 0
Description
The LCR-9184 is a professional LCR meter designed for testing and analyzing electronic components, providing accurate measurements of inductance, capacitance, and resistance, with support for DCR mode. It features an auto power-off function, making it suitable for laboratory and industrial environments. Its compact and durable design makes it an ideal choice for various testing needs.
Specifications
- 頻率100 Hz、120 Hz、1 KHz、10 KHz、100 KHz
- 量測範圍L: 200.00 uH to 2000.0 H, C: 2000.0 pF to 2.000 mF, R: 20.000Ω to 200.0 MΩ
- 顯示器19,999/1,999 雙顯示屏 LCD
- 電源006P DC 9V電池，或DC 9V轉接器
- 解析度0.1 uH / 0.1 pF / 0.01Ω
Features
- 雙LCD顯示19,999/1,999 counts
- 自動量測包括
- 可選串聯/並聯模式可選
- 頻率是
- 多層電量指示包括
- RS232/USB PC接口支持
- 自動LCR檢查是
- 序列/並聯模式選擇是
- DCR 模式支援是
Attributes
- Operating Temperature0 to 50°C
- Operating HumidityLess than 85% R.H.
- Dimensions193 x 88 x 41 mm
- Weight420 g
- AccessoryInstruction manual, Red and Black Alligator clips
- Power Supply006P DC 9V battery or AC/DC 9V power adapter
- Safety RatingRS232 or USB interface
