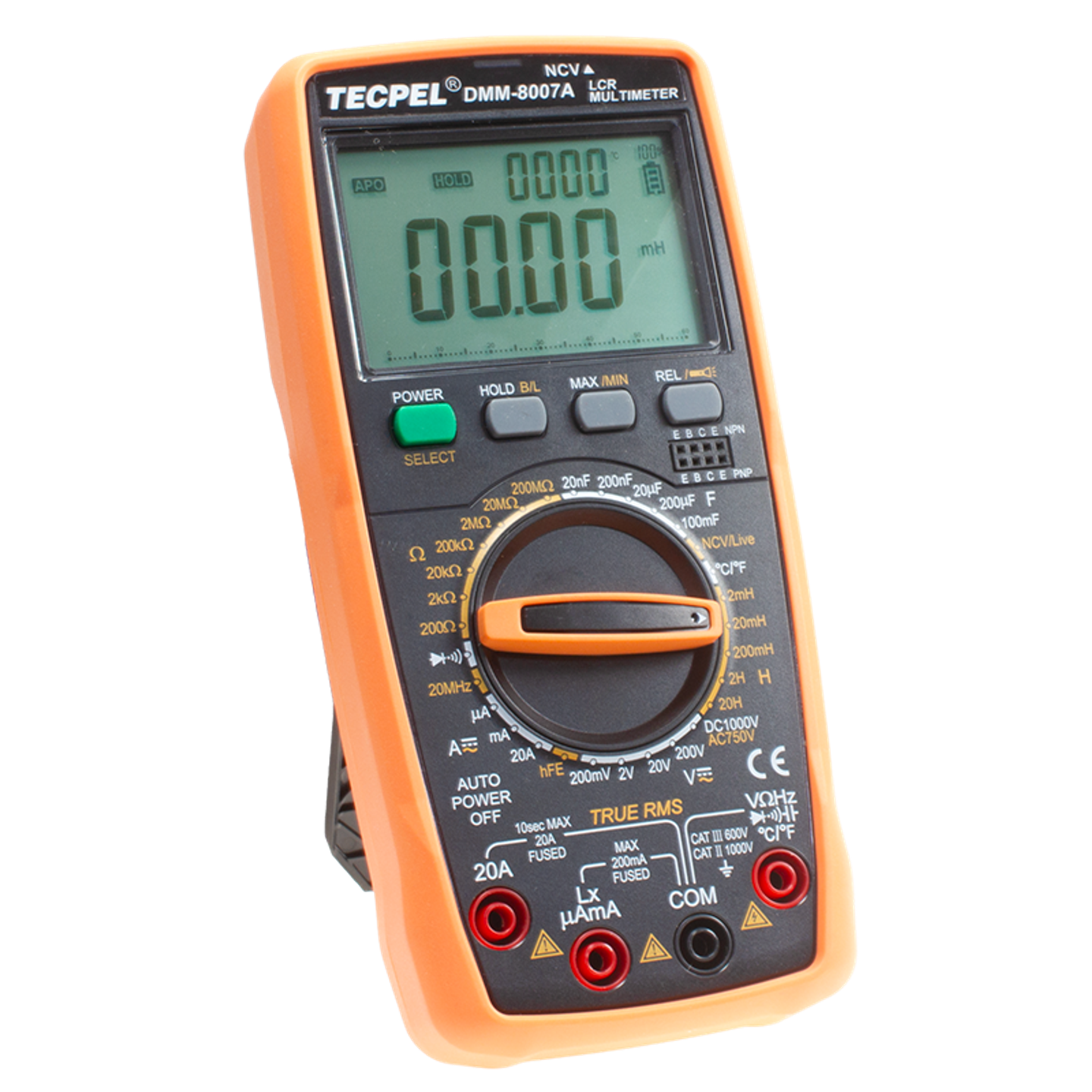

DMM-8007A Digital Multimeter
Brand
TECPEL
|
Model
DMM-8007A
|
🇨🇳 China
Key features of the DMM-8007A include:
- Measurement of DC and AC voltage
- Measurement of DC and AC current
- Resistance, capacitance, and inductance testing
- Frequency range from 40 to 400Hz
- Transistor hFE testing feature
Price
NT$ 1,575
Out of Stock
Views: 84
Description
Product: DMM-8007A, Field: Function Introduction
The DMM-8007A three-in-one digital multimeter is a handheld digital meter with a high-precision 1,999-count display, designed for professionals. In addition to measuring DC voltage, DC current, AC voltage, and AC current, it also features capacitance, frequency, logic testing, and transistor hFE testing functions, meeting various measurement needs. It is an ideal tool for engineers and technicians engaged in maintenance and repair.
Specifications
- Display digits1,999 digits
- DC voltageapprox. 300mS
- DC current2mA / 20mA / 200mA / 20A <±(0.8%+10)>
- AC voltage200mV / 2V / 20V / 200V / 750V <±(0.8%+5)>
- AC current2mA / 20mA / 200mA / 20A <±(1.0%+15)>
- Frequency range40~400Hz
- Resistance200 / 2k / 20k / 200k / 2M / 20M / 200M Ω <±(0.8%+3)>
- Capacitance20n / 200n / 2u / 20u / 200u F <±(3.5%+20)>
- Inductance2m / 20m / 200m / 2 / 20 H
- Frequency10 / 100 / 1K / 10K / 100K / 1M / 20M Hz <±(1.0%+10)>
- Operating temperature-20~1,000 °C (0~1,832) <±(1.0%+5)>
Features
- Input impedance10MΩ
- Transistor hFE testSupported
- Logic testSupported
Attributes
- Operating temperature-10~60 °C / below 75%RH and no condensation
- Storage temperature0~40 °C / below 75%RH and no condensation
- Altitude limitbelow 1,000 meters
- Power supplyDC 9V battery*1
- External dimensions190 x 86 x 27.5 mm
- Weightapprox. 482 g (without battery)
- Accessoriestest leads, battery, protective case, temperature probe, instruction manual
