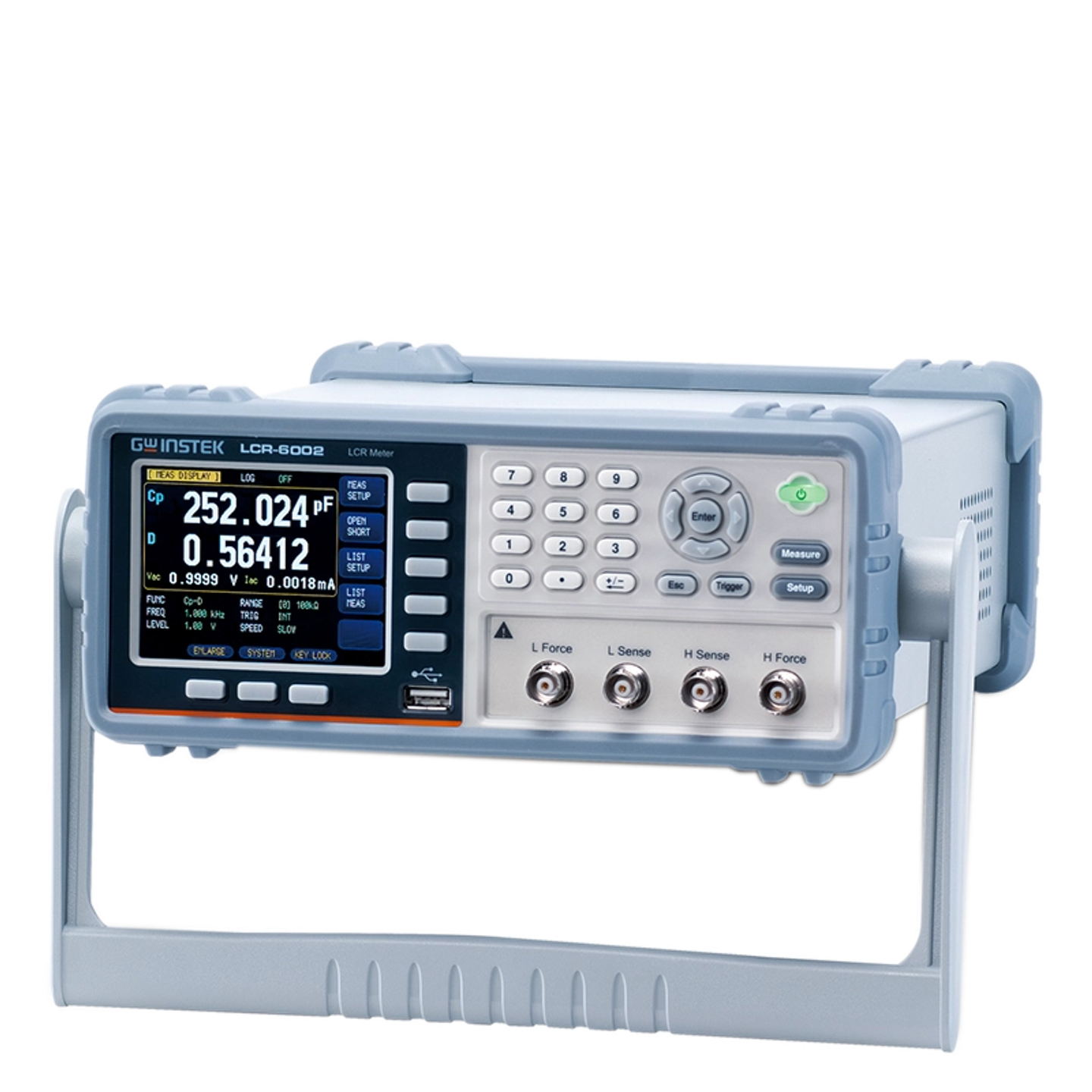

2KHz Desktop LCR Meter
Brand
GWINSTEK
|
Model
LCR-6002
|
🇹🇼 Taiwan
• 3.5-inch color LCD display for intuitive operation
• Simultaneously displays up to four measurement results
• Measurement range: Capacitance 0.00001pF ~ 9999.99F
• Testing frequency up to 2KHz
• Supports automatic and manual measurement modes
• Provides PASS/FAIL judgment, enhancing testing efficiency
• Multiple testing speed options
Out of Stock
Views: 52
Description
The LCR-6002 is a high-performance desktop LCR meter designed for precise measurements of capacitance, inductance, and resistance. Featuring a 3.5-inch color LCD display, it offers an intuitive interface that can simultaneously show up to four measurement parameters, enhancing work efficiency. This instrument can output test signals up to 2KHz and has a high sensitivity, capable of measuring capacitance values as low as 0.00001pF, making it ideal for electronic component testing and quality control. Its fast testing speed and various measurement modes allow users to quickly obtain accurate measurement data.
Specifications
- Display9999 位數
- Signal Output10 ~ 2K Hz
- Capacitance0.00001p ~ 9999.99 F
- Inductance0.00001μ ~ 999.999 H
- Resistance0.00001 ~ 99.9999M Ω
- Conductivity Range0.00001μ ~ 999.999 S
- 直流阻抗準位2V, 0.066A(MAX), 輸出內阻 30Ω
- Test Speed快速:25ms / 中速:100ms / 慢速:333ms
- Test Voltage2V
- Source Output Impedance30Ω / 50Ω / 100Ω 可選
Features
- Operating Mode自動、手動
- Trigger ModeINT、MAN、EXT、BUS
- Simultaneous MeasurementL-RDC
- 自動 LCZON / OFF
Attributes
- Operating Temperature0 to 40°C / lower than 75%RH without dew。
- Storage Temperature5 to 40°C / lower than 85%RH without dew。
- Warm-up TimeRecommended more than 60 minutes
- Safety RatingAC 100V to 240V, 50/60Hz
- Power ConsumptionMax 15W
- Dimensions265(W) x 107(H) x 312(D) mm
- Weight3600g
