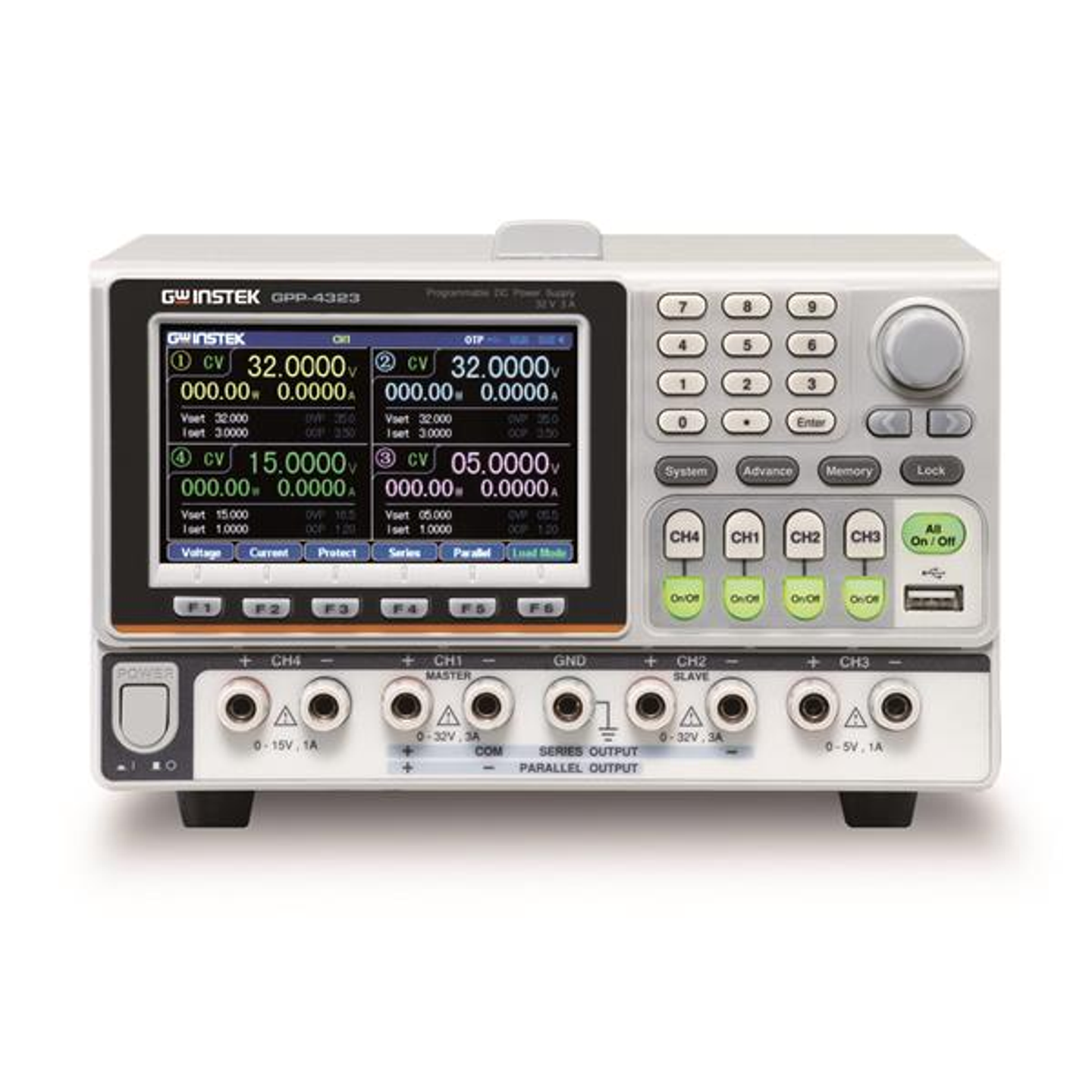

GPP-4323 Three Channel DC Power Supply

Name: GWINSTEK GPP-4323 Three Channel DC Power Supply
Brand: GWINSTEK
SKU: GPP-4323

Brand GWINSTEK | Model GPP-4323 | 🇹🇼 Taiwan

The maximum output power of the GPP series is 217W. The multi-channel programmable DC power supply includes four models: GPP-1326 single channel (0~32V / 0~6A), GPP-2323 dual channel (CH1: 0~32V / 0~3A , CH2: 0~32V / 0~3A), GPP-3323 three channels (CH1: 0~32V / 0~3A, CH2: 0~32V / 0~3A, CH3: 1.8V, 2.5V, 3.3V, 5.0 V / 5A), GPP-4323 four channels (CH1: 0~32V / 0~3A, CH2: 0~32V / 0~3A, CH3: 0~5V / 0~1A, CH4: 0~15V / 0~1A ). This series not only provides programmable high resolution (1mV / 0.1mA) and readback resolution (0.1mV / 0.1mA), but also has the best low ripple noise characteristics ≤350uVrms/≤2mArms, transient output response time ≤50uS, providing independent output switches for each channel.

Out of Stock

4.3" TFT LCD screen Supports setting value, measured value and waveform output display E-Load function (CC, CV, CR mode) Setting resolution: 1mV/0.1mA; readback resolution: 0.1mV/0.1mA Low ripple noise: ≦350uVrms/ ≦2mArms Transient response time: ≦50uS Hardware design OVP/OCP/OTP protection Delay/output monitoring/output recording function Intelligent temperature-controlled fan design effectively reduces noise Sequence output function and built-in 8 sets of model waveforms Output recording function records output voltage and current parameters (minimum recording interval 1 second) Provides 10 sets of internal memory per sequence/delay/record/panel setup condition Standard interface: RS-232, USB, Ext I/O; Optional: LAN, GPIB+LAN Compatible with GPD-x303S series instructions

Channels2
InterfaceIndependent output
Regulation rate (CC)Linear regulation rate ≦0.2%+3mA Load regulation ≦0.2%+3mA
Regulation rate (CV)Linear regulation rate ≦0.01%+3mV Load regulation rate ≦0.01%+3mV (rated current ≦3A); ≦0.02%+5mV(rated current＞3A)
Output Voltage≦2mArms
Current Limit Regulation Rate≦0.2% + 3mA
Rated OutputCH1, CH2: 0~32V/3A; CH3: 0~5V/1A; CH4: 0~15V/1A
Series Tracking Voltage0~64V
Parallel Tracking Current0~6A
Regulation (CV) Line Regulation≦0.01%+3mV
Resolution0.1mA
Setting Accuracy Voltage≦±(0.03%+10mV)
Setting Accuracy Current≦±(0.30%+10mA)
Displayed Power0~50.00W
Displayed Voltage1~33.00V
Displayed Current0~3.200A
CR Mode Setting Range1~1kΩ
Safety RatingAC100V/120V/220V/230V±10%, 50/60Hz

ChannelsThree channel
Series and ParallelAutomatic series and parallel function
Resolution0.1mV Current resolution 0.1mA Setting accuracy ≦±(0.03%+10mV) ≦±(0.30%+10mA)
External ControlSupported
InterfaceLAN/ GPIB+LAN
