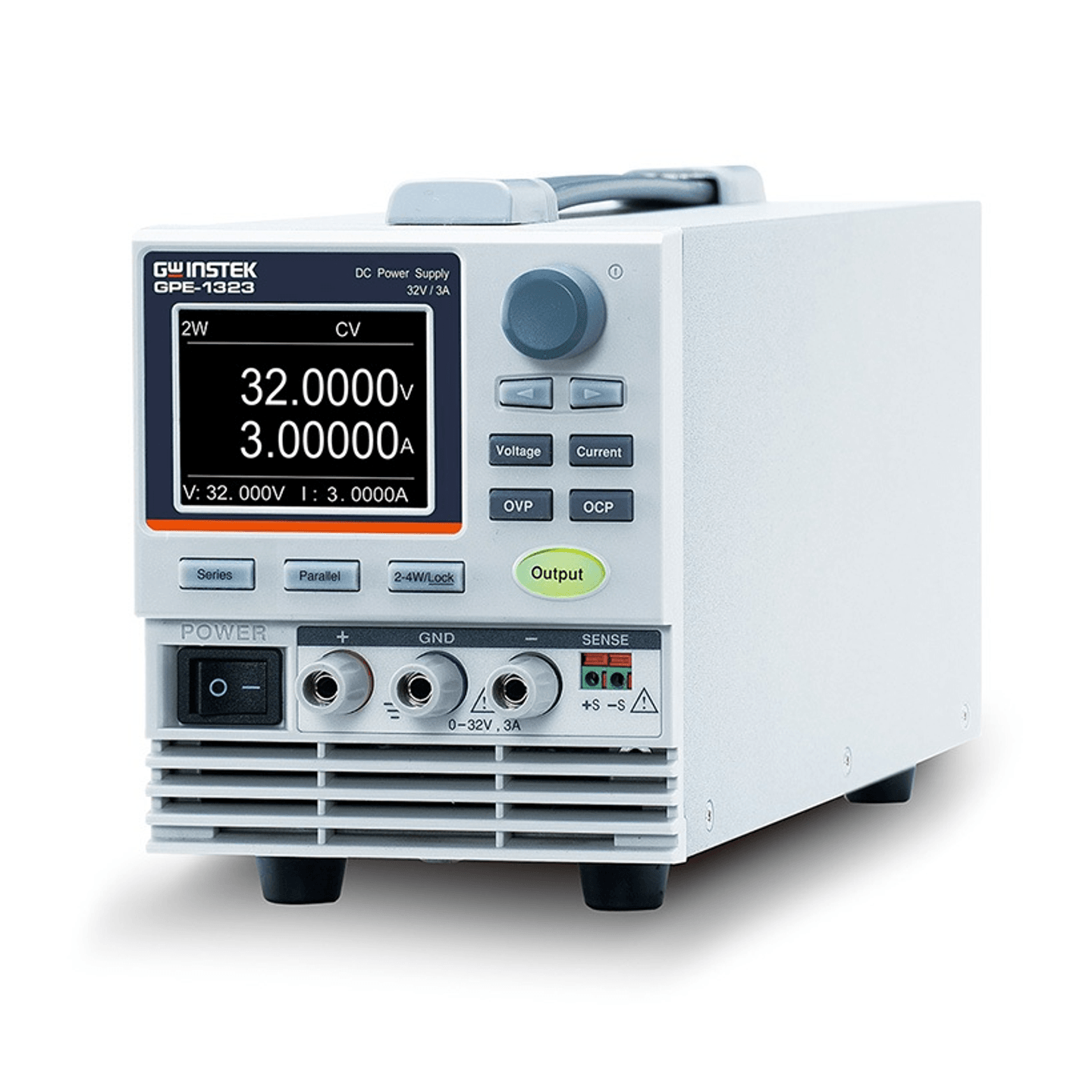

32V/3A Linear DC Power Supply
Brand
GWINSTEK
|
Model
GPE-1323
|
🇹🇼 Taiwan
The GWINSTEK GPE-1323 is a single-channel linear DC power supply with 0~32V / 0~3A output, a 2.4-inch LCD, and voltage/current setting and readback functions for lab, education, and factory test use.
Out of Stock
Views: 7
Description
The GPE-1323 is a GWINSTEK linear DC power supply providing 0~32V / 0~3A output with stable, low-noise performance. It includes an LCD display, output On/Off control, panel lock, over-voltage protection, and over-current protection for R&D, service, education, and production test applications.
Specifications
- Display2.4-inch LCD
- Output Voltage0~32 V
- Output Current0~3 A
- Accuracy±(0.03% of reading + 10mV)
- Voltage Limit Regulation Rate≦0.01%+3mV
- Voltage Load Regulation Rate≦0.01%+3mV
- Current Limit Regulation Rate≦0.2%+3mA
- Current Load Regulation Rate≦0.2%+3mA
- Voltage Ripple≦1mVrms (5Hz~1MHz)
- Current Ripple≦3mArms
Features
- ChannelsSingle channel
- Independent Output SwitchOn/Off switch
- ResolutionSetting and readback 100mV / 10mA; high-resolution setting up to 10mV / 1mA
- Parameter ReadbackSupports voltage/current setting and readback parameter view
- Over Voltage Protection (OVP)Supported, 1.8~35.2 V range
- Over Current Protection (OCP)Supported, 0.15~3.3 A range
- Overload ProtectionOverload and overpower protection
- Panel LockSupported
- External ControlRear-panel Remote Control for output On/Off control
Attributes
- Operating Temperature0~40 °C / indoor use
- Storage Temperature-10~70 °C
- Altitude LimitBelow 2,000 m
- Power SupplyAC 100V/120V/220V/240V, 50/60Hz
- Dimensions107(W) x 124(H) x 313(D) mm
- WeightApprox. 5.2 kg
- AccessoriesStandard power cord, test lead, packing list
