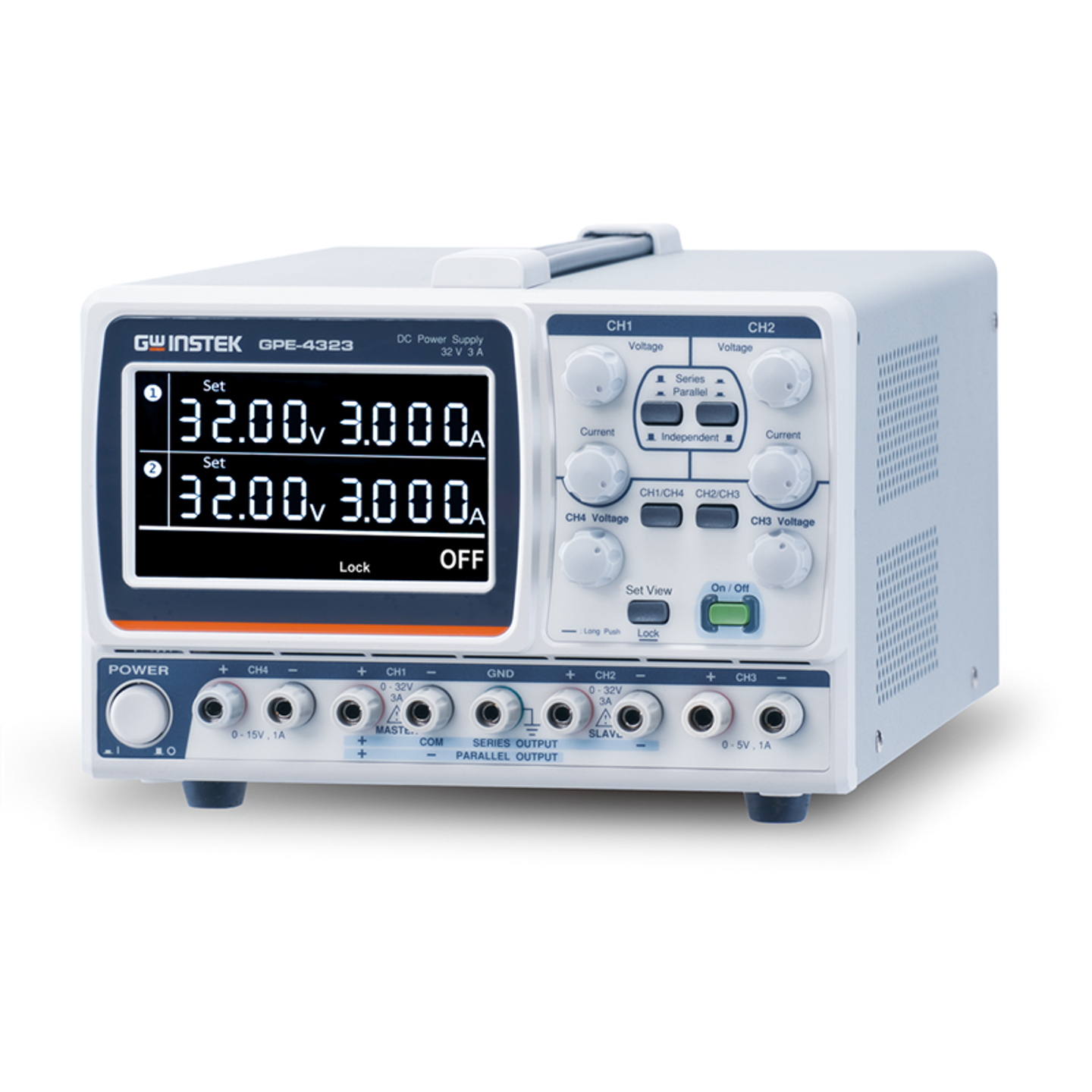

Programmable DC Power Supply
Brand
GWINSTEK
|
Model
GPE-4323
This programmable power supply offers various output configurations and high-accuracy settings, supports dynamic testing applications and provides multiple protection features, suitable for industrial and laboratory use.
Price
NT$ 12,500
Out of Stock
Views: 59
Description
The GPE-4323 is a programmable DC power supply with four output channels, each offering different voltage and current ranges to meet diverse experimental and development needs. It supports tracking mode in series and parallel, suitable for environments requiring high accuracy tests.
Specifications
- Output VoltageCH1, CH2, CH3, CH4
- Output CurrentCH1: 0 ~ 32V / 0 ~ 3A, CH2: 0 ~ 32V / 0 ~ 3A, CH3: 0 ~ 5V / 0 ~ 1A, CH4: 0 ~ 15V / 0 ~ 1A
- Constant CurrentLine regulation ≦0.2% + 3mA, Load regulation ≦0.2% + 3mA, Ripple & Noise ≦3mArms
- Tracking Error≦0.1% + 10mV
- Voltage Limit Regulation RateVoltage: 100mV, Current: 10mA
- Load RegulationVoltage: ±(0.1% of reading +30mV), Current: ±(0.3% of reading +6mA)
- Current Limit Regulation RateChassis to terminal: ≥20MΩ (DC 500V), Chassis to power line: ≥30MΩ (DC 500V)
- Recovery TimeOperating temperature: 0 ~ 40℃, Storage temperature: -10 ~ 70℃, Operating humidity: ≤80% RH, Storage humidity: ≤70% RH
- Power SupplyAC100V/120V/220V ±10%; 230V (+10% ~ -6%); 50/60Hz
- Voltage Ripple210(W) × 155(H) × 306(D) mm ; Approx. 7kg
- Current Ripple≦3mArms
- Insulation Resistance機殼對端子: ≥20MΩ (DC 500V) / 機殼對電源線: ≥30MΩ (DC 500V)
Features
- ChannelsYes
- Output ControlYes
- Independent Output SwitchYes
- ResolutionYes
- Parameter ReadbackYes
- Overload ProtectionYes
- Other Functions具面板鎖功能、智慧型溫控風扇，有效降低運轉噪音
Attributes
- Operating TemperatureCompact design, suitable for laboratory and engineering fields
- Storage TemperatureApprox. 7kg
- Altitude Limit低於 1,000 公尺
- Display4.3 吋 LCD 顯示
- Resolution電壓: 100mV / 電流: 10mA
- Accuracy電壓: ±(0.1% of reading + 30mV) / 電流: ±(0.3% of reading + 6mA)
- Power SupplyAC 100V/120V/220V ±10%; 230V (+10%~-6%), 50/60Hz
- Dimensions210(W) x 155(H) x 306(D) mm
- Weight約 7 公斤
- Accessories電源線、測試線 x3
