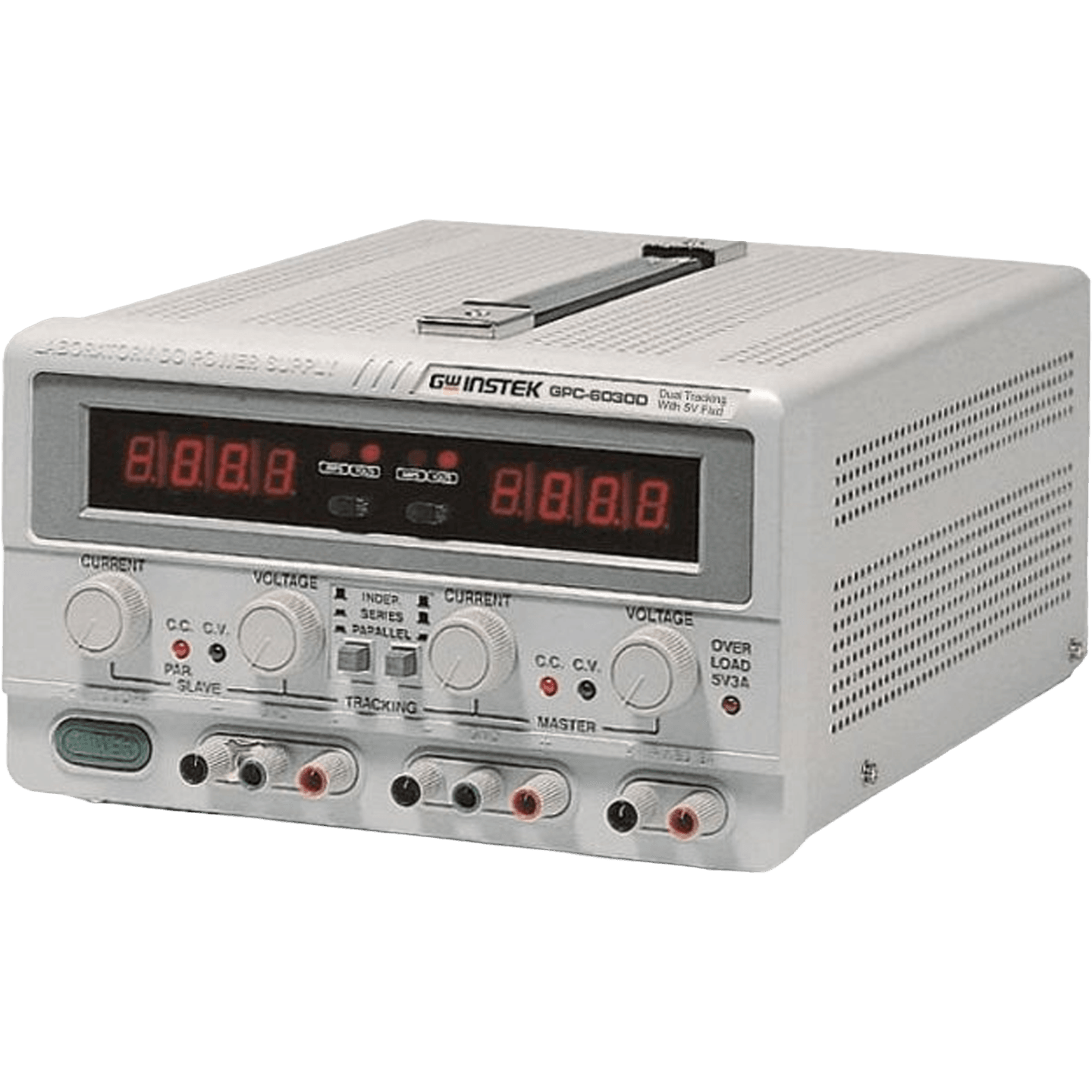

60V/3A DC Power Supply
Brand
GWINSTEK
|
Model
GPC-6030D
|
🇨🇳 China
GPC-6030D 60V/3A three-channel power supply offers:
- Dual channel output of 30V/3A and single channel of 5V/3A
- Convenient dual knobs for adjusting output voltage and current
- Automatic series and parallel functions
- Constant voltage and current limit modes
Out of Stock
Views: 2
Description
The GPC-6030D 60V/3A DC power supply features three-channel outputs with a total power of 195W. It includes overload and polarity reverse protection to safeguard both the power supply and load from accidental damage. With ripple and noise levels below 2mVrms, it's suitable for various pulse current applications and supports continuous or dynamic load selection. Its compact design makes it easy to carry, making it an ideal choice for users requiring low noise and multiple output combinations.
Specifications
- CH1 / CH2 電壓輸出0.0~60.0V
- CH1 / CH2 電流輸出0.00~3.00A
- CH3 輸出5V/3A Max
- 介面獨立輸出 / 串聯模式 / 並聯模式
- 定電壓調節率≦0.01%+3mV
- 電壓負載調節率≦0.01% + 3mV (額定電流≦3A) ; ≦0.01% + 5mV (額定電流≦10A) ; ≦0.02% + 5mV (額定電流≧10A)
- 輸出電壓≦2mVrms
- 限電流調節率≦0.2% + 3mA
- 電流負載調節率≦0.2% + 3mA
- 5V 固定輸出電源調節率≦5mV / 負載調節率≦10mV
- 精確度5V±0.25V
- 輸出電流3A
Features
- 通道數三通道
- 串並聯自動串並聯功能
- 輸出模式定電壓和限電流模式
- 輸出特性低漣波和低雜訊
- 保護功能過載與極性反向保護功能
- 警示功能CC與CV燈恆亮
Attributes
- Operating Temperature0~40°C / lower than 70%RH without dew
- Storage Temperature-10~60 °C / lower than 80%RH without dew
- Elevation LimitationLower than 1,000 meters
- Header Display3 1/2 digits 0.5“ LED display
- Header Accuracy±( 0.5% of rdg + 2 digits )
- Power SupplyAC 100V/120V/220V/240V ±10%, 50/60Hz
- Dimensions255(W) x 145(H) x 420(D) mm
- AccessoryPower Cable、Test Lead x3
