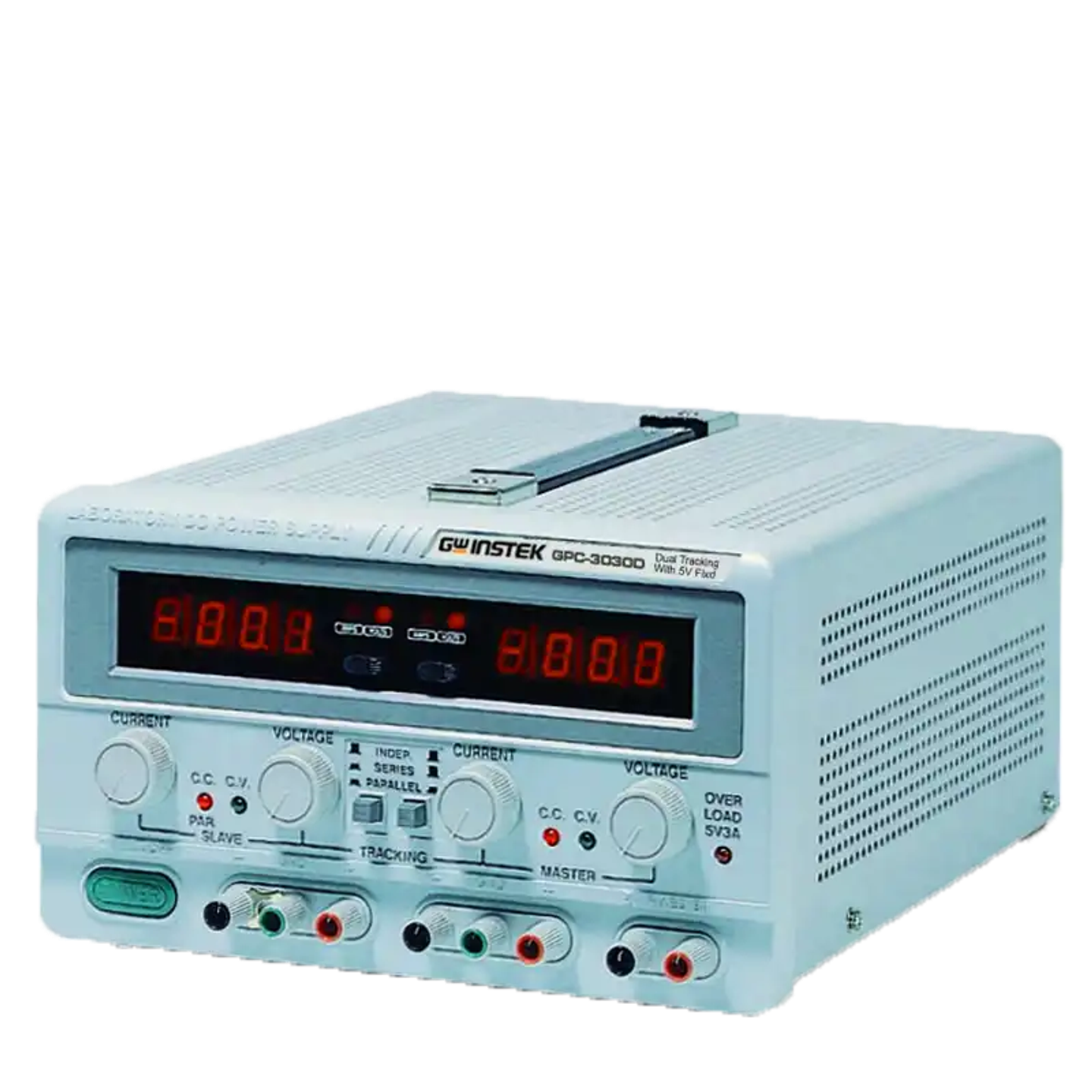

DC Power Supply (30V 3A *2 ; 5V/3A *1)
Brand
GWINSTEK
|
Model
GPC-3030D
|
🇨🇳 China
GPC-3030D three-channel power supply features:
- Dual-channel 30V/3A outputs
- Single-channel 5V/3A output
- Dual knob design for easy voltage and current adjustment
- Built-in overload and reverse polarity protection
- Low ripple and low noise output characteristics
Out of Stock
Views: 0
Description
The GPC-3030D is a three-channel linear DC power supply that delivers up to 195W of power, featuring dual-channel outputs of 30V/3A and a single-channel output of 5V/3A. Its excellent overload and reverse polarity protection ensure the safety of both the power supply and the load. With ripple and noise levels below 2mVrms, it is ideal for pulsed current applications. The GPC series is lightweight and portable, making it an excellent choice for users requiring low noise and multiple output combinations.
Specifications
- CH1 / CH2 電壓輸出0.0~30.0V
- CH1 / CH2 電流輸出0.00~3.00A
- CH3 輸出5V/3A Max
- 介面獨立輸出 / 串聯模式 / 並聯模式
- 定電壓調節率≦0.01%+3mV
- 電壓負載調節率≦0.01% + 3mV (額定電流≦3A) ; ≦0.01% + 5mV (額定電流≦10A) ; ≦0.02% + 5mV (額定電流≧10A)
- 輸出電壓≦2mVrms
- 限電流調節率≦0.2% + 3mA
- 電流負載調節率≦0.2% + 3mA
- 5V 固定輸出電源��節率≦5mV / 負載調節率≦10mV
- 精確度5V±0.25V
- 輸出電流3A
Features
- 通道數三通道
- 串並聯自動串並聯功能
- 輸出模式定電壓和限電流模式
- 輸出特性低漣波和低雜訊
- 保護功能過載與極性反向保護功能
- 警示功能CC與CV燈恆亮
Attributes
- Operating Temperature0~40°C / lower than 70%RH without dew
- Storage Temperature-10~60 °C / lower than 80%RH without dew
- Elevation LimitationLower than 1,000 meters
- Header Display3 1/2 digits 0.5“ LED display
- Header Accuracy±( 0.5% of rdg + 2 digits )
- Power SupplyAC 100V/120V/220V/240V ±10%, 50/60Hz
- Dimensions255(W) x 145(H) x 420(D) mm
- AccessoryPower Cable、Test Lead x3
