Platinum Resistance Temperature Recorder
Brand
TECPEL
|
Model
DTM-386
|
🇹🇼 Taiwan
• Handheld design
• Extremely high measurement accuracy
• Built-in 16,000 data points memory
• USB data download
• Suitable for low-temperature measurements
• Temperature curve visualization
• Automatic shut-off function
• 230 mm probe length
• Safety level OL
Out of Stock
Views: 2
Description

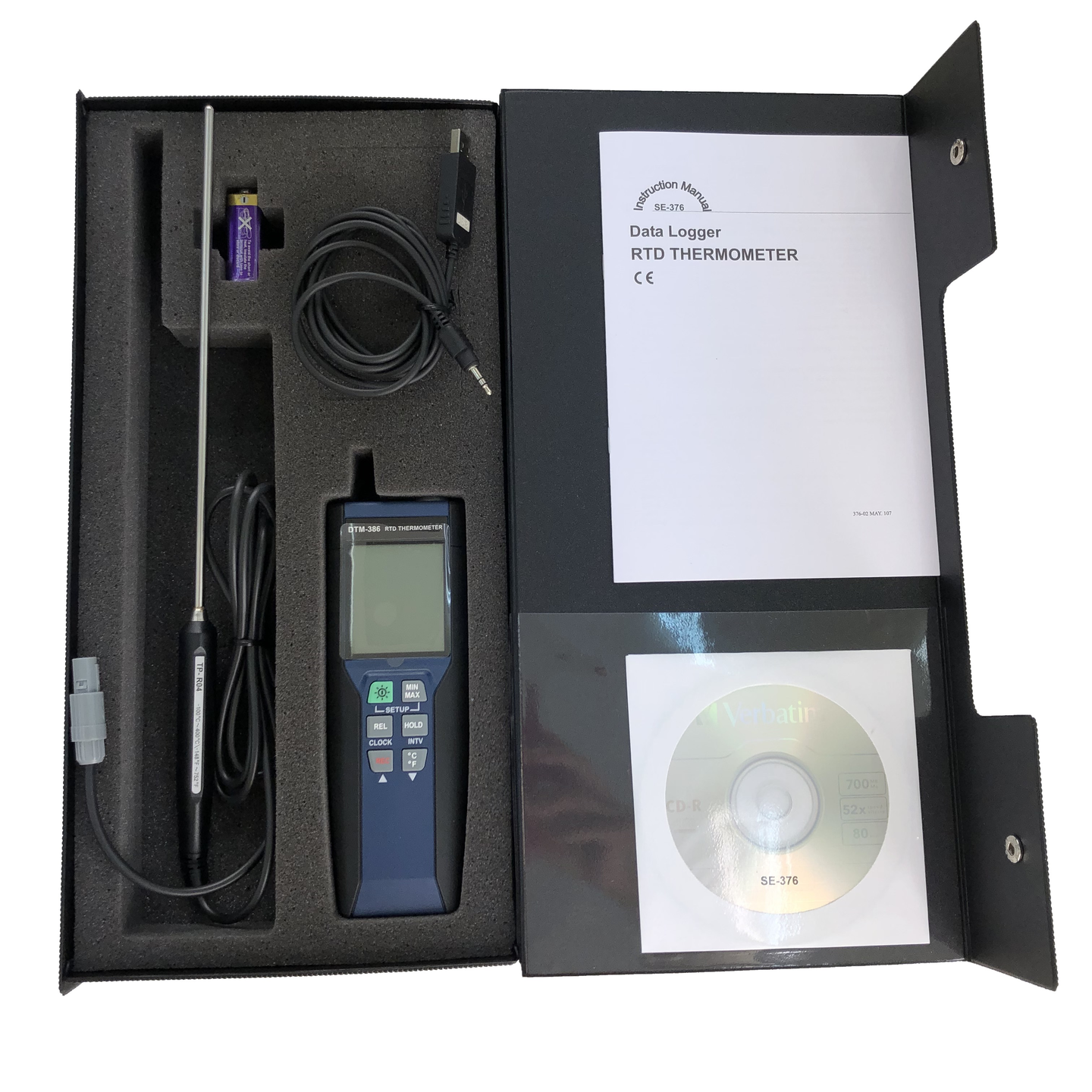

The DTM-386 Platinum Resistance Thermometer Recorder is a handheld device designed for low-temperature measurements, offering extremely high measurement accuracy suitable for precision temperature testing. It features a built-in memory of 16,000 data points for long-term temperature monitoring. Users can easily download measurement data via USB and view temperature curves and data on their computers, facilitating analysis and reporting.
Specifications
- Temperature Range-100 ~ 400 °C (-148 ~ 752 °F)
- Accuracy±0.05 % + 0.1 °C (±0.05 % + 0.2 °F)
- Resolution0.01 °C (0.02 °F)
- Sensor Type4-wire PT-100 platinum resistance
Features
- Temperature Unit Switching °C / °F
- Data Logging16,000 records
- Auto Power Off30 minutes
- Safety LevelOL
Attributes
- Operating Temperature0 ~ 50 °C / <80 %RH non-condensing
- Storage Temperature-10 ~ 60 °C / <80 %RH non-condensing
- Altitude LimitationBelow 2,000 meters
- Power Supply9V battery (optional DC 9V adapter)
- Probe LengthApprox. 230 mm
- Dimensions193 × 74 × 37 mm
- WeightApprox. 365g
