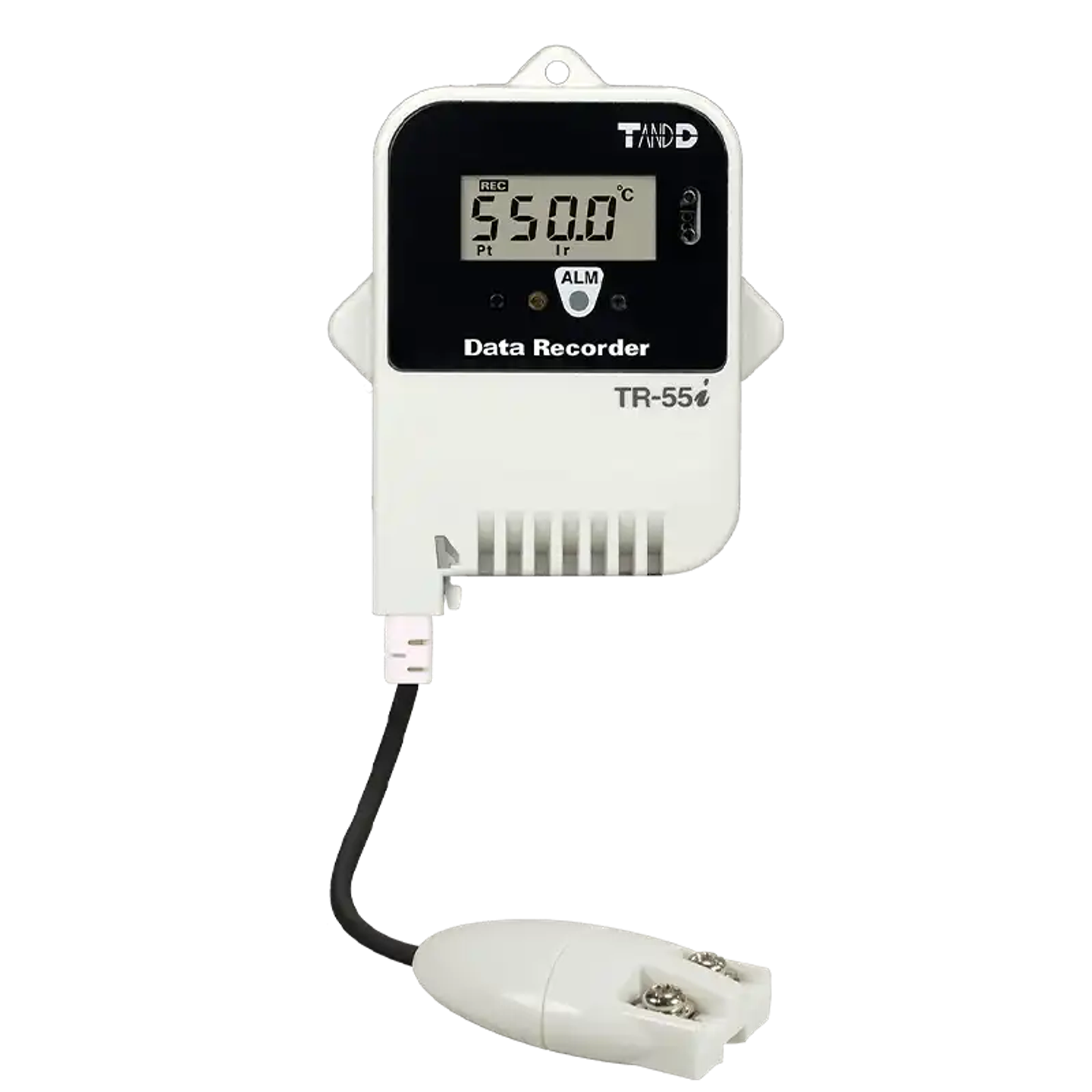

Waterproof Platinum resistance temperature recorder

Brand T&D | Model TR-55i-Pt | 🇯🇵 Japan
The TR-55i-pt comes with a platinum resistance connector and can be connected to 3-wire pt-100 and 4-wire pt-1000 platinum resistance probes. The logger main unit can store **160,000** data readings (not 16,000), and measurement data can be transmitted to a computer via the TR-50U2 for continuous measurement and recording.
Price NT$ 6,825
Out of Stock
Views: 3

Description

This waterproof temperature logger is compact and has a wide operating temperature range, making it suitable for use in various working environments. It is ideal for cargo transport recording and warehouse environments. Since it can be connected to **platinum resistance sensors** (not thermocouple sensors) to measure temperatures in the range of **-199~600°C**, the TR-55i-pt is best suited for temperature control management in factories, warehouses, and other industrial settings. For customers who already own platinum resistance probes, all you need to do is connect them and start recording! There are two ways to download recorded data. By using our Data Collector TR-57DCi, data can be downloaded on-site for immediate checking. By connecting our communication port TR-50U2 to your PC with a USB cable, you can easily download data by placing the logger face down on the port. The data downloaded to the PC can then be viewed and analyzed using our Windows-compatible software, "T&D Graph."

Specifications

  • Measuring Range-199~600°C
  • Accuracy±(0.3 + 0.3%) @ 10 to 40°C
  • Sensorpt-100/pt-1000 (PTM-3010)
  • Resolution0.1

Features

  • Recording ModeEndless Recording / One Time Recording
  • Recording Interval1, 2, 5, 10, 15, 20, 30 seconds, 1, 2, 5, 10, 15, 20, 30, 60 minutes
  • Data Logging160,000 readings
  • Waterproof RatingIP64
  • ChannelsOptical Transmission / Infrared Transmission
  • Battery LifeApprox. 24 months

Attributes

  • Operating Temperature-40~80 °C
  • Storage Temperature0~50 °C
  • Elevation LimitationBelow 1,000 meters
  • Power SupplyLS14250 lithium battery
  • Dimensions62 x 47 x 19 mm
  • Weight45 g
  • AccessoriesBattery and components, manual
