Process Calibrator
Brand
TECPEL
|
Model
CL-420A
|
🇨🇳 China
The CL-420A provides a DC 24V loop voltage while measuring current and conducting switch on/off tests.
Ideal for field verification, maintenance, and troubleshooting.
HVAC professionals can use precision instruments for process calibration, ensuring accuracy and compliance with standards.
Enhances efficiency and reliability in industrial and commercial systems.
Price
NT$ 7,245
Out of Stock
Views: 0
Description

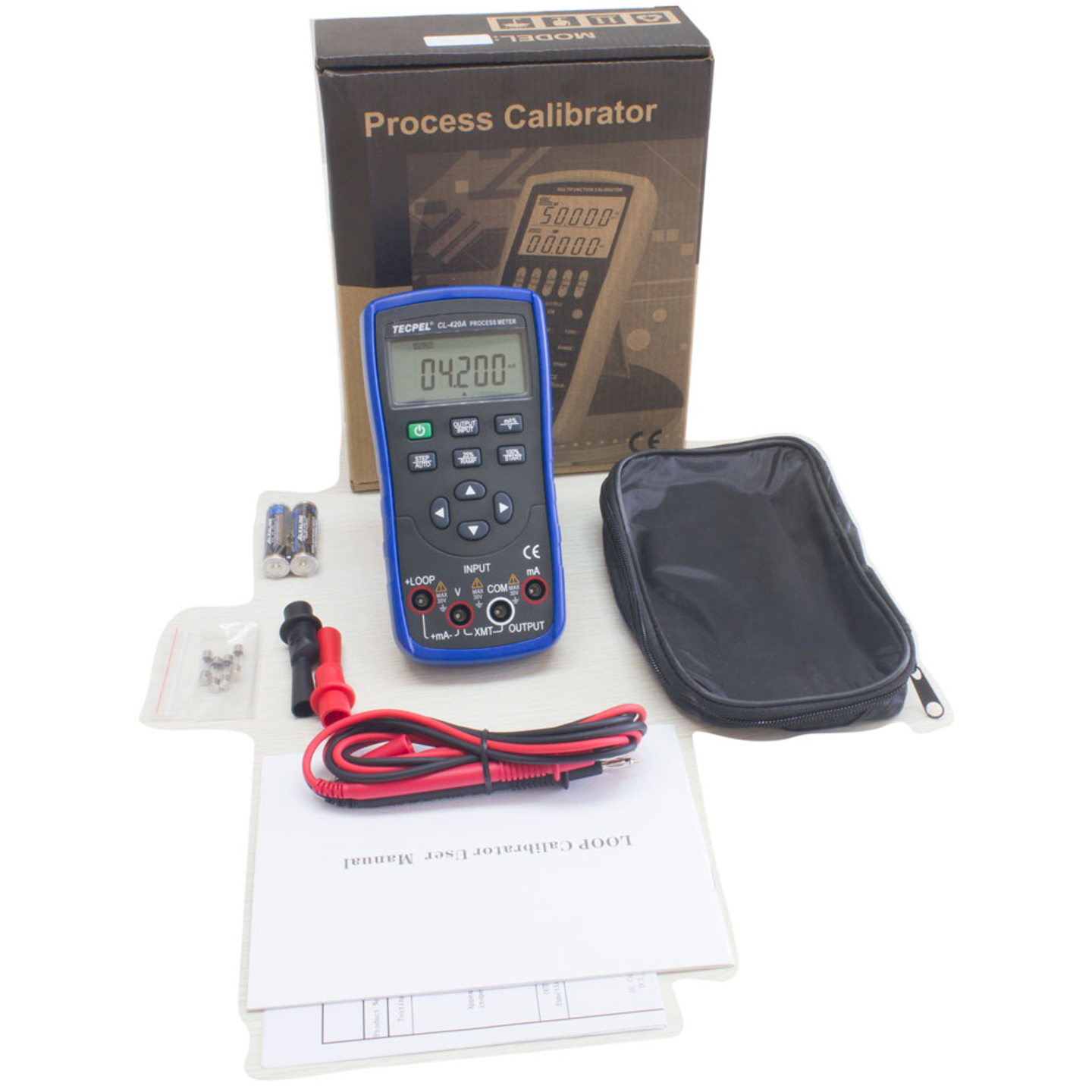

The CL-420A Process Calibrator is designed to simulate various voltage and current analog signals for testing sensing devices. This model has been replaced by the CL-420B, making it suitable for field process loop verification, maintenance, and troubleshooting. It is particularly useful for HVAC engineers who check system components and measure various parameters to ensure optimal performance and accuracy.
Specifications
- 精確度5位數
- 直流電壓±0.100~28.000 V ±(0.02%+2mV)
- 直流電流±0.001m~20.000m A ±(0.02%+4μA)
Features
- 模擬電壓範圍±0.100~28.000 V
- 模擬電流範圍±0.001m~20.000m A
- 精確度5位數
- 通斷測試開關通斷測量
- 快速操作步進及零到滿檔操作
Attributes
- Operating Temperature0~50°C / lower than 80%RH without dew。
- Storage Temperature-10~5°C / lower than 90%RH without dew。
- Elevation LimitationLower than 1,000 meters
- Safety RatingIEC1010
- Power Supply9V Battery (ANSI/NEDA 1604A or IEC 6LR619V Alkaline)
- Dimensions200 × 100 × 40 mm
- Weight550g
- AccessoryIndustrial test lead CF-36 (probe with alligator clip), Manual
