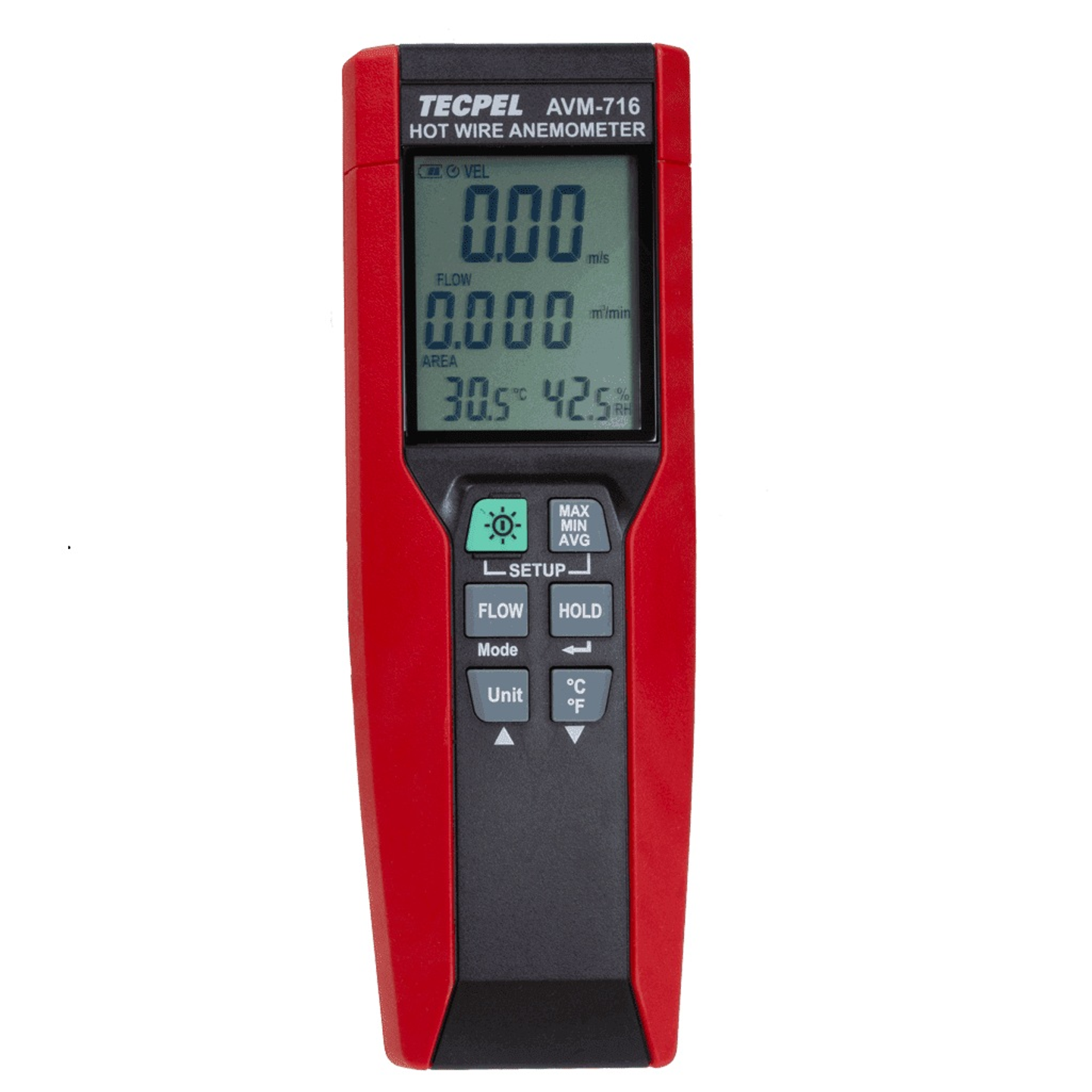

Hot-Wire Anemometer
Brand
TECPEL
|
Model
AVM-716
|
🇹🇼 Taiwan
The AVM-716 hot-wire anemometer makes airflow changes easy to see at a glance. Whether for HVAC inspection, ventilation evaluation, or environmental monitoring, it quickly delivers accurate air velocity and air volume readings.
With support for multiple unit switching and air volume calculation, the backlit display remains clear and easy to read even in dim environments. The rotary sensor protection design enhances durability, while the adjustable pressure compensation function further ensures measurement accuracy, helping you make more reliable decisions.
Downloads
Price
NT$ 7,500
In Stock
Views: 64
Description
The AVM-716 hot-wire anemometer is an instrument designed for environmental and specialized application testing, suitable for HVAC, automotive air conditioning, and meteorological observation applications. This device features a fast response time and supports multiple measurement units. It can measure air velocity, air volume, temperature, and humidity simultaneously to meet a wide range of testing requirements.
Specifications
- Sensor TypeHot-wire air velocity sensor
- Measurement Unitm/s, ft/min
- Wind Speed0~30 m/s ±3%
- Air Flow0~999,900 m3/min(ft3/min)
- Temperature Range-20~60°C ±0.8°C
- Humidity0~100%RH ±3.5%RH
- Resolution0.1°C, 0.1°F, 0.1%RH
- Sampling Rate2/s
- Response TimeApproximately 2 minutes to reach 90%
- Measurement TypeAir velocity and airflow, temperature, humidity
Features
- Max/Min○
- Auto Power Off30 seconds, manual disable available
- Data Hold○
- 2/3 Vmax○
- Low Battery Indicator○
- Backlight○
- CommunicationMICRO USB (5V)
Attributes
- Operating EnvironmentTemperature 0～50 °C, humidity below 90 %RH, non-condensing
- Storage EnvironmentTemperature -10～60 °C, humidity below 75 %RH, non-condensing
- Altitude LimitBelow 2000 m
- Power Supply9V battery / Micro USB (5V)
- Sensor TypeProbe rod: 16 x 870 mm / Cable length: 185 cm
- Main Unit DimensionsMain unit: 185(L) x 65(W) x 36(H) mm Probe: 338～870 mm (4-stage telescopic)
- Weight412 g
- AccessoriesRotary protective cap, extendable 870 mm measuring probe rod, USB cable
