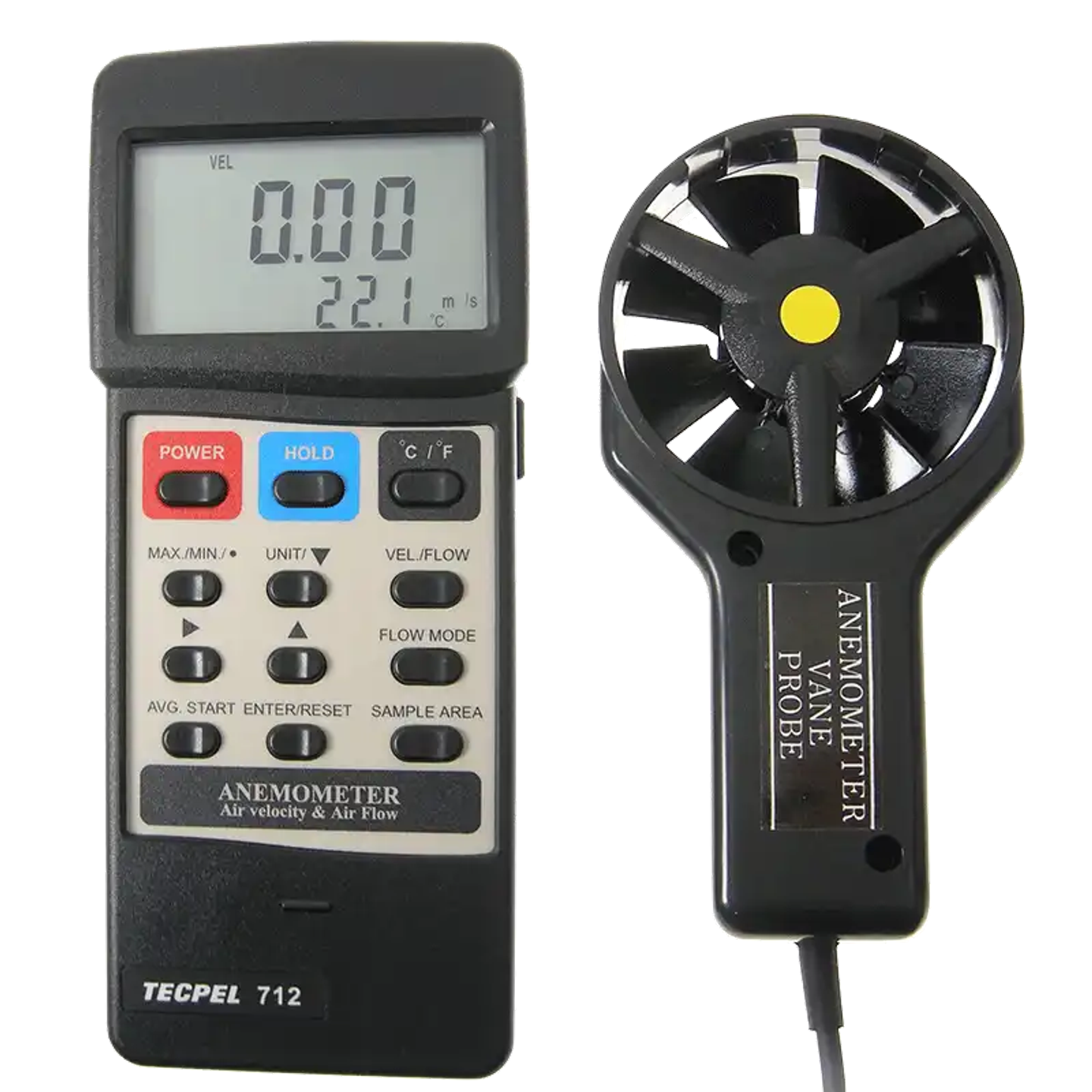

Vane Type Anemometer Thermo-Hygrometer
Brand
TECPEL
|
Model
AVM-712
|
🇹🇼 Taiwan
• Large LCD display with dual windows showing wind speed and air temperature
• Wind speed range: multiple units such as m/s, ft/min, km/h, etc.
• Air flow measurement: CMM or CFM
• Air temperature measurement: Celsius or Fahrenheit
• Memory function: records maximum and minimum values, data hold
• RS232 interface for easy data transmission
• Auto power-off function to extend battery life
Price
NT$ 6,825
Out of Stock
Views: 72
Description
Product: AVM-712, Field: Function Introduction
The AVM-712 is a multifunctional vane-type anemometer and wind-temperature meter that combines three measurement functions. It is designed specifically for environmental wind-speed monitoring, making it particularly suitable for measuring air velocity and airflow in ventilation duct systems, as well as for safety wind-speed checks during high-altitude operations. Its modular, separated sensor design makes measurement more convenient, and delivers accurate data to help you easily understand current environmental wind conditions.
Specifications
- Measurement Unitm/s / km/h / ft/min / knots / mile/h
- Wind Speed0.4~25.00 m/s ±(2% + 2d)
- Wind Speed Resolution(m/s / km/h / ft/min / knots):0.1 / (mile/h):1
- Air Flow UnitCMM (m3/min) / CFM (ft3/min)
- Air Flow0~999,900 CMM (m3/min) / CFM (ft3/min)
- Air Flow Resolution0.001~100 CMM (m3/min) / CFM (ft3/min)
- Temperature Unit°C / °F
- Temperature Range0~50 °C (32~122 °F)
- Temperature Resolution0.1 °C / 0.1 °F
- Temperature Accuracy±(0.8 °C / 1.5 °F)
- 測範圍/規格Rango de medición / especificaciones
- ProductProducto
- Magnetic FieldCampo
- AVM-712AVM-712
Features
- Air FlowCMM (m³/min) or CFM (ft³/min)
- Wind Speedm/s, ft/min, km/h, knots/h, mph
- Temperature Measurement°C or °F
- Dual Window DisplaySimultaneously displays wind speed and air temperature
- Memory FunctionRecords maximum and minimum measurement values, and memory recall, data hold, auto power off
- Data TransmissionRS 232 / USB [cable sold separately]
Attributes
- Operating Temperature0~50 °C / less than 90%RH non-condensing
- Storage Temperature-10~40 °C / less than 80%RH non-condensing
- Altitude Limitbelow 1,000 meters
- Power SupplyDC 9V battery x1
- Dimensionsmain unit 180 x 72 x 32 mm
- Probe Type72 mm
- Weightapprox. 381 g (excluding battery)
- AccessoriesDC 9V battery x1, wind speed sensor x1, carrying case, instruction manual
