Hot Wire Anemometer

Name: TECPEL AVM-714 Hot Wire Anemometer
Brand: TECPEL
SKU: AVM-714
Price: 12075 TWD
Availability: OutOfStock

Brand TECPEL | Model AVM-714 | 🇹🇼 Taiwan

• Large LCD display with dual-window display for wind speed and air temperature • Split sensor for flexible operation • Supports three measurement functions: wind speed, air volume, and air temperature • Memory function to record maximum and minimum measurement values • RS232 interface for easy data transmission

Price NT$ 12,075

Out of Stock

Product: AVM-714, Field: Function Introduction A hot-wire anemometer/air thermometer is an instrument designed specifically for measurements in low-velocity environments. It is suitable for a wide range of applications, such as duct inspections, environmental testing, and air flow monitoring. It offers three measurement functions: wind speed, air volume, and air temperature, and comes with a large LCD display that allows users to read multiple sets of data at the same time. The instrument’s separated probe design makes operation more flexible, and it also supports an RS232 interface, expanding its application range.

Measurement Unitsm/s, km/h, ft/min, knots, mile/h
Wind Speed (Meters per Second)0.2~20.0 m/s
Wind Speed (Kilometers per Hour)0.7~72 km/h
Wind Speed (Miles per Hour)0.5~44.7 mile/h
Wind Speed (Knots)1.0~31.1 knots
Wind Speed (Feet per Minute)40~3940 ft/min
Wind Speed Resolution(m/s, km/h, mile/h, knots):0.1 / (ft/min):1
Wind Speed Accuracy±(5%+1d) of reading or ±(1%+1d) of full scale [take the larger value]
Temperature Range0~50 °C (32~122 °F)
Temperature Unit °C/ °F
Temperature Resolution0.1 °C / 0.1 °F
Temperature Accuracy±0.8 °C / ±1.5 °F

風速測量m/s, ft/min, km/h, kn/h, mph
風溫測量°C or °F
雙視窗顯示Simultaneously displays wind speed and wind temperature
記憶功能Records maximum and minimum measurement values
數值鎖定Yes
自動關機Yes
資料傳輸RS 232 / USB (communication cable sold separately)

Operating environment0~50 °C / less than 90%RH no condensation
Storage environment-10~40 °C / less than 80%RH no condensation
Altitude limitbelow 1,000 meters
Power specificationsDC 1.5V battery (AAA) x6
Sensor rod diameter12 mm Rod length: 28~94 cm (extendable)
Product dimensionsMain unit 180 x 72 x 32 mm
WeightApprox. 355 g (excluding batteries)

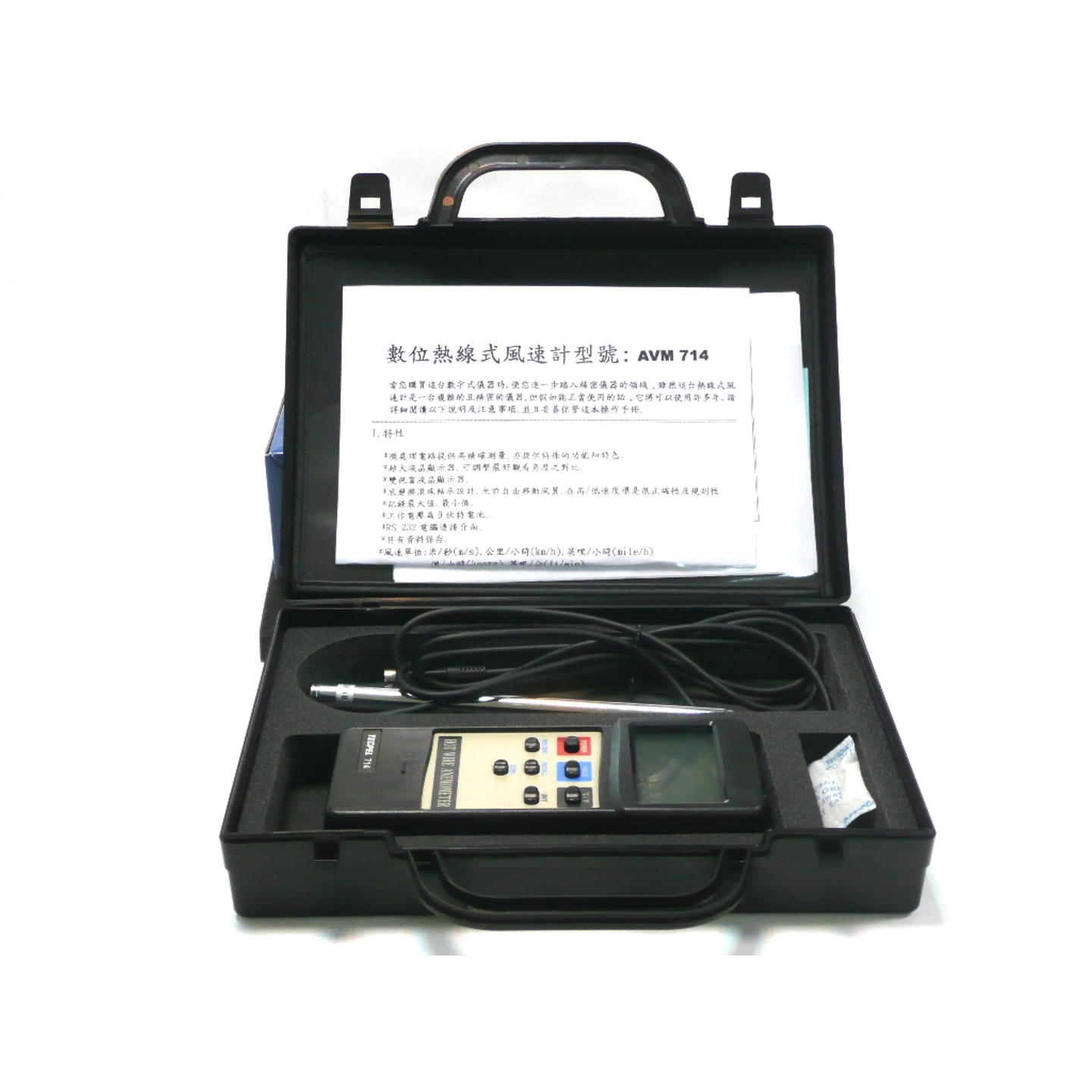

AccessoriesDC 1.5V battery (AAA) x6, hot-wire type anemometer sensor x1, carrying case, user manual
