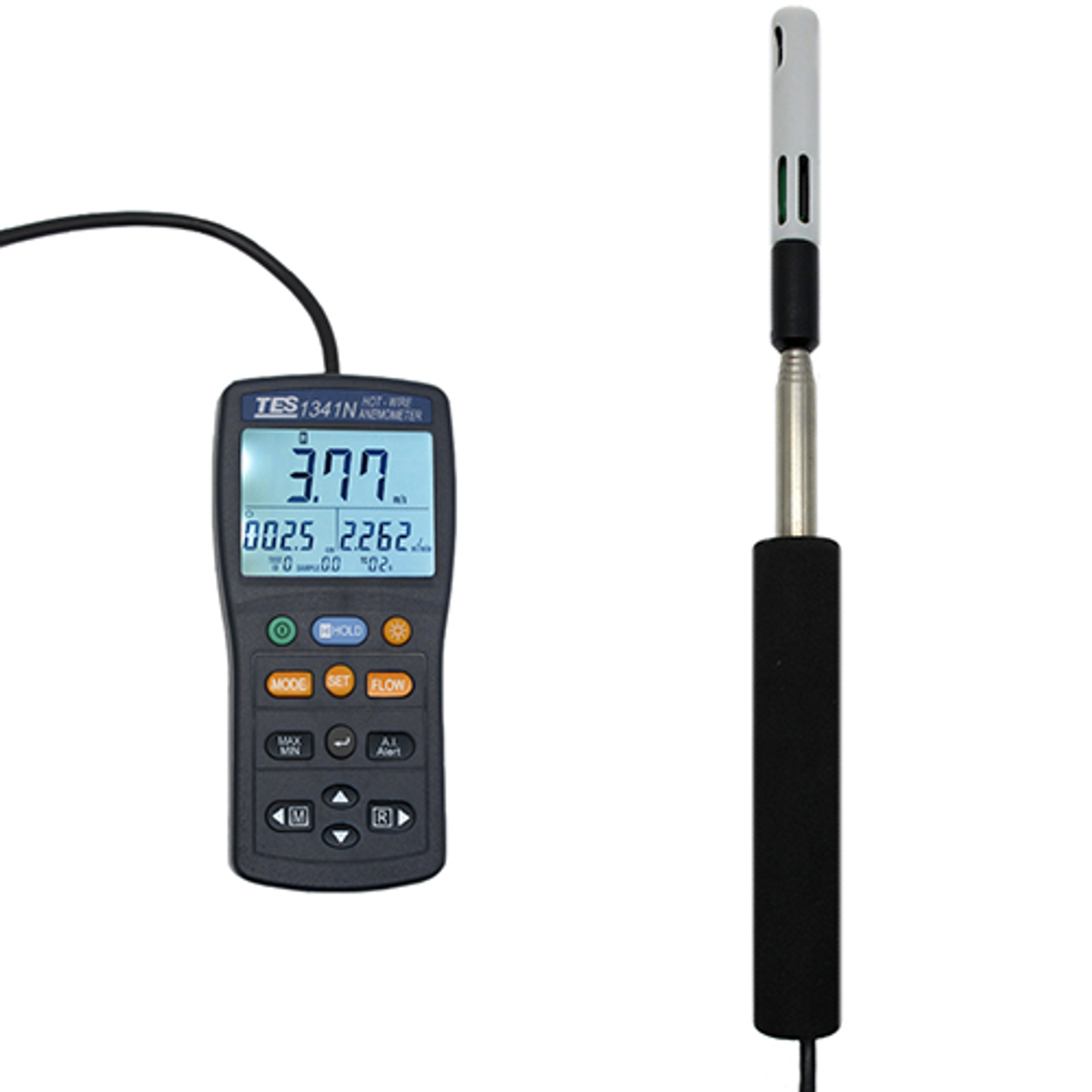

TES-1341N Hot wire anemometer
Brand
TES
|
Model
TES-1341N
|
🇹🇼 Taiwan
Hot wire anemometer (TAF report included)
TAF report required after order, estimated shipping in 10-14 business days
Fast response wind speed probe
Airflow calculation
Wind speed alarm function
Instantaneous, average, and 2/3 maximum airflow measurement
Wind speed unit selection: m/s, ft/min, knots, km/h, mph, Beaufort scale
Relative humidity and temperature measurement
Calculates dew point, wet bulb, wind chill, and heat index
Data hold and max, min, average functions
Manual and automatic data memory functions
Backlight function and time setting
3 display of 4 digit LCD
Telescopic sensor probe
USB PC interface
Out of Stock
Views: 16
Description
The TES-1341N hot wire anemometer is a lightweight measuring device utilizing advanced sensor technology, designed for applications in sports events, wind testing, navigation, and HVAC. This device features real-time wind speed display and can calculate airflow, offering a variety of wind speed unit options to meet diverse measurement needs. Whether indoors or outdoors, the TES-1341N is the ideal companion for wind speed measurement.
Specifications
- Wind Speed Range (m/s)0 ~ 30.0 m/s (±3% rdg ±1% F.S.)
- Wind Speed Range (km/h)0 ~ 108 km/h (±3% rdg ±1% F.S.)
- Wind Speed Range (knots)0 ~ 58 knots (±3% rdg ±1% F.S.)
- Wind Speed Range (ft/min)0 ~ 5900 ft/min (±3% rdg ±1% F.S.)
- Air Flow0 ~ 999900 m³/min
- Resolution0.001 m³/min
- Humidity Range10 ~ 95% RH
- Humidity Accuracy±3%RH @ 25°C, 20-80%RH
- Temperature Range-10 ~ 60°C
- Temperature Accuracy±0.4°C @ +5°C to +60°C
- Wet Bulb5 ~ 60°C (calculated)
Features
- Wind Speed Unitsm/s, ft/min, knots, km/h, mph, Beaufort scale
- Air Flow CalculationSupports 0 ~ 999900 m³/min
- Relative Humidity Measurement10 ~ 95% RH
- Temperature Measurement-10 ~ 60°C
- Response Time< 2 seconds
- Data LoggingManual 5 x 99 groups, Automatic 5 x 99 groups
- Display Type3 displays, 4-digit LCD
- Screen BacklightON/OFF
- Dew Point TemperatureCalculated value
- USB PC InterfaceSupports data transmission and software configuration
Attributes
- Operating Environment Temperature0°C ~ 50°C (32°F ~ 122°F)
- Operating Environment Humidity< 95% RH (No condensation)
- Storage Environment Temperature-10°C ~ 60°C
- Storage Environment Humidity< 90% RH
- Altitude LimitBelow 3,000 meters
- Power Supply6 × AAA size batteries (LR03)
- Battery LifeApproximately 10 hours (continuous use)
- Dimensions150(L) × 72(W) × 35(H) mm
- WeightApproximately 235 grams (with batteries)
- Sensor TypeTelescopic hot-wire wind speed sensor
- CertificationCE certified
- AccessoriesManual, 6 × AAA batteries, carrying case, USB cable, software CD
- Warranty1 year (TAF report required for delivery)
