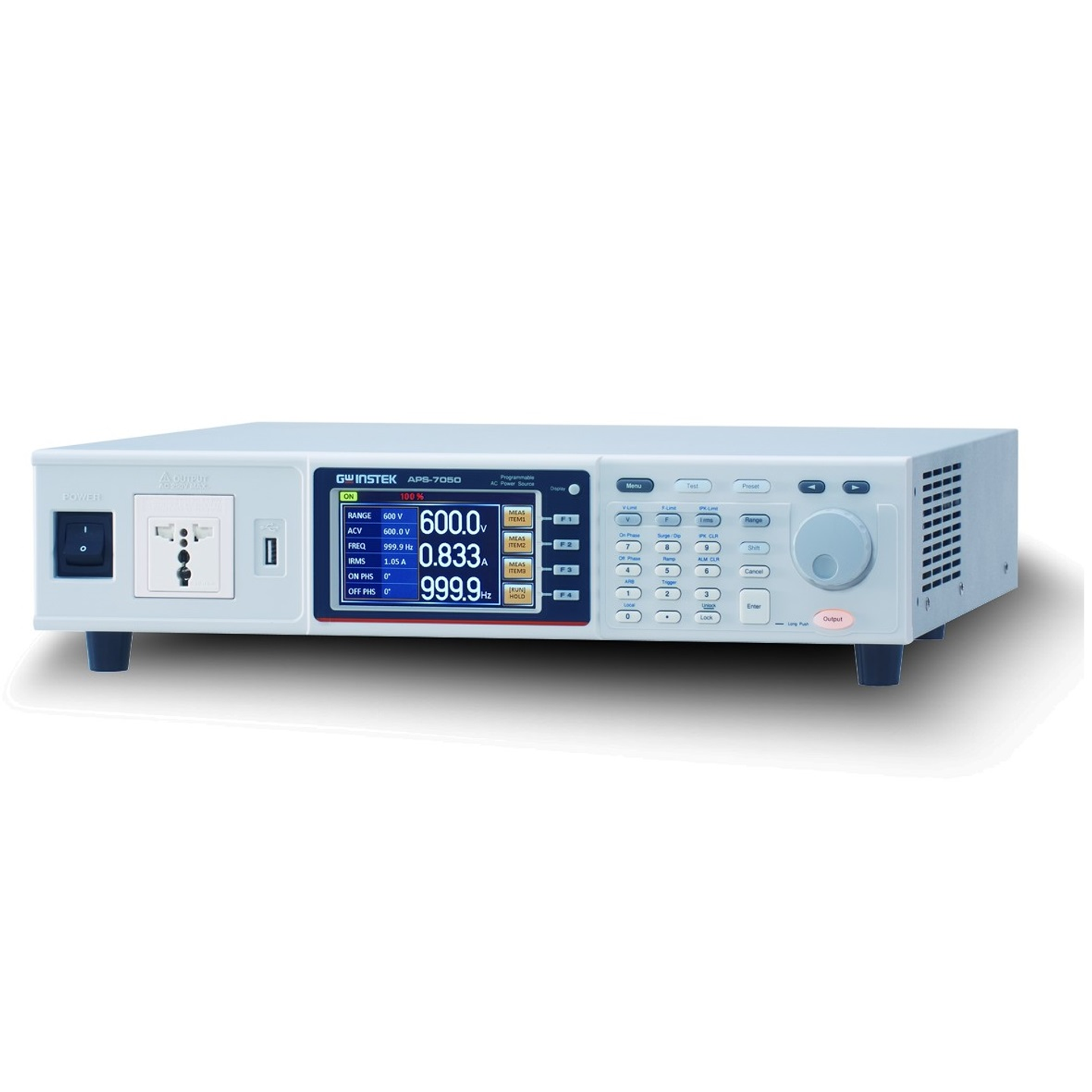

Programmable AC Power Supply (Linear) APS-7000 Series

Name: GWINSTEK APS-7050 Programmable AC Power Supply (Linear) APS-7000 Series
Brand: GWINSTEK
SKU: APS-7050

Brand GWINSTEK | Model APS-7050 | 🇹🇼 Taiwan

Features 4.3-inch TFT-LCD Low ripple noise characteristics Measurement functions include VOLT, CURR, PWR, SVA, IPK, IPKH, FREQ, PF, CF Supports AC low current measurement 2mA ~ 35A, minimum resolution 0.01mA (APS-7050& APS-7100) Feedback current warning function 10 groups of Sequence functions allow editing of output waveforms/10 groups of simulate mode to quickly simulate power supply transients/10 groups of Program mode to customize measurement sequences/10 groups of panel memory functions Supports automatic execution of Sequence, Simulate, Program mode and output functions at startup Standard interface: LAN, USB Host, USB Device (only applicable to APS-7200 and APS-7300 models) Optional interface: GPIB (APS-001); RS-232 / USB CDC (optional: APS-002: applicable to APS-7050/APS-7051 and APS-7100/APS-7101), RS-232 (optional: APS-007: Applicable to APS-7200 and APS-7300)

Out of Stock

GWINSTEK has launched a new APS-7000 AC power supply, including 500VA APS-7050/7051, 1000VA APS-7100/7101, 2000VA APS-7200 and 3000VA APS-7300. The power supply characteristics of its linear architecture design include low noise, low THD, and high stability power output. Suitable for product development and verification with low noise input power supply requirements or applications such as audio and video equipment. The rated maximum operating voltage range is 0~1000Vrms, the operating current is 25.2A the peak current is 100.8A, and the output frequency is 45~500Hz. The output voltage of 0~600Vrms and the output frequency of 45~1000Hz can be directly expanded at the user end through optional options without the need to return to the factory for modification.

APS-7050, 7100, 7200, 7300Rated Power 500VA, 1000VA, 2000VA, 3000VA
Output Voltage0.3% (% of full scale)
Frequency45.00 ~ 500.0 Hz
Maximum current (effective value) *1 0 ~ 155 Vrms 4.2A 8.4A 16.8A 25.2A ; 0 ~ 310 Vrms 2.1A 4.2A 8.4A 12.6A
Max. current(peak)0 ~ 155 Vrms 16.8A 33.6A 67.2A 100.8A ; 0 ~ 310 V rms 8.4A 16.8A 33.6A 50.4A ; OPT. APS-003(rms) 0 ~ 600 Vrms 1.05A 2.1A 4.2A 6.3A
Total Harmonic Distortion (THD)*2 ≤ 0.5% at 45 ~ 500.0Hz (Resistive Load)
Crest factor≤ 4
Power regulation0.1% (% of full scale)
Response Time< 100µS
Accuracyreverse current 30% of maximum output RMS current (continuous) 100% maximum output RMS current (within 3 minutes)
