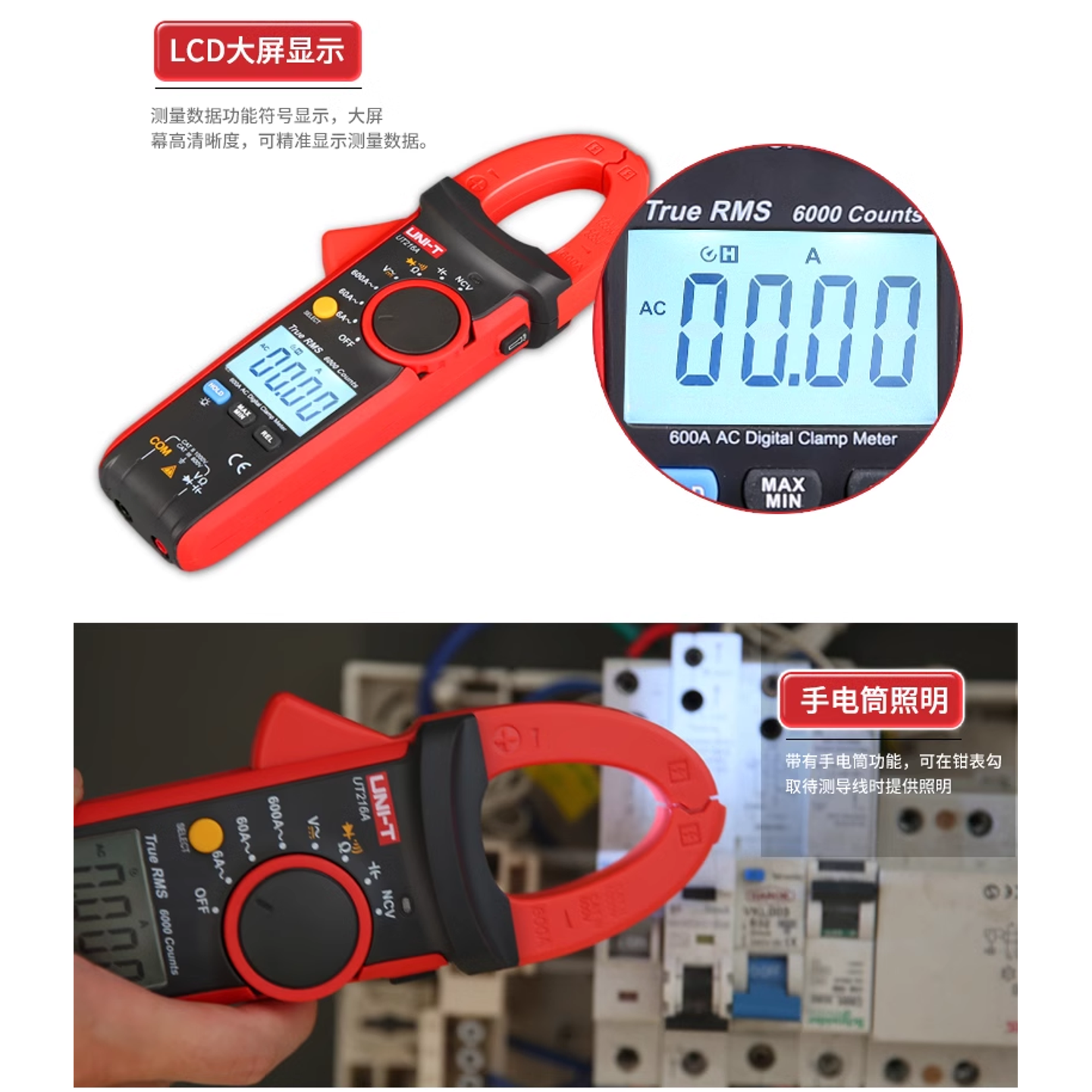

True RMS Digital Clamp Meter

Brand UNI-T | Model UT216C | 🇨🇳 China
The UT216C offers auto range and a large display screen, making it suitable for technicians requiring precision. It is designed to perform excellently under various temperature and measuring conditions.
Out of Stock
Views: 0

Description

The UT216C True RMS Digital Clamp Meter features a 600A measurement range, suitable for AC/DC current, voltage, and resistance measurements. With diverse functions such as backlight display and data hold, it is ideal for industrial applications. The UT216C is a professional-grade 600A True RMS Digital Clamp Meter designed for versatile and accurate electrical measurements across a broad range of applications. Featuring an ergonomic design, it includes an easy-to-read 6000-count display, auto-ranging, and multiple measurement functions such as AC/DC current, AC/DC voltage, resistance, capacitance, frequency, and temperature. Enhanced with True RMS technology, it ensures precise readings even in fluctuating conditions. The UT216C also offers convenience features like data hold, MAX/MIN, LCD backlight, and inrush current detection. With its robust build and user-friendly features, the UT216C is ideal for electricians, engineers, and technicians.

Specifications

  • AC Current600A ±(2.5%+5)
  • DC Current600A ±(2.5%+5)
  • AC Voltage750V ±(1.2%+5)
  • DC Voltage1000V ±(0.8%+1)
  • Resistance60MΩ ±(1%+2)
  • Capacitance60mF ±(4%+5)
  • Frequency10Hz~1MHz ±(0.1%+4)
  • Operating Temperature-40°C~1000°C ±(2%+5)
  • Temperature (°F)-40°F~1832°F ±(2%+10)

Features

  • Display Count6000
  • Auto RangeYes
  • Jaw Opening30mm
  • True RMSYes
  • Diode TestYes (Around 3.0V)
  • V.F.C.Yes
  • NCVYes
  • Data HoldYes
  • Relative ModeYes
  • Max/MinYes
  • DisplayYes
  • Inrush CurrentYes
  • Analog Bar Graph61
  • FlashlightYes
  • Auto Power OffYes
  • ContinuityYes
  • Safety Rating≤3.6V, Yes
  • Input ProtectionYes
  • Input Impedance≥10MΩ, Yes

Attributes

  • Product ColorRed and Grey
  • Weight231.7g
  • Dimensions220mm x 75mm x 40mm
  • AccessoryBatteries, Test Leads, Point Contact Temperature Probe
  • Standard Individual PackingGift box, Carrying Bag, English Manual
