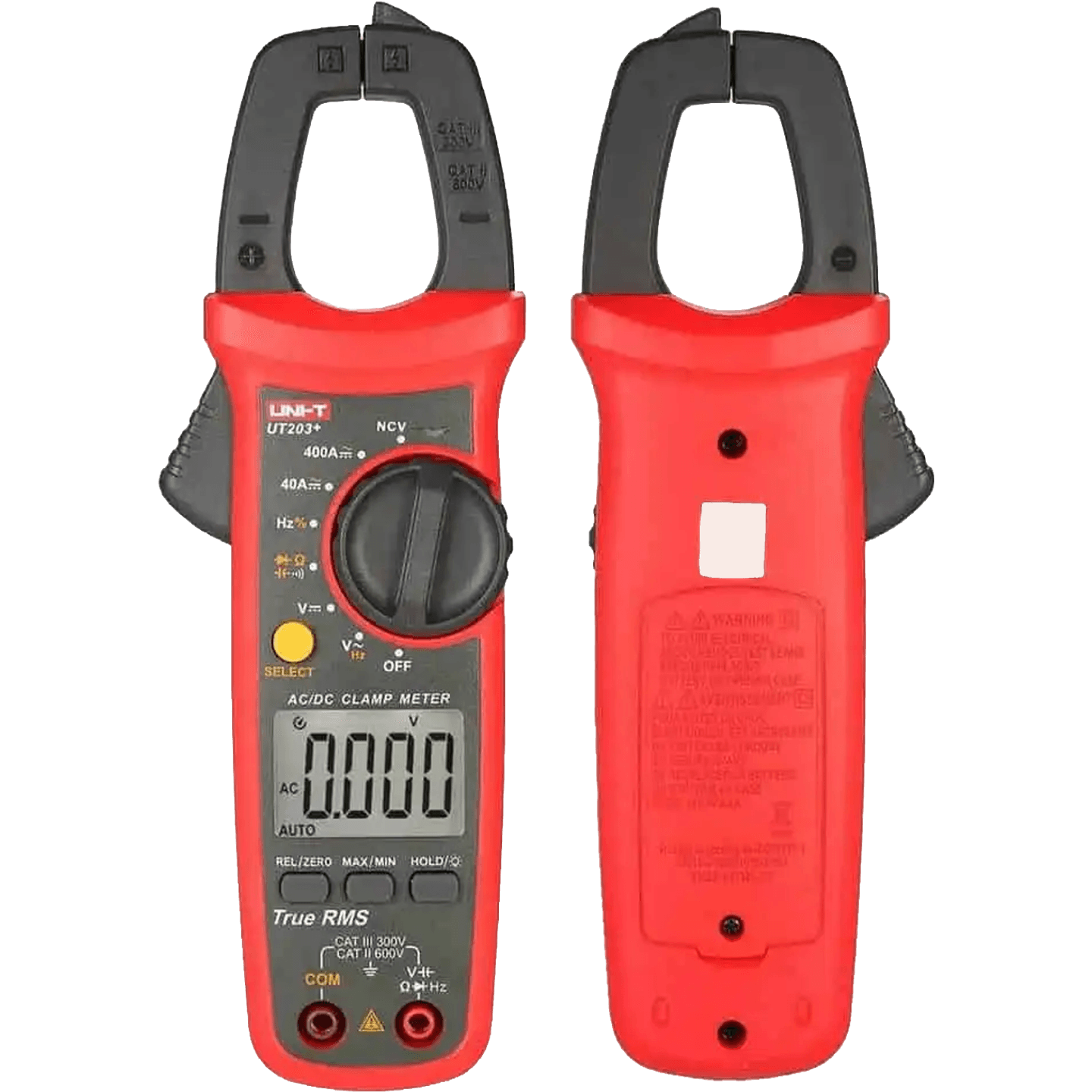

AC/DC Clamp Meter
Brand
UNI-T
|
Model
UT203+
|
🇨🇳 China
The UT203+ AC/DC Clamp Meter offers high-precision true RMS measurement, supporting up to 400A current and 600V voltage measurements, along with NCV non-contact voltage detection. This clamp meter is particularly suitable for electrical testing in industrial settings and provides features like auto-ranging, max/min value display, and data hold to ensure measurement accuracy and convenience.
Price
NT$ 1,155
In Stock
Views: 58
Description
The UNI-T UT203+ AC/DC Clamp Meter provides accurate true RMS measurements, making it suitable for various current and voltage measurement needs. This clamp meter features built-in Non-Contact Voltage (NCV) measurement, allowing users to quickly identify electric field changes and enhance testing safety, particularly in industrial environments. Its user-friendly design includes multiple practical functions to meet different user requirements.
Specifications
- Display Counts400A ±(2.5％+5)
- Jaw Opening400A ±(2.5％+5)
- AC Current600V ±(0.8％+5)
- DC Current600V ±(0.5％+2)
- AC Voltage40MΩ ±(0.8％+2)
- DC Voltage40mF ±(4％+5)
- Resistance10Hz〜10MHz ±(0.1％+4)
- Capacitance4000
- Frequency28mm
Features
- True RMS是
- NCV測量是
- Auto Range是
- Max/Min是
- Data Hold是
- Low Battery Indicator是
- Auto Power Off是
Attributes
- Dimensions215mm X 63mm X 36mm
- Weight235g
- Power Supply1.5V Battery x 2
- AccessoriesBox, test leads, user manual
