Multifunction Digital Multimeter, Three-Function Meter
Brand
UNI-T
|
Model
UT-71E
|
🇨🇳 China
The UT-71E boasts a high DC voltage accuracy of 0.025%, supports both AC and DC measurement modes, and can store up to 9999 data points, suitable for various applications.
Out of Stock
Views: 0
Description

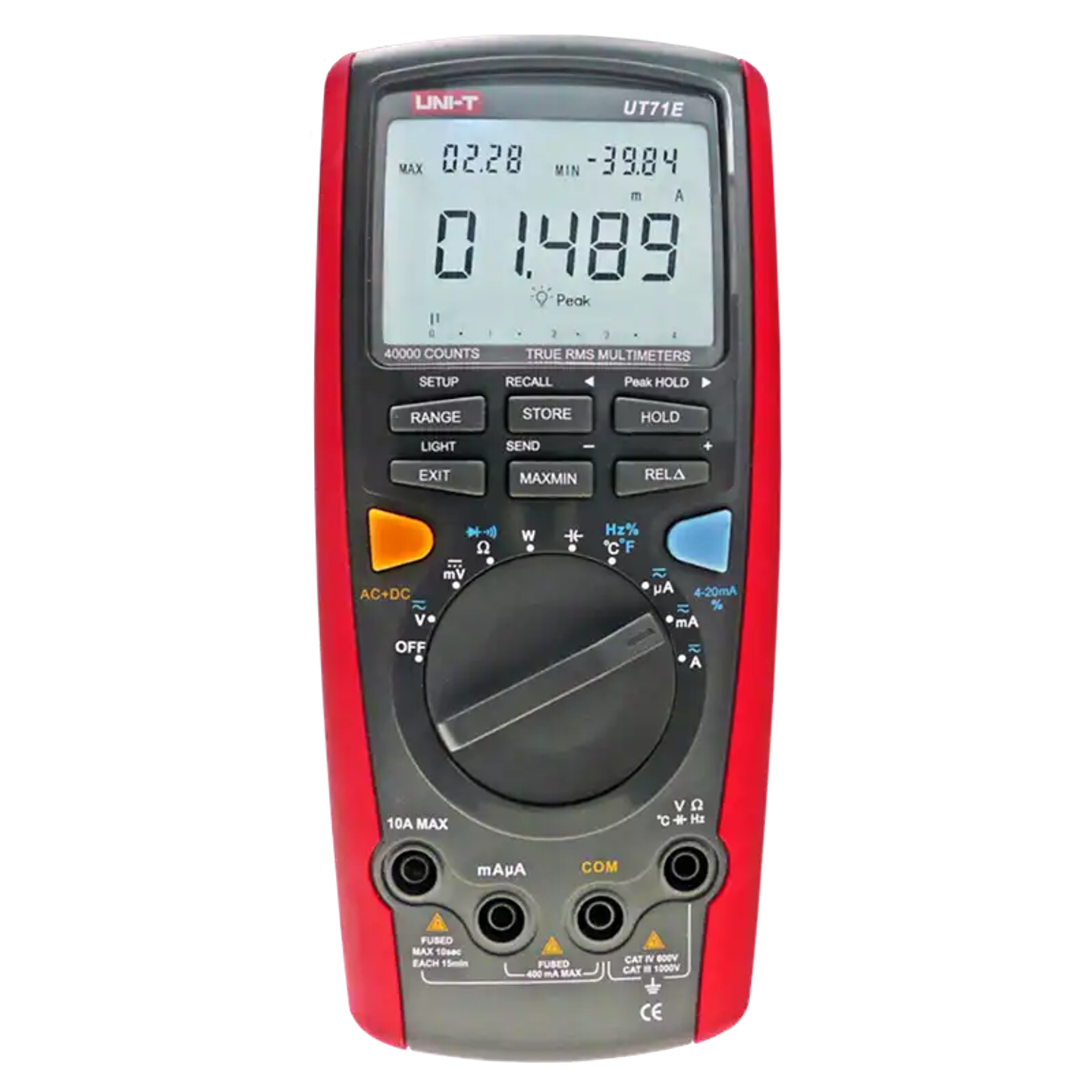

The UT-71E Digital Multimeter is a cost-effective pocket-sized device featuring a 40,000 count display. Its simple operation and comprehensive functions make it an ideal tool for beginners and for the maintenance and repair of basic circuits and electrical equipment. Whether in home, workshop, or industrial settings, the UT-71E is the perfect measurement instrument for users, catering to a variety of measurement needs and is an upgraded replacement for the UT-71D.
Specifications
- Accuracy40,000 counts
- DC Voltage400m / 4 / 40 / 400 / 1,000 V (±(0.025%+5)>
- DC Current400μ / 4000μ / 40m / 400m /10 A (±(0.1%+15)>
- AC Voltage4 / 40 / 400 / 1,000 V (±(0.4%+30)>
- AC Current400μ / 4000μ / 40m / 400m / 10 A (±(0.07%+15)>
- Resistance400 /4K / 40K / 400K / 4M / 40M Ω (±(0.3%+8)>
- Capacitance40n /400n /4μ /40μ /400μ /4m /40m F (±(1%+20)>
- Power40~400MHz (±(0.01%+8)>
- Frequency-40～1,000 °C (-40～1,832 °F) (±(1%+30 °C )>
Features
- Data logging9,999 records
- Frequency45Hz~3kHz
- Duty cycle0.0% ~ 90.0%
Attributes
- Operating Temperature-10~60°C / lower than 75%RH without dew
- Storage Temperature0~40°C / lower than 75%RH without dew
- Elevation LimitationLower than 1,000 meters
- Power SupplyDC 9V battery X1
- Dimensions200 x 93 x 40 mm
- WeightApprox. 384 g (Battery including)
- AccessoryTest lead、Battery、Conversion Seat、Type-K Thermocouple probe、Cloth bag, USB cable, Software, Manual
