Digital Multimeter
Brand
UNI-T
|
Model
UT-71D
|
🇨🇳 China
Key features of the UT-71D include:
- High precision DC voltage measurement (±0.025%)
- AC+DC measurement mode
- 9999 data storage
- Low power consumption design for portability
- Multiple measurement ranges available
Price
NT$ 5,040
Out of Stock
Views: 67
Description

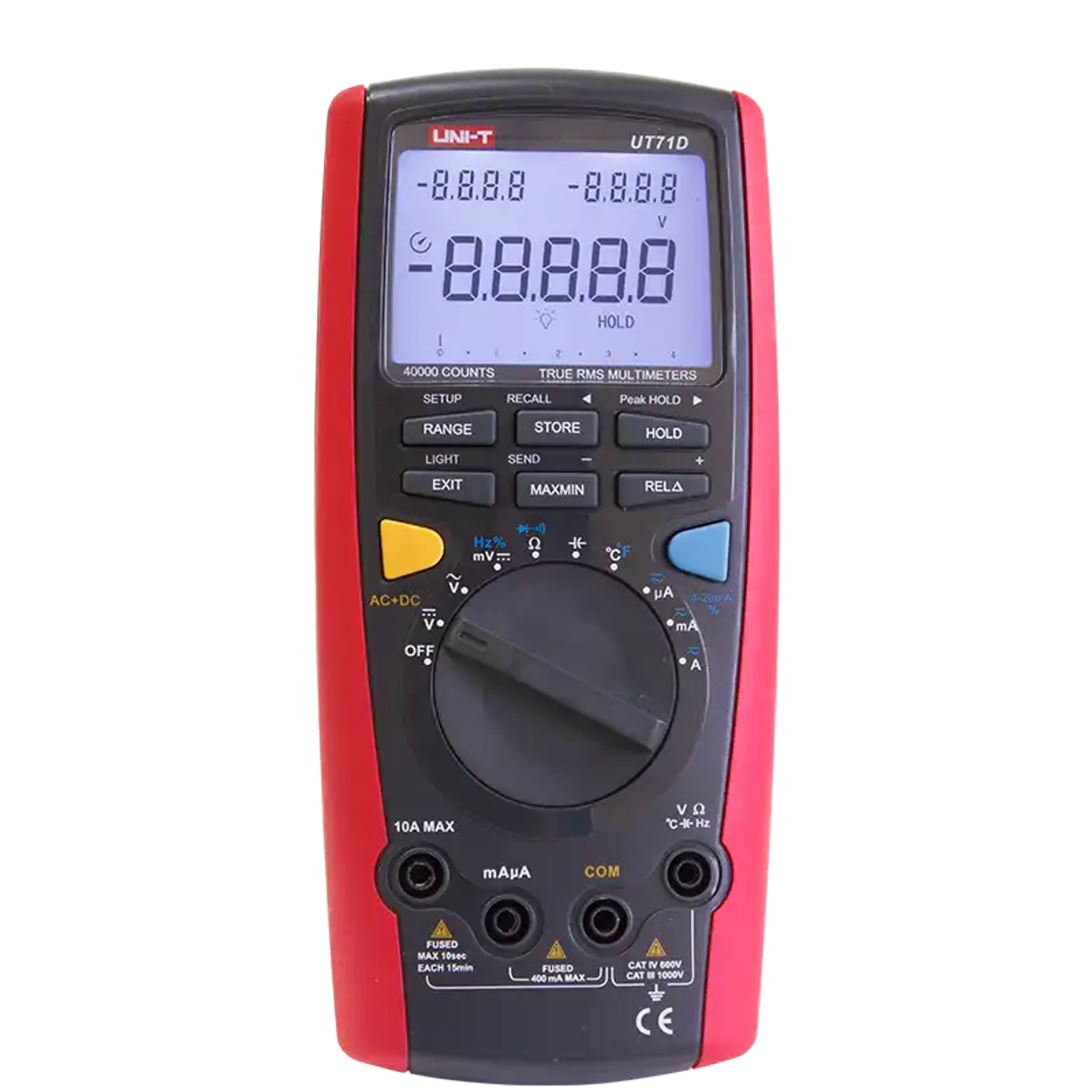

The UT-71D Digital Multimeter is a convenient pocket-sized device with a high-resolution display of 40,000 counts, ideal for beginners and professionals alike for maintenance and repair of circuits and electrical equipment. Its simple operation and comprehensive features make the UT-71D the perfect tool for measuring voltage, current, and resistance, whether at home or in the workplace.
Specifications
- Accuracy40,000 counts
- DC Voltage400m / 4 / 40 / 400 / 1,000 V (±(0.025%+5)>
- DC Current400μ / 4000μ / 40m / 400m / 10 A (±(0.1%+15)>
- AC Voltage4 / 40 / 400 / 1,000 V (±(0.4%+30)>
- AC Current400μ / 4000μ / 40m / 400m / 10 A (±(0.07%+15)>
- Resistance400 / 4K / 40K / 400K / 4M / 40M Ω (±(0.3%+8)>
- Capacitance40n / 400n / 4μ / 40μ / 400μ / 4m / 40m F (±(1%+20)>
- Frequency40~400MHz (±(0.01%+8)>
- Operating Temperature-40～1,000 °C (-40～1,832 °F) (±(1%+30 °C )>
Features
- 資料記錄Data record: 9,999
- 頻率Frequency: 45Hz~3kHz
- 占空比Duty cycle: 0.0% ~ 90.0%
Attributes
- Operating Temperature-10~60°C / lower than 75%RH without dew
- Storage Temperature0~40°C / lower than 75%RH without dew
- Elevation LimitationLower than 1,000 meters
- Power SupplyDC 9V battery X1
- Dimensions200 x 93 x 40 mm
- WeightApprox. 384 g (Battery including)
- AccessoryTest lead、Battery、Conversion Seat、Type-K Thermocouple probe、Cloth bag, USB cable, Software, Manual
