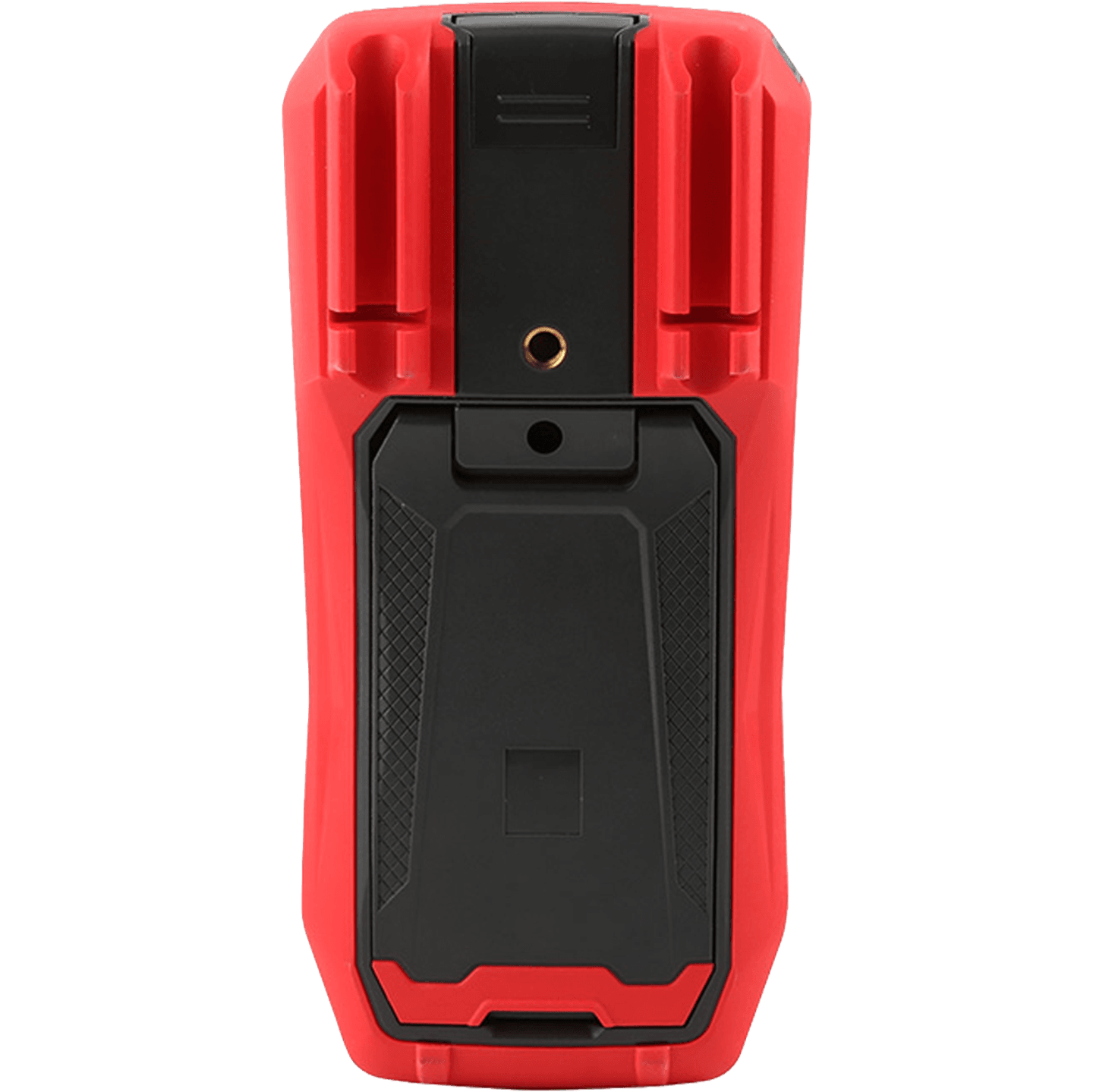

20,000 Count Multimeter(USB)
Brand
UNI-T
|
Model
UT-61D+
|
🇨🇳 China
The UT-61D+ is a professional multifunction multimeter with the following features:
- Measures up to 1000V AC/DC voltage
- Measures up to 20A AC/DC current
- Low impedance AC voltage (LoZ ACV) measurement capability
- High accuracy and stability
- Data transmission via USB
- Suitable for factory inspections and scientific experiments
Price
NT$ 1,890
Out of Stock
Views: 54
Description
The UT-61D+ is a high-performance multimeter from UNI-T, featuring a 6,000 count resolution analog chip, covering a wide measurement range suitable for various professional applications. This multimeter supports optical transmission and USB connectivity, enabling efficient data collection and transmission, widely used in factory product inspections and scientific experiments. Its high accuracy and stability make it an ideal choice for electrical engineers and technicians.
Specifications
- DC Voltage60m / 600m / 6 / 60 / 600 / 1,000 V ±(1.5%+3)
- DC Current600μ / 6000μ / 60m / 600m / 6 / 20 A ±(1.0%+2)
- AC Voltage60m / 600m / 6 / 60 / 600 / 1,000 V ±(1.0%+3)
- AC Current600μ / 6000μ / 60m / 600m / 6 / 20 A ±(1.2%+5)
- Resistance600 / 6K / 60K / 600K / 6M / 60M Ω ±(1.0%+2)
- Capacitance60n / 600n / 6μ / 60μ / 600μ / 6m / 60m F ±(3.0%+5)
- Frequency10 ~ 10M Hz ±(0.1%+4)
- 溫度(°C/°F)-40 ~ 1,000°C (-40 ~ 1,832°F) ±(1.0%+3)°C
- 佔空比(%)0.1 ~ 99.9% ±(2.0%+5)
- Bandwidth40 ~ 1k Hz
Features
- Analog Bar Graph31 節
- Safety RatingIEC 61010-1: CAT III 1000V/CAT IV 600V
Attributes
- Operating Temperature0 to 40°C / lower than 75%RH without dew
- Storage Temperature-10 to 50°C / lower than 75%RH without dew
- Altitude LimitLower than 2,000 meters
- Power Supply1.5V Battery(AAA) x 4
- Dimensions186 x 89 x 49 mm
- WeightApprox. 400 g
- AccessoriesTest lead、 battery、Conversion Seat、USB Cable、Software、Manual
