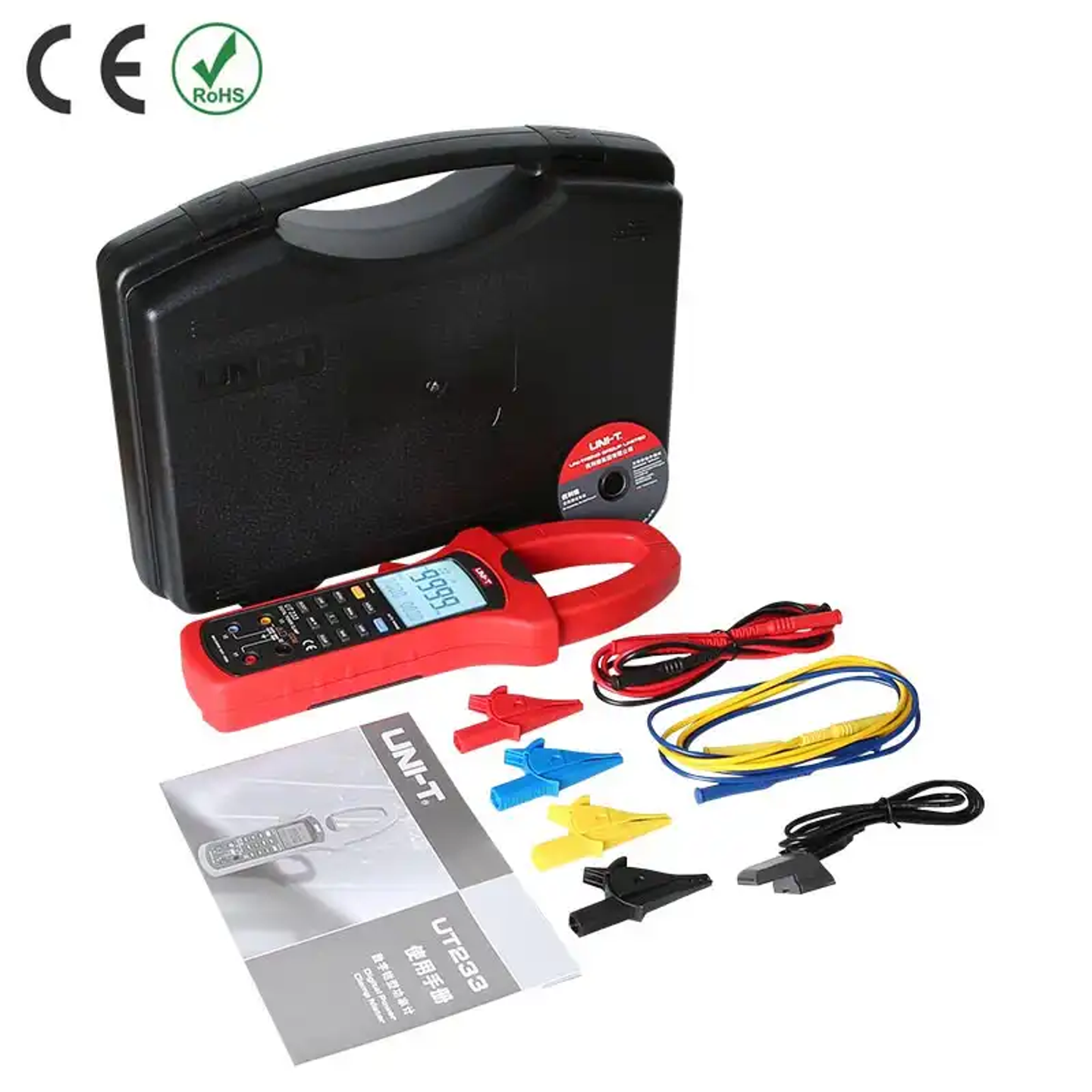

AC/DC Digital Clamp Meter
Brand
UNI-T
|
Model
UT-233
|
🇨🇳 China
Features true RMS measurement capability,
measures AC and DC current, voltage, power, and reactive power,
supports power factor and phase angle calculations,
suitable for testing and maintenance of various electrical equipment,
provides USB data transmission,
can record up to 99 measurement data points.
Out of Stock
Views: 0
Description
The UT-233 AC/DC Digital Clamp Meter is a powerful measurement tool that combines the advantages of an ammeter and a power meter, offering high stability. It accurately measures both AC and DC current, voltage, power, and reactive power, and can calculate power factor and phase angle, making it suitable for testing and maintenance of various electrical equipment. Whether in industrial, commercial, or home environments, the UT-233 provides precise data support.
Specifications
- Accuracy±(1% +5 digits) at frequency 20~100Hz
- Jaw openingØ50 mm
- AC Current1,000 A
- AC Voltage600 V
- Power Measurement0.01k~600k W
- Power Factor (PF)0.3~1
- Active Power (kW)1~9,999 kWh
- Apparent Power (kVA)0.01~600 kVA
- Reactive Power (kVAR)0.01~600 kVAr
- Resolution0.1V
Features
- Data Logging99 records
- Data TransferUSB
Attributes
- Operating Temperature0~40°C / lower than 80%RH without dew。
- Storage Temperature10~50 °C / lower than 70%RH without dew。
- Elevation LimitationLower than 1,000 meters
- Power Supply1.5V Battery (AA) x 4
- Dimensions246 x 80 x 43mm
- Weight350g (Battery included)
- AccessoryTest Lead、Battery、Manual
