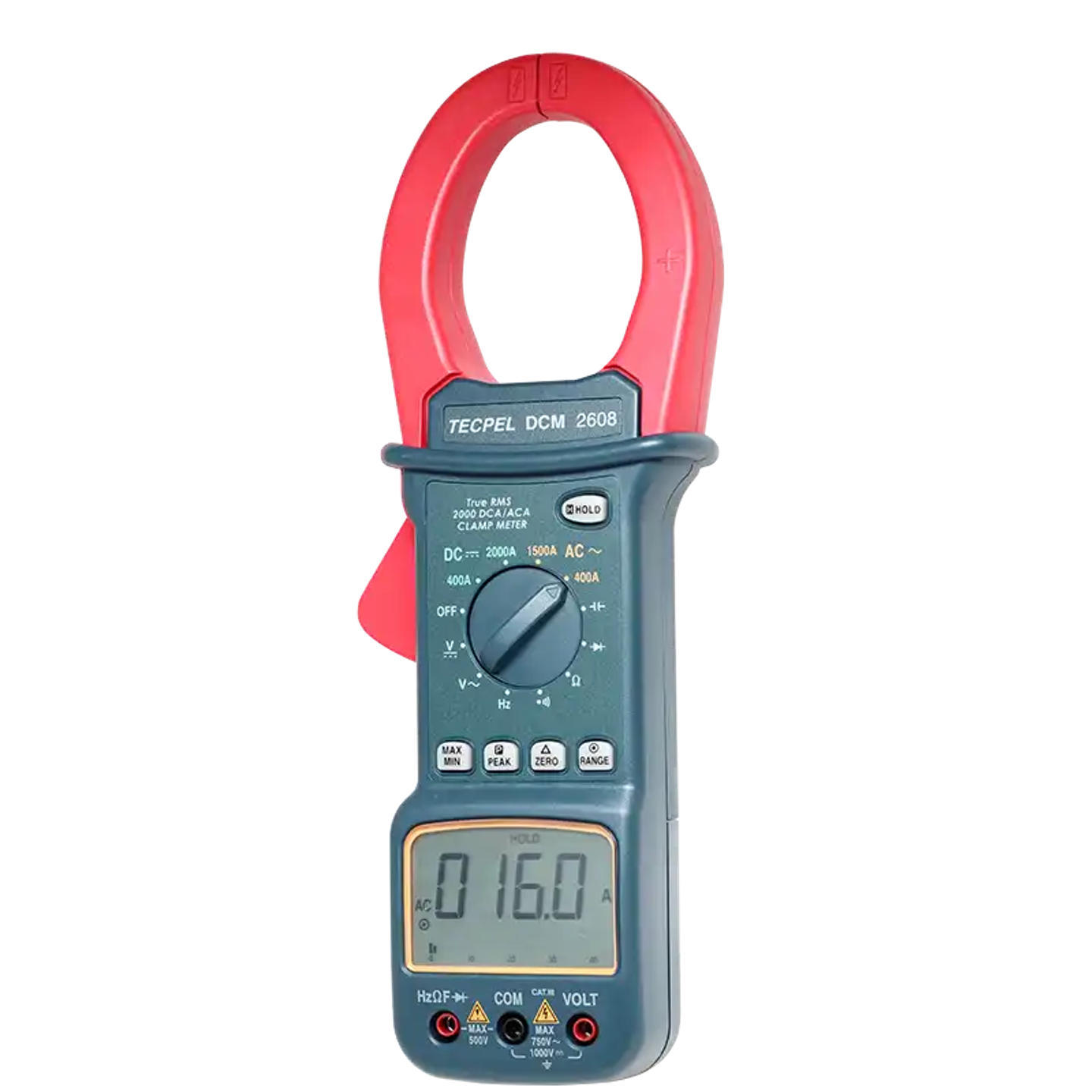

AC/DC Digital Clamp Meter

Brand TECPEL | Model DCM-2608 | 🇹🇼 Taiwan
AC/DC Digital Clamp Meter
Measures AC current up to 2,000A, High accuracy rating, Safety ratings comply with IEC-1010-1, UL1244/UL3111 standards, Multiple measurement functions including DC current, AC voltage, DC voltage, and resistance.
Out of Stock
Views: 168

Description

The DCM-2608 Digital Clamp Meter is a high-performance tool designed for accurate measurement of AC/DC current. With a maximum measurement range of 2,000A, it provides the accuracy and reliability required for electrical maintenance and testing. Whether for home use or industrial applications, the DCM-2608 can easily handle various challenges, making it an ideal choice for electricians and technicians.

Specifications

  • Display CountsCurrent Accuracy : DC: ±(1.5%+5 counts) / AC: ±(1.5%+5 counts)
  • Jaw OpeningØ57 mm
  • AC Current400 / 2,000 A
  • DC Current400 / 1,500 A
  • DC Voltage±(1.5%+4 counts) at 50/60Hz
  • AC Voltage±(0.5%+1 counts)
  • Resistance400 / 4K / 40K / 400K / 4M / 40M Ω
  • Capacitance100 / 1K / 10K / 100K / 400K Hz
  • Frequency0.1V
  • Duty Cycle5 ~ 95%
  • Sampling Rate數字每秒 2.8次 / 條圖每秒 28次

Features

  • True RMSIEC-1010-1, UL1244/UL3111；CE and UL certification passed
  • Diode Test0.001 ~ 2.000V
  • Over Range IndicationOL 或 -OL
  • Peak Detection是
  • Auto Power Off約 30分鐘
  • Continuity是
  • Data Hold是
  • Max/Min是

Attributes

  • Operating Temperature-10~50°C / lower than 85%RH without dew。
  • Storage Temperature-10~50°C / lower than 75%RH without dew。
  • Altitude LimitLower than 1,000 meters
  • Power Supply9V Battery
  • Dimensions277 x 102 x 49mm
  • Weight540g (Battery including)
  • AccessoriesBattery x1、Test Lead、 Carrying Bag、Manual
  • Safety RatingEN61010-1, EN 61010-2-032
