True RMS AC/DC Digital Clamp Meter
Brand
UNI-T
|
Model
UT-211B
|
🇨🇳 China
UT-211B can measure a maximum current of 60A. It is designed to be portable and digital with a resolution of 0.1mA.
And UT-211B is very suitable for people who need high-precision and accurate results when using electronic equipment, such as solar system current load, troubleshooting of electric vehicles, etc.
It is ergonomically designed and lightweight, the best tool for working in small spaces.
Price
NT$ 2,730
Out of Stock
Views: 0
Description

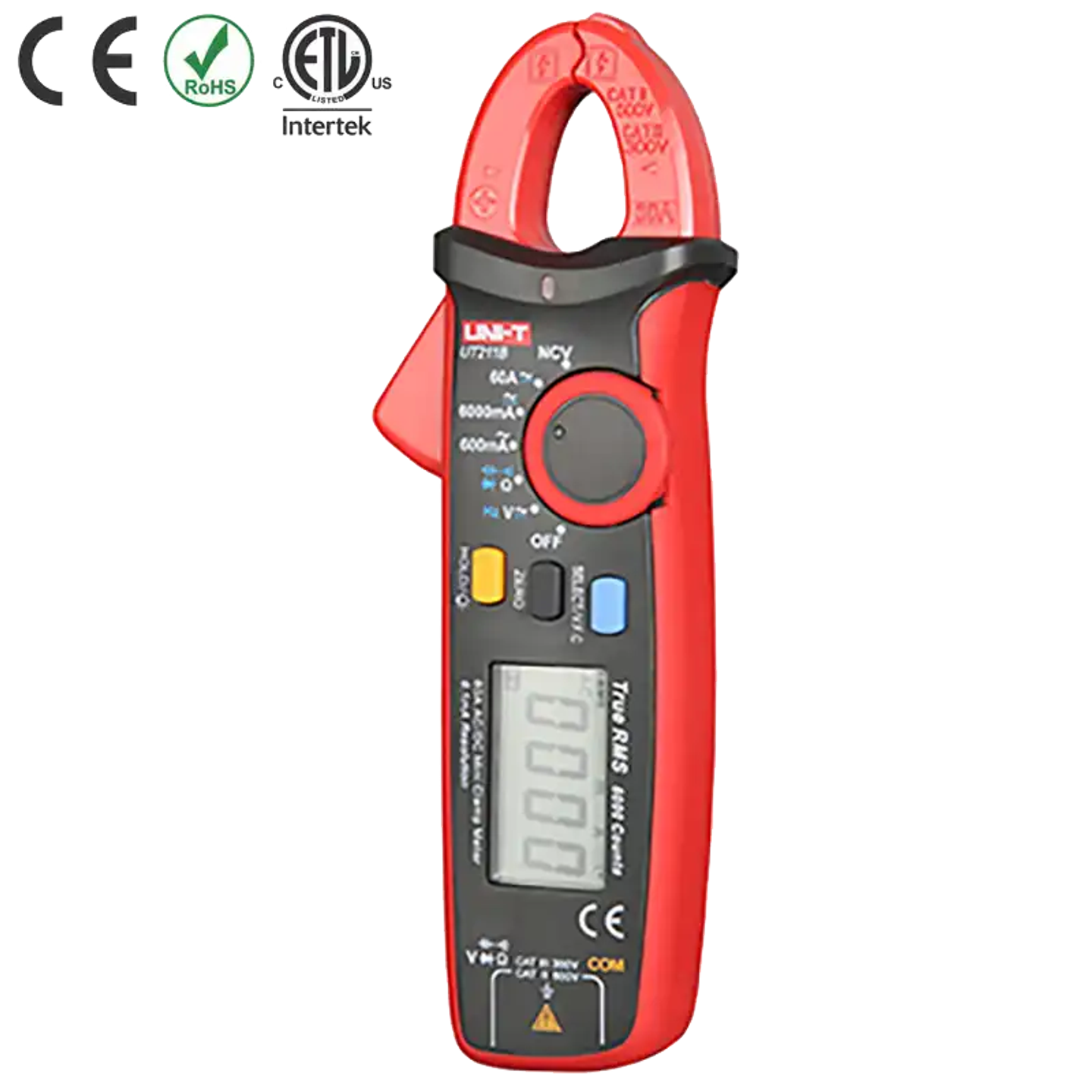

UT-211B True RMS AC/DC Digital Clamp Meter
UT-211B can measure a maximum current of 60A. It is designed to be portable and digital with a resolution of 0.1mA.
And UT-211B is very suitable for people who need high-precision and accurate results when using electronic equipment, such as solar system current load, troubleshooting of electric vehicles, etc.
It is ergonomically designed and lightweight, the best tool for working in small spaces.
CURRENT MEASUREMENT.
VOLTAGE MEASUREMENT:
Specifications
- AccuracyDC: ±(0.7%+3 value) / AC: ±(0.8%+3 value)
- Jaw OpeningØ55 mm
- AC Current60A (0.1mA resolution) ±(1.5% + 10)
- DC Current60A ±(2% + 3)
- AC Voltage600V ±(0.8% + 3)
- DC Voltage600V ±(0.7% + 3)
- Resistance60MΩ ±(0.8% + 2)
- Capacitance62mF ±(4% + 5)
- ResolutionDC: 0.1mV / AC: 0.001V
Features
- Diode TestAround 3.0V
- Auto Power OffAround 15 minutes
- Input Impedance≥10MΩ
- Display Count6000
- Auto Rangeyes
- True RMSyes
- V.F.C.yes
- NCVyes
- Data Holdyes
- Zero Modeyes
- Displayyes
- Continuityyes
- Safety Rating≤2.5V
- Input Protectionyes
Attributes
- Operating Temperature0~40°C / lower than 80%RH without dew。
- Storage Temperature10~50 °C / lower than 70%RH without dew。
- Elevation LimitationLower than 1,000 meters
- Power Supply1.5V battery (R03) x 2
- Dimensions385mm x 345mm x 305mm
- Weight170g
- AccessoryBatteries, test leads
- Product ColorRed and grey
- Standard PackingGift box, carrying bag, English manual
- Packing Quantity40pcs/carton
- Carton Gross Weight12.9kg
