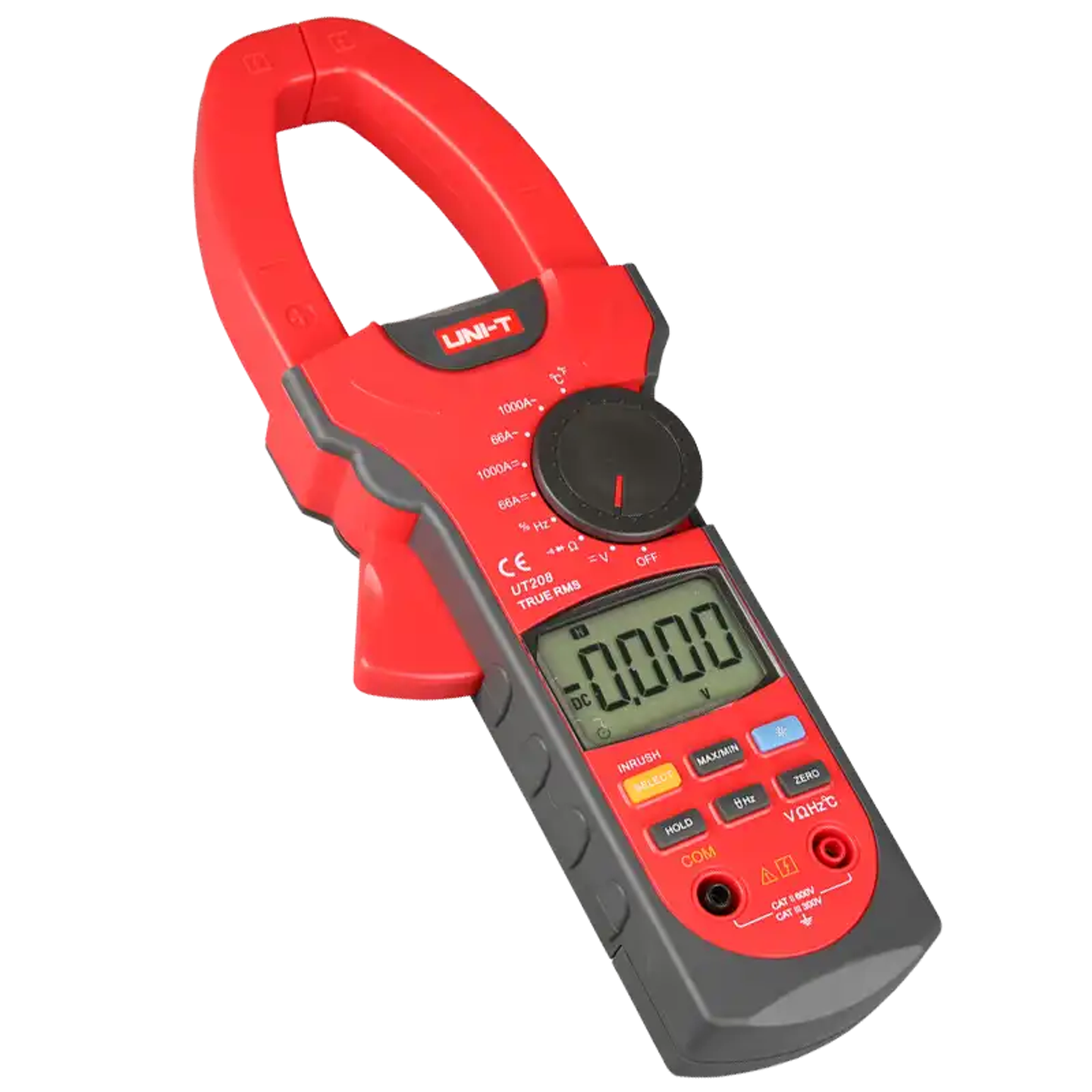

AC/DC Digital Clamp Meter
Brand
UNI-T
|
Model
UT-208
|
🇨🇳 China
• AC current measurement: 66 / 1,000 A
• DC current measurement: 66 / 1,000 A
• AC voltage range: 6.6 / 66 / 600 V
• DC voltage range: 6.6 / 66 / 600 V
• Resistance measurement range: 600 Ω to 66M Ω
• Frequency measurement range: 660 Hz to 6.6M Hz
• Temperature measurement: -40 °C to 1,000 °C
• Duty cycle range: 0.1% to 99.9%
• High resolution: DC 0.1mV / AC 0.001V
• Accuracy: DC ±(0.8%+1) / AC ±(1%+2)
Out of Stock
Views: 0
Description
The UT-208 AC/DC Digital Clamp Meter is a high-performance measuring instrument capable of measuring AC and DC current, voltage, and resistance, making it ideal for electrical engineering, maintenance, and everyday testing. With a jaw opening of Ø55 mm, it easily clamps around cables and provides a display accuracy of up to 6,600 counts for quick and precise data readings. This clamp meter also supports a temperature range from -40 °C to 1,000 °C, meeting various application needs.
Specifications
- Display Counts6,600 counts
- Jaw OpeningØ55 mm
- AC Current66 / 1,000 A
- DC Current66 / 1,000 A
- AC Voltage6.6 / 66 / 600 V
- DC Voltage6.6 / 66 / 600 V
- Resistance600 / 6.6K / 66K / 660K / 6.6M / 66M Ω
- Frequency660 / 6.6K / 66K / 660K / 6.6M / 66M Hz(MHz part for reference only)
- Duty Cycle0.1~99.9 %
- Temperature Range-40~1,000 °C (-40~1,832 °F)
- ResolutionDC: 0.1mV / AC: 0.001V
- AccuracyDC: ±(0.8%+1 counts) / AC: ±(1%+2 counts)
Features
- Input Impedance10MΩ
Attributes
- Operating Temperature0~40 °C / Below 80% RH, no condensation
- Storage Temperature10~50 °C / Below 70% RH, no condensation
- Altitude LimitBelow 1,000 m
- Power Supply9V battery (6F22)
- Dimensions286 x 105 x 45 mm
- Weight533g
- AccessoriesTest probes, temperature test leads, battery, carrying case, manual
