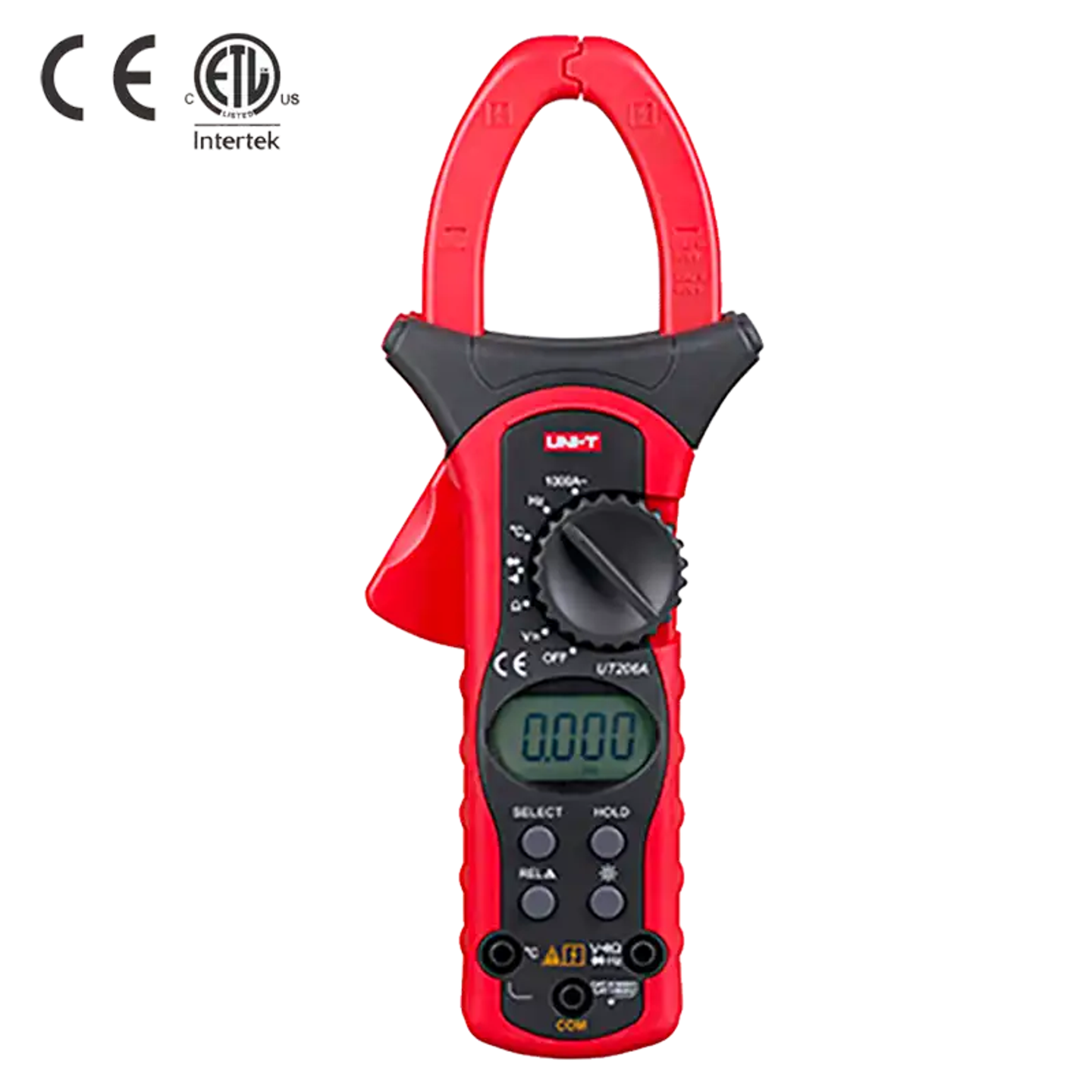

AC/DC Digital Clamp Meter
Brand
UNI-T
|
Model
UT-206A
|
🇨🇳 China
High-performance digital clamp meter for AC and DC current and voltage measurements.
Key features include:
- AC current measurement up to 1,000 A
- DC voltage measurement up to 600 V
- AC voltage measurement up to 600 V
- Resistance measurement up to 40M Ω
- Frequency measurement range: 10~10M Hz
- Temperature measurement range: -40~1,000 °C
- 4,000 counts display with high resolution
Out of Stock
Views: 0
Description
The UT-206A AC/DC Digital Clamp Meter is a high-performance measuring instrument designed for professional electricians and technicians. This clamp meter accurately measures AC and DC current, voltage, resistance, and frequency, with clear digital readings. It also supports temperature measurements, making it an ideal tool for electrical testing, maintenance, and installation. With a jaw opening of Ø40 mm, it allows for measurements in tight spaces, and features a high input impedance of up to 10MΩ, ensuring measurement accuracy and safety.
Specifications
- Display digits4,000 digits
- Jaw openingØ40 mm
- AC current1,000 A
- DC voltage600 V
- AC voltage600 V
- Resistance40M Ω
- Frequency10~10M Hz
- Temperature range-40~1,000 °C
- ResolutionDC: 0.1mV / AC: 0.001V
- AccuracyDC: ±(0.8%+1 digit) / AC: ±(1%+2 digit)
Features
- Input Impedance10MΩ
- Jaw OpeningØ40 mm
- AC Current1,000 A
- DC Voltage600 V
- AC Voltage600 V
- Resistance40M Ω
- Frequency10~10M Hz
- Temperature Range-40~1,000 °C
- Display Count4,000 digits
- ResolutionDC: 0.1mV / AC: 0.001V
Attributes
- Operating Temperature0~40°C / lower than 70%RH without dew。
- Storage Temperature10~50 °C / lower than 50%RH without dew。
- Elevation LimitationLower than 1,000 meters
- Power Supply9v battery (6F22)
- Dimensions236 x 97 x 40 mm
- Weight350g
- AccessoryTest Lead、 Temperature Sensor、 Battery 、Carrying Bag、Manual
